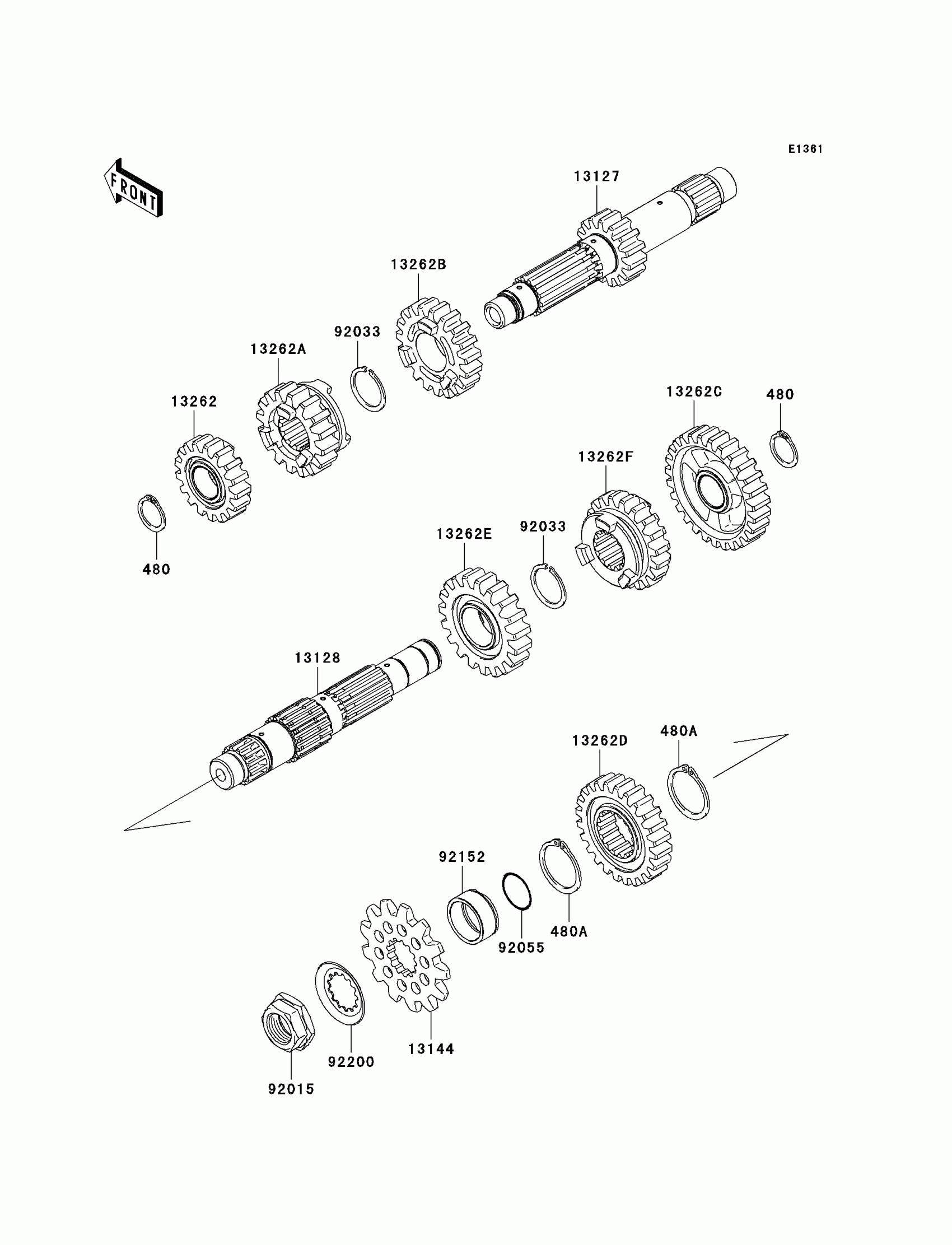

Find the part on the Transmission diagram for your 2006 Kawasaki KX450F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

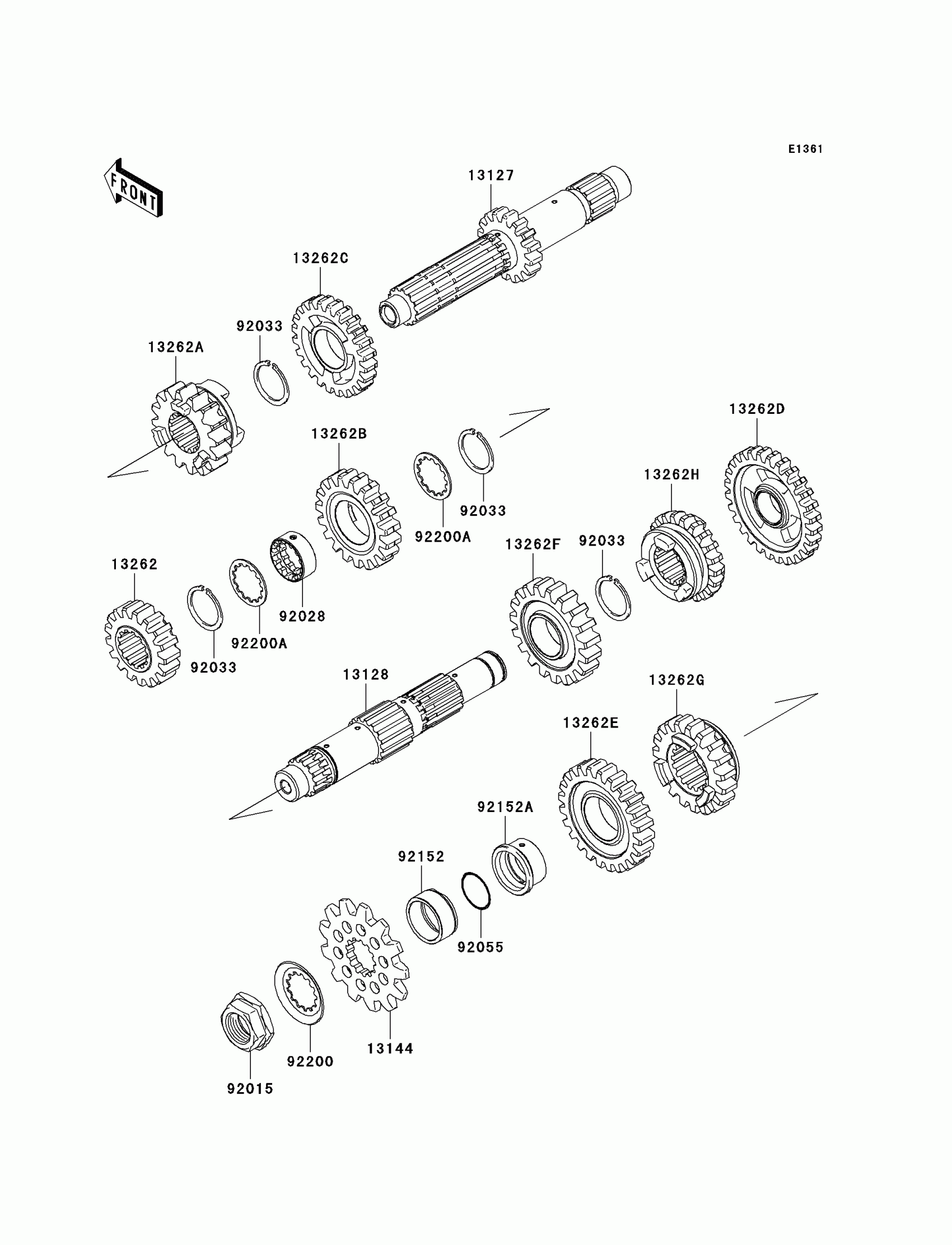

2006 Kawasaki KX450F Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

480

1

$1.14

In stock

480A

1

$4.93

In stock

13127

1

$256.87

In stock

13128

1

$189.86

In stock

13144

SPROCKET-OUTPUT,13T

13144-0017

1
Out of stock

13262

GEAR,INPUT 2ND,17T

13262-0255

1
Out of stock

13262A

GEAR,INPUT 3RD,16T

13262-0256

1
Out of stock

13262B

GEAR,INPUT 4TH,19T

13262-0257

1
Out of stock

13262C

GEAR,OUTPUT LOW,27T

13262-0258

1
Out of stock

13262D

GEAR,OUTPUT 2ND,24T

13262-0259

1
Out of stock

13262E

GEAR,OUTPUT 3RD,19T

13262-0260

1
Out of stock

13262F

GEAR,OUTPUT 4TH,19T

13262-0261

1
Out of stock

92015

NUT,20MM

92015-1963

1

$11.79

In stock

92033

RING-SNAP,25MM

92033-1172

1

$4.01

In stock

92055

RING-O,21.5X1.5

92055-1293

1

$3.97

In stock

92152

COLLAR,25X30X13.2

92152-0150

1

$24.25

In stock

92200

WASHER

92200-1065

1
Out of stock
