2006 Kawasaki KX450F Gear Change Mechanism Diagram

← All diagrams

Find the part on the Gear Change Mechanism diagram for your 2006 Kawasaki KX450F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

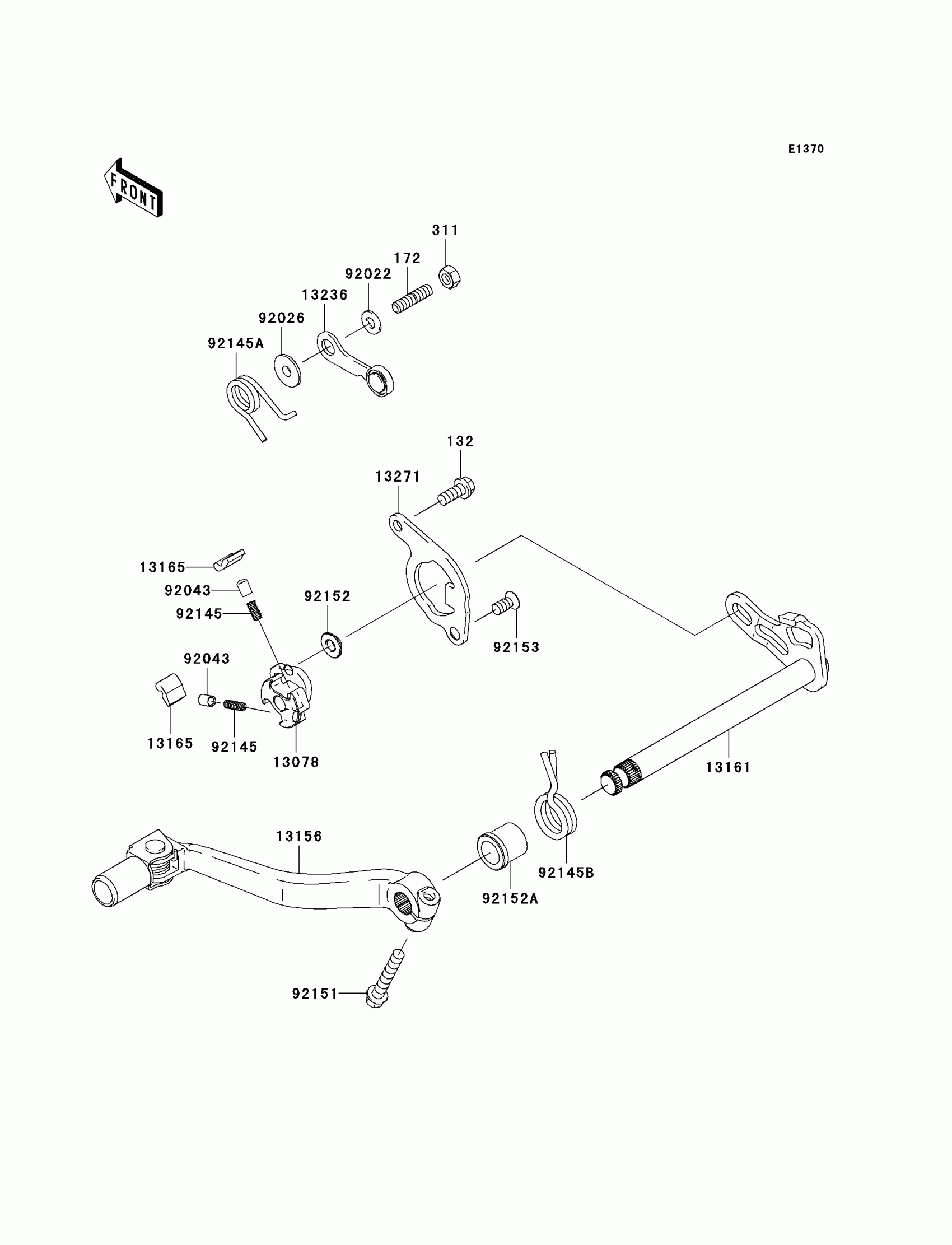

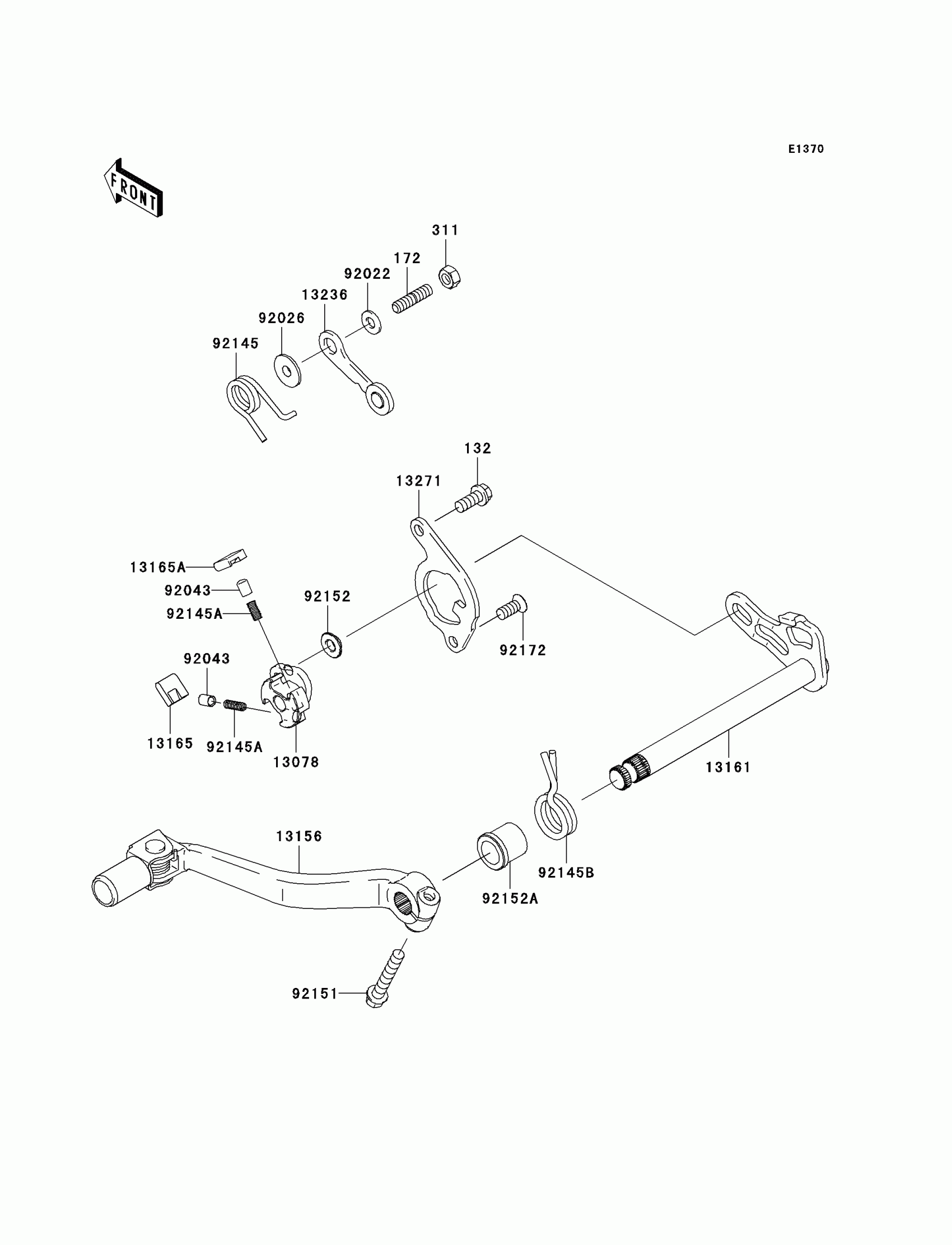

2006 Kawasaki KX450F Gear Change Mechanism Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL

132G0614

1
Out of stock

172

BOLT-STUD,6X12

172G0612

1
Out of stock

311

NUT-HEX,6MM

311G0600

1
Out of stock

13078

RATCHET

13078-0006

1
Out of stock

13156

LEVER-CHANGE,PEDAL

13156-0067

1
Out of stock

13161

LEVER-COMP-CHANGE SHAFT

13161-0031

1
Out of stock

13165

PAWL

13165-0009

1
Out of stock

13165A

PAWL

13165-0010

1
Out of stock

13236

LEVER-COMP,POSITION

13236-0102

1
Out of stock

13271

PLATE,PAWL GUIDE

13271-0248

1
Out of stock

92022

WASHER,6X12.8X1.2

92022-1827

1
Out of stock

92026

SPACER

92026-1217

1
Out of stock

92043

PIN,PLUNGER

92043-1676

1
Out of stock

92145

SPRING

92145-0374

1
Out of stock

92145A

SPRING

92145-1490

1
Out of stock

92145B

SPRING,RETURN

92145-1493

1
Out of stock

92151

BOLT,FLANGED-SMALL,6X25

92151-1930

1
Out of stock

92152

COLLAR

92152-1414

1
Out of stock

92152A

COLLAR,RETURN SPRING

92152-1419

1
Out of stock

92172

SCREW,6X14

92172-0110

1
Out of stock
