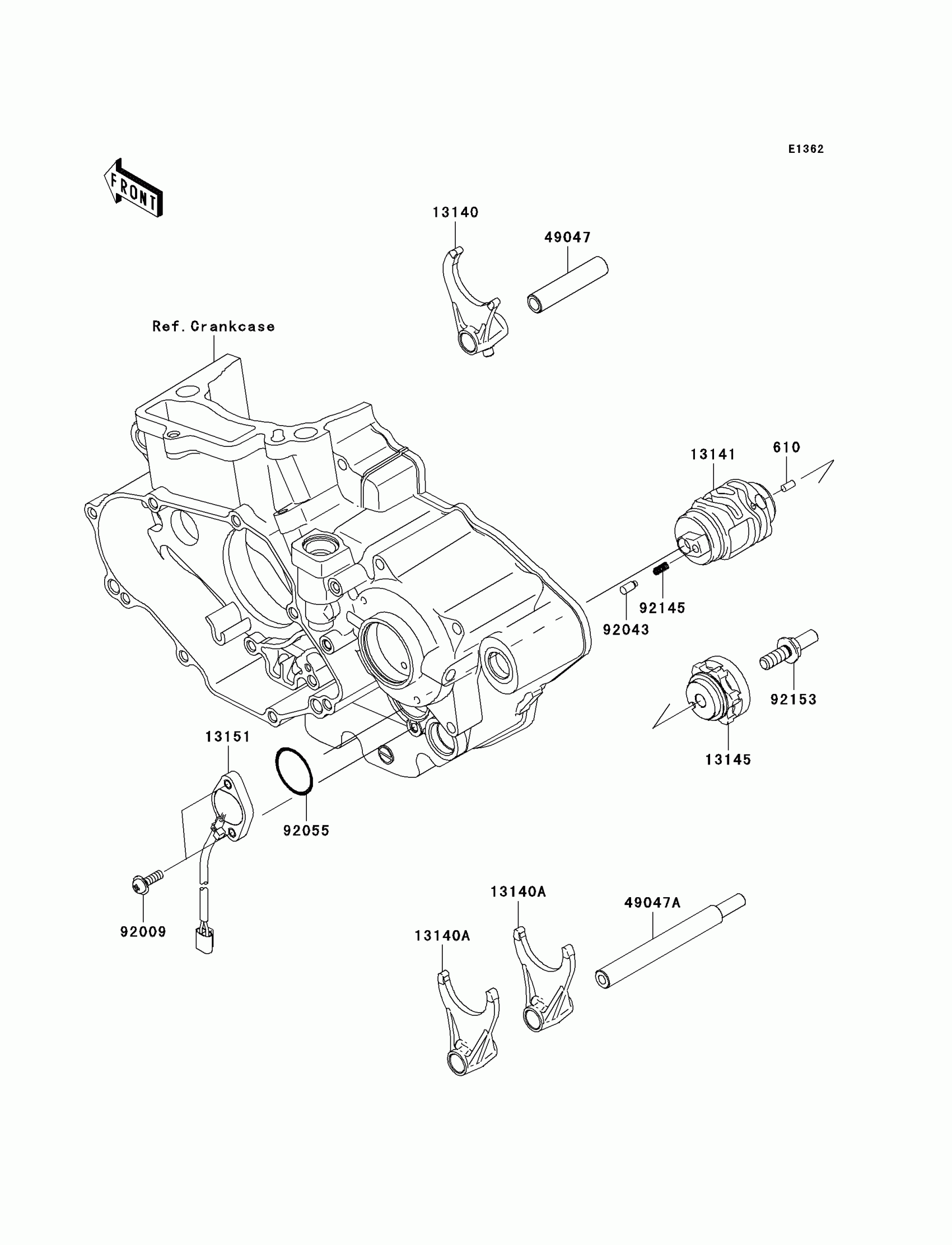

Kawasaki KX450F Gear Change Drum/Shift Fork(s) Diagram

Description

Price

610

ROLLER,4X8

610A0408

$3.29

13140

FORK-SHIFT,IN

13140-0020

$106.89

13140A

FORK-SHIFT,OUT

13140-0021

$106.89

13141

DRUM-CHANGE

13141-0017

$124.52

13145

CAM-CHANGE DRUM

13145-0022

$71.15

13151

SWITCH-COMP,NEUTRAL

13151-0008

Unavailable

49047

ROD-SHIFT,IN

49047-0017

$15.78

49047A

ROD-SHIFT,OUT

49047-0018

$35.90

92009

SCREW,PAN-WP-CROS,5X20

92009-1905

$1.35

92043

92043-1654

$2.84

92055

RING-O,27.7X2.4

92055-091

$4.67

92145

SPRING

92145-1414

$3.03

92153

BOLT,8X20

92153-0530

$5.39
