1974 Kawasaki KX450 Engine Covers Diagram

← All diagrams

Find the part on the Engine Covers diagram for your 1974 Kawasaki KX450, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

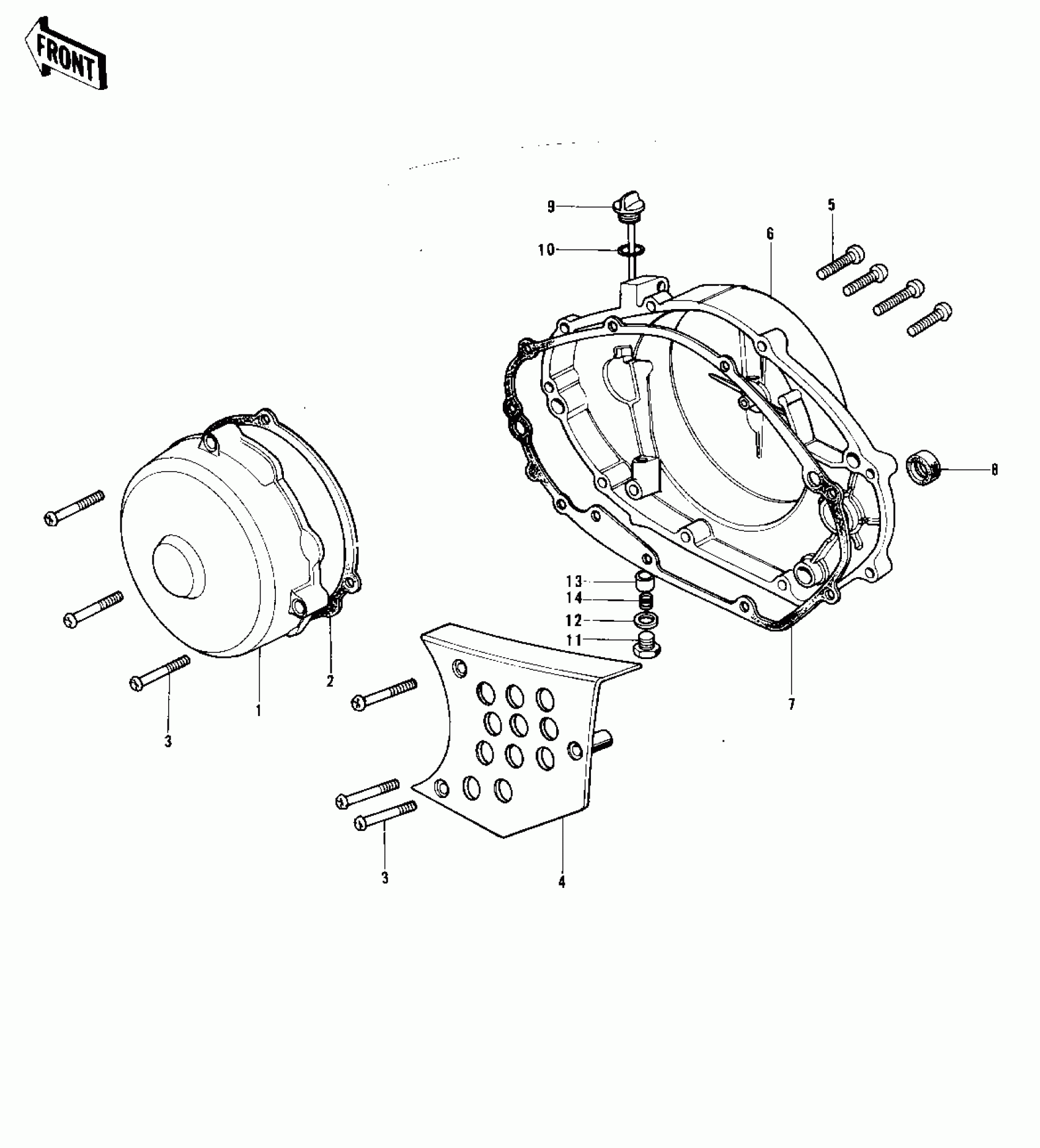

1974 Kawasaki KX450 Engine Covers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER,L.H ENGINE

14031-065

1
Out of stock

2

GASKET,L.H ENG COVER

14045-016

1
Out of stock

3

SCREW PAN HEAD 6X50

220B0650

1
Out of stock

4

COVER,FRONT CHAIN

14026-017

1
Out of stock

5

SCREW PAN HEAD 6X30

220B0630

1
Out of stock

6

COVER,R.H ENGINE

14032-087

1
Out of stock

7

1

$15.90

In stock

8

SEAL-OIL,SB20285

92049-012

1
Out of stock

9

PLUG,OIL FILLER

16115-019

1
Out of stock

10

O RING,20MM

670B2020

1
Out of stock

11

PLUG,OIL DRAIN

92067-014

1
Out of stock

12

GASKET,DRAIN PLUG

92065-088

1
Out of stock

13

BUSHING

92028-133

1
Out of stock

14

SPRING

92081-118

1
Out of stock
