1974 Kawasaki KX450 Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1974 Kawasaki KX450, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

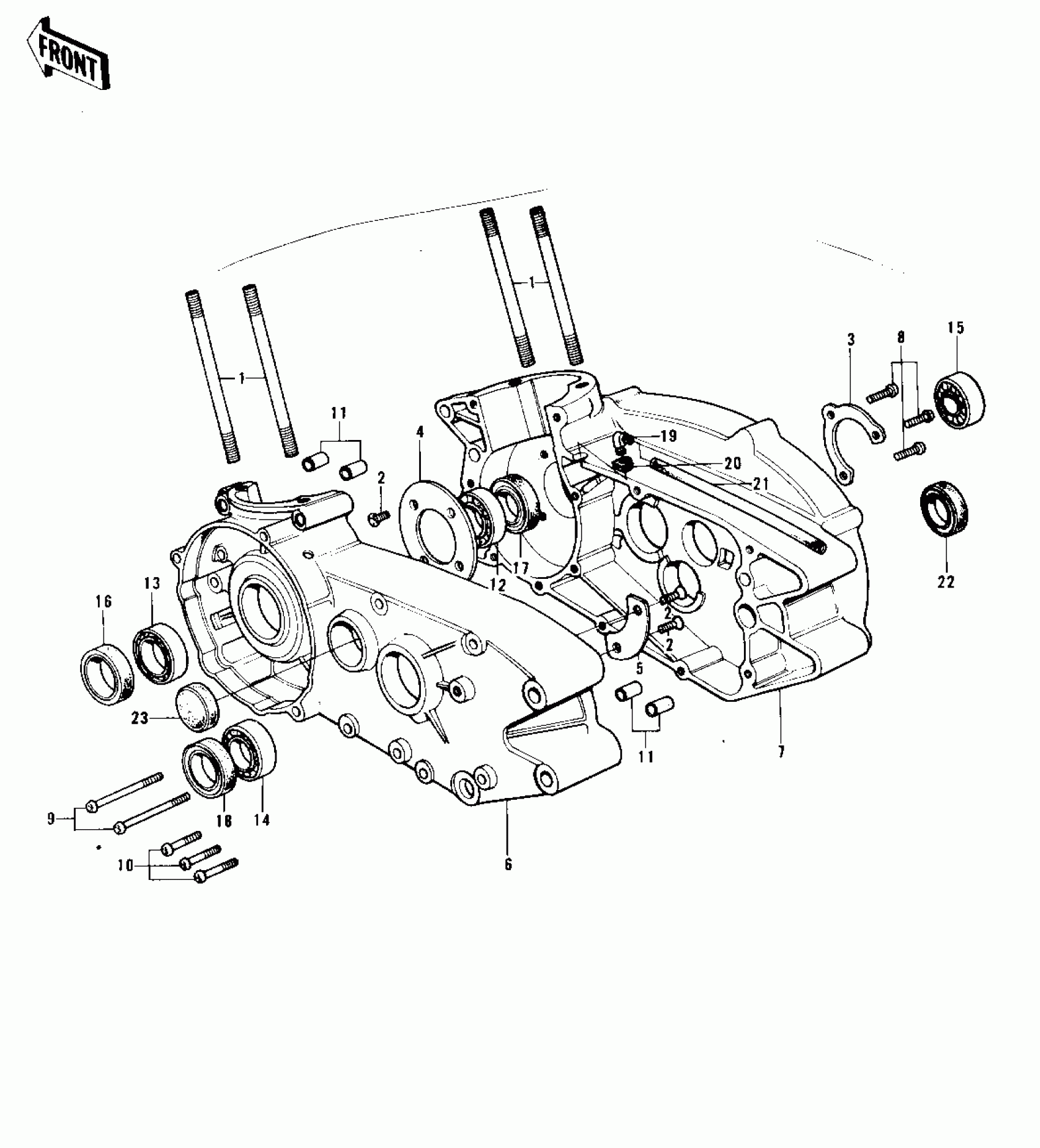

1974 Kawasaki KX450 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STUD 10X90

172G1090

1

$8.49

In stock

2

SCREW-CSK-CROS,6X14

221B0614

1
Out of stock

3

PLATE

14014-025

1
Out of stock

4

PLATE

14014-026

1
Out of stock

5

PLATE

14014-027

1
Out of stock

6

CRANKCASE,L.H

14002-094

1
Out of stock

7

CRANKCASE,R.H

14003-067

1
Out of stock

8

1

$1.32

In stock

9

1

$1.19

In stock

10

SCREW PAN HEAD 6X70

220B0670

1
Out of stock

11

PIN,DOWEL,10X14

92043-1037

1

$0.76

In stock

12

BEARING-BALL

92045-016

1
Out of stock

13

BEARING-BALL,#6306

92045-037

1

$43.48

In stock

14

1

$15.38

In stock

15

1

$37.55

In stock

16

SEAL-OIL

92050-057

1
Out of stock

17

OIL SEAL,TB35508

653B355008

1
Out of stock

18

SEAL-OIL,TB3040

92050-033

1
Out of stock

19

BREATHER ASSY

14069-1001

1

$22.77

In stock

20

GROMMET,BREATHER

92071-042

1

$3.39

In stock

21

PIPE-BREATHER

92059-061

1
Out of stock

22

BUSHING,26X35X14

92028-131

1

$34.76

In stock

23

CAP,L.H.CRANKCASE

92073-024

1
Out of stock
