1974 Kawasaki KX450 Cables Diagram

← All diagrams

Find the part on the Cables diagram for your 1974 Kawasaki KX450, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

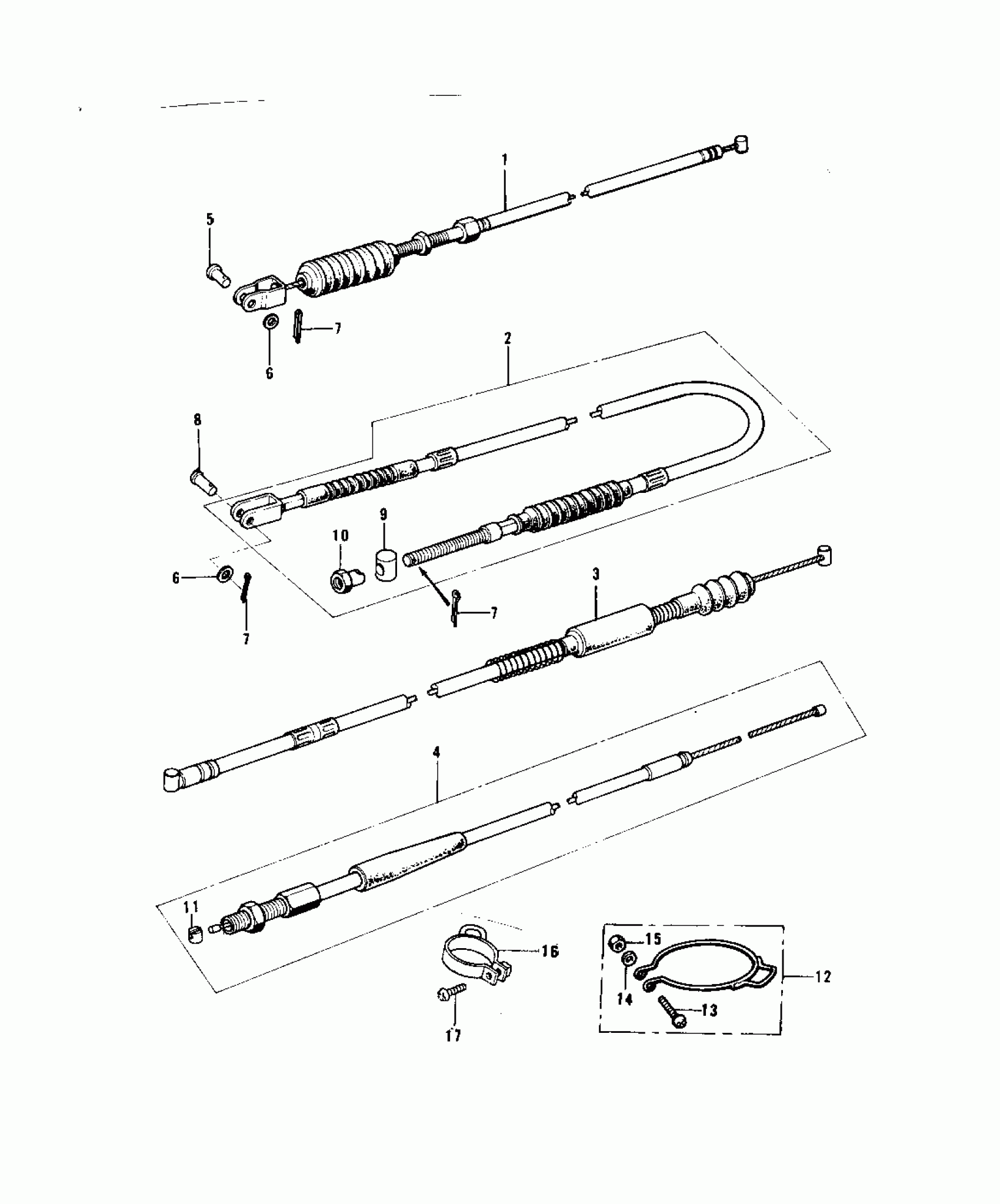

1974 Kawasaki KX450 Cables Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CABLE,FRONT BRAKE

54005-076

1
Out of stock

2

CABLE,REAR BRAKE

54022-023

1
Out of stock

3

CABLE,CLUTCH

54011-066

1
Out of stock

4

CABLE,THROTTLE

54012-106

1
Out of stock

5

PIN,6X17

92043-064

1
Out of stock

6

WASHER-PLAIN-SMALL,6MM

410B0600

1
Out of stock

7

PIN-COTTER,1.6X15

550D1615

1
Out of stock

8

PIN R BRK CABLE JOINT

92043-034

1
Out of stock

9

PIN,BRAKE ROD

92043-065

1
Out of stock

10

NUT,BRAKE ROD

92015-042

1
Out of stock

11

PIECE,THROTTLE CABLE

54013-001

1
Out of stock

12

GUIDE,CABLE

54030-010

1

$5.80

In stock

13

SCREW PAN HEAD 5X22

220B0522

1
Out of stock

14

WASHER-PLAIN,5MM

411B0500

1
Out of stock

15

NUT-HEX

311B0500

1
Out of stock

16

CLAMP,FRONT BRK CABLE

92037-196

1
Out of stock

17

SCREW-PAN-CROS,6X20,WHITE

220B0620

1
Out of stock
