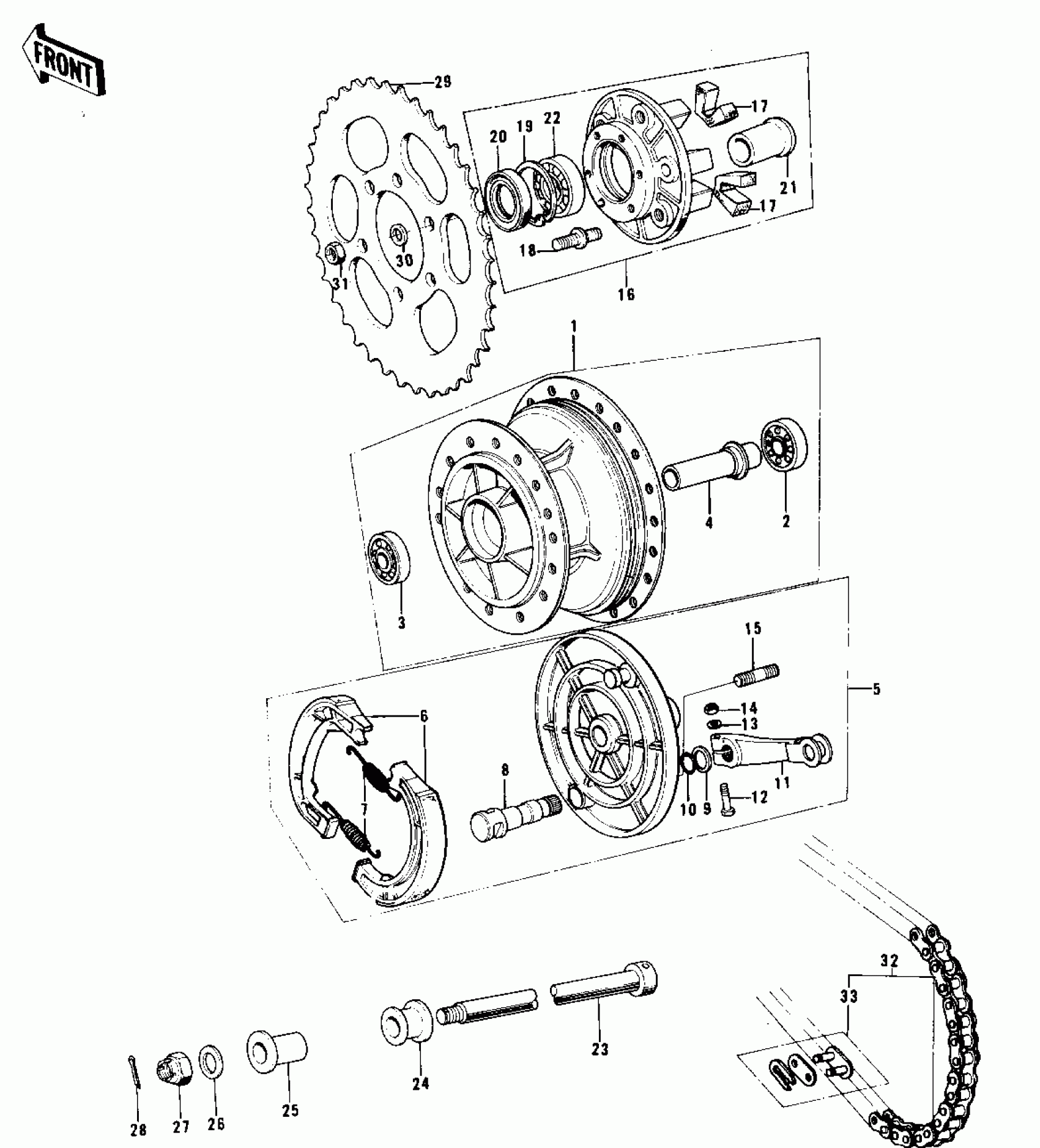

Kawasaki KX450 REAR HUB/BRAKE/CHAIN ('74 KX 450) Diagram

#

Description
Price

1

DRUM ASSY,REAR BRAKE

42005-043

$344.57

2

BEARING,BALL, #6202

92045-027

$11.90

3

BEARING,BALL, #6302

92045-028

$8.59

4

COLLAR,REAR HUB BRNG

42010-024

$21.98

5

PANEL-ASY,RR BRK

42006-051

$289.13

6

SHOE,BRAKE

42019-011

$38.11

7

SPRING,BRAKE SHOE

42020-004

$6.48

8

CAM SHAFT,BRAKE CAM

42026-013

$48.85

9

WASHER

92022-258

Unavailable

10

O RING,15MM

670B2015

$1.08

11

LEVER,REAR BRAKE CAM

42029-037

Unavailable

12

BOLT-UPSET,6X40

112G0640

Unavailable

12

BOLT-UPSET,6X40

112G0640

Unavailable

13

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

14

NUT 6MM

311B0600

Unavailable

15

STUD,10X18

92006-004

$4.58

16

COUPLING ASSY,RR BRK

42008-025

$173.87

17

SHOCK DAMPER

42014-022

$13.34

18

STUD,8MM,10MM

92006-005

$5.24

19

RING-SNAP,47MM

92033-1042

$3.22

20

DUST SHIELD,RR BRK

42027-004

$18.32

21

SLEEVE,COUPLING

42036-022

$23.73

22

BEARING,BALL

92045-032

$13.22

23

AXLE,REAR

42031-048

$38.86

24

COLLAR,R.H RR.AXLE

42032-051

Unavailable

25

COLLAR,RR AXLE L.H

42032-054

$11.86

26

WASHER

92022-260

$9.14

27

NUT,CASTLE,14MM

92103-006

$24.24

28

PIN-COTTER,3.0X25

550D3025

Unavailable

29

REAR SPROCKET,43T

42041-129

$146.81

30

WASHER PLAIN 8MM

410B0800

Unavailable

31

NUT,8MM

92019-018

Unavailable

32

DR CHAIN 520X102

92057-023

$79.23

33

92058-1051 (Canada)

92058-020

$10.37
