1974 Kawasaki KX450 Front Fork Diagram

← All diagrams

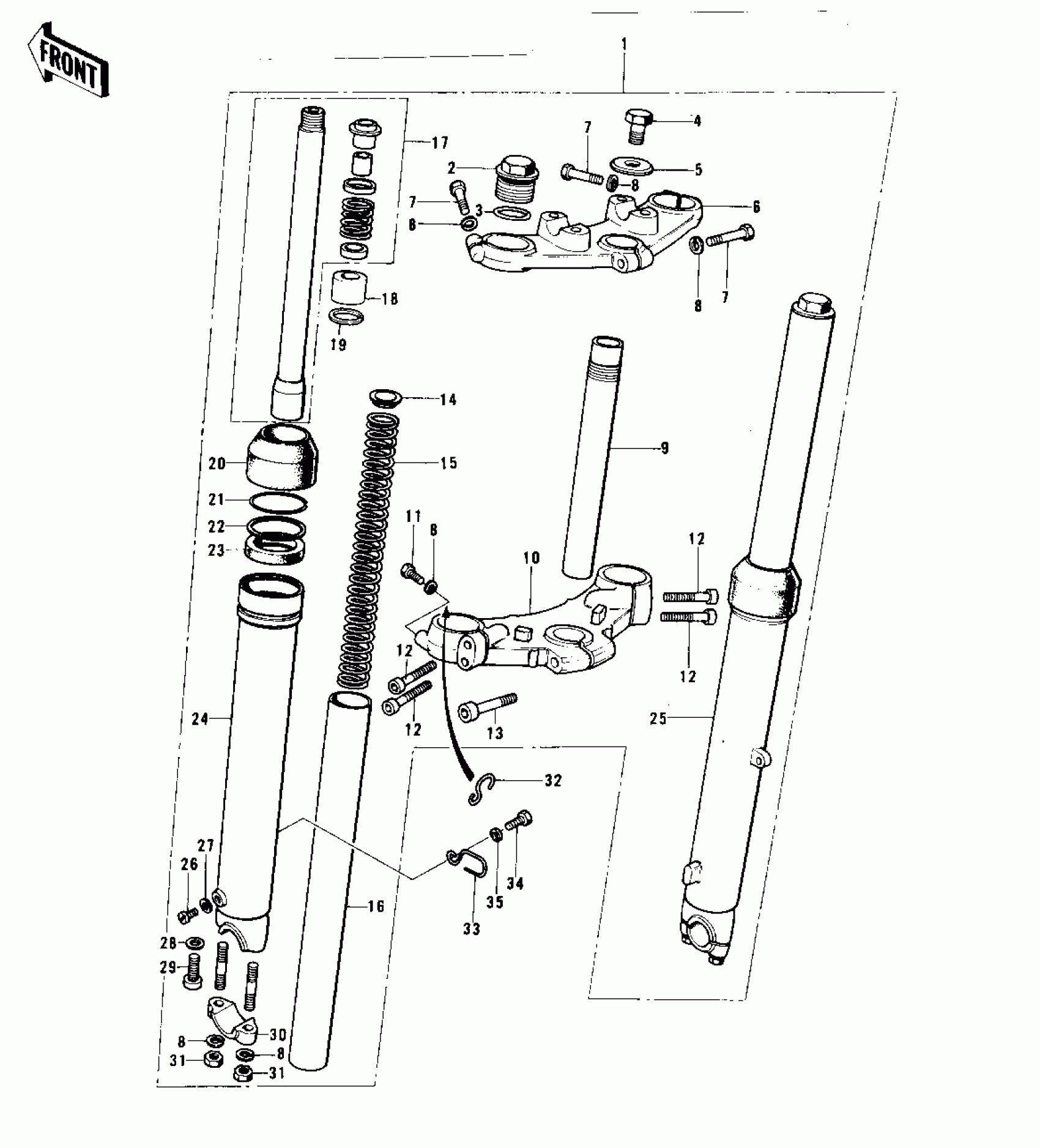

Find the part on the Front Fork diagram for your 1974 Kawasaki KX450, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Kawasaki KX450 Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FORK-FRONT

44001-138

1
Out of stock

2

BOLT-FORK FITTING

44041-037

1
Out of stock

3

RING-O,FORK TOP

92055-1012

1
Out of stock

4

BOLT,FORK TOP

44041-065

1
Out of stock

5

WASHER,FORK TOP BOLT

44043-055

1
Out of stock

6

HEAD,STEERING STEM

44039-059

1
Out of stock

7

BOLT-HEX HEAD.8M/M

44041-045

1
Out of stock

8

WASHER SPRING 8MM

461F0800

1
Out of stock

9

SHAFT,STEERING STEM

44052-009

1
Out of stock

10

STEM,STEERING

44038-007

1
Out of stock

11

BOLT,HEX HEAD,8MM

44041-076

1
Out of stock

12

BOLT

44041-061

1
Out of stock

13

BOLT-STEERING STEM

44041-043

1
Out of stock

14

GUIDE,FORK SPRING

44028-032

1
Out of stock

15

SPRING,FORK

44026-056

1
Out of stock

16

TUBE,FORK INNER

44013-048

1
Out of stock

17

CYLINDER-FORK

44022-022

1
Out of stock

18

PISTON,FORK

44018-009

1
Out of stock

19

CIRCLIP,FORK PISTON

44044-019

1
Out of stock

20

DUST SHIELD-FORK

44010-019

1
Out of stock

21

CIRCLIP OIL SEAL FIT

44044-005

1
Out of stock

22

WASHER OIL SEAL FIT

44043-023

1
Out of stock

23

OIL SEAL,FORK

44009-020

1
Out of stock

23

OIL SEAL,FORK

44009-020

1
Out of stock

24

TUBE,LH,FORK OUTER

44005-056

1
Out of stock

25

TUBE,RH,FORK OUTER

44006-054

1
Out of stock

26

SCREW

44041-062

1
Out of stock

27

GASKET

44045-045

1
Out of stock

28

GASKET

44045-057

1
Out of stock

29

BOLT,SOCKET,FORK CYLINDER

44041-040

1
Out of stock

30

HOLDER,FRONT AXLE

44063-008

1
Out of stock

31

NUT,8MM

311B0800

1
Out of stock

32

CLAMP,CABLE

92037-126

1
Out of stock

33

CLAMP,CABLE

92037-127

1
Out of stock

34

BOLT-UPSET,6X12

112G0612

1
Out of stock

35

WASHER SPRING 6MM

461F0600

1
Out of stock
