Find the part on the Wheels/tires diagram for your 1976 Kawasaki KX400-A2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

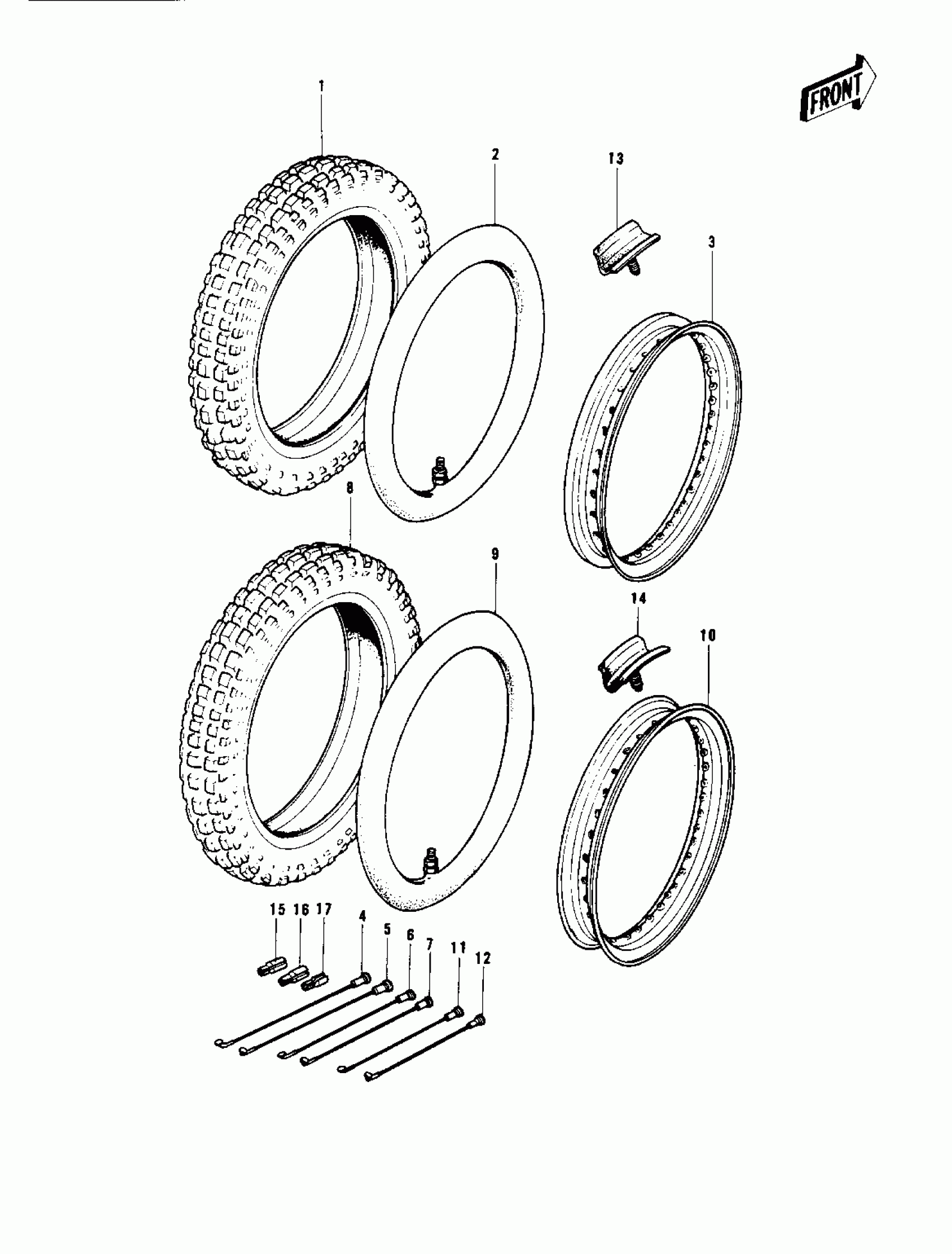

1976 Kawasaki KX400-A2 Wheels/tires Diagram

#

Description
Price
Status
Order Qty

1

TIRE 300-21 DUN MX

41017-012

Out of stock

2

TUBE,2.75/3.70-21

41022-1021

$51.02

In stock

3

RIM 1,60A-21E

41025-083

$199.03

In stock

4

SPOKE-ASY,FR INNER

41027-078

$6.49

In stock

5

SPOKE-ASY,FR INNER

41027-079

Out of stock

6

SPOKE-ASY FR OUTER

41028-077

Out of stock

7

SPOKE-ASY,RR OUTER

41028-079

$2.20

In stock

8

TIRE 460-18 DUN MX

41017-013

Out of stock

9

$51.02

In stock

10

RIM,2.15BX18E

41025-084

$199.03

In stock

11

SPOKE-ASY,RR INNER

41027-080

Out of stock

12

SPOKE-ASY,RR OUTER

41028-078

Out of stock

13

$52.75

In stock

14

$60.31

In stock

15

BALANCER-WHEEL,10G

41075-1007

$10.02

In stock

15

BALANCER-WHEEL,10G

41075-1007

$10.02

In stock

16

BALANCER-WHEEL,20G

41075-1008

$10.02

In stock

16

BALANCER-WHEEL,20G

41075-1008

$10.02

In stock

17

BALANCER-WHEEL,30G

41075-1009

$10.02

In stock

17

BALANCER-WHEEL,30G

41075-1009

$10.02

In stock
