1976 Kawasaki KX400-A2 Cables Diagram

← All diagrams

Find the part on the Cables diagram for your 1976 Kawasaki KX400-A2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

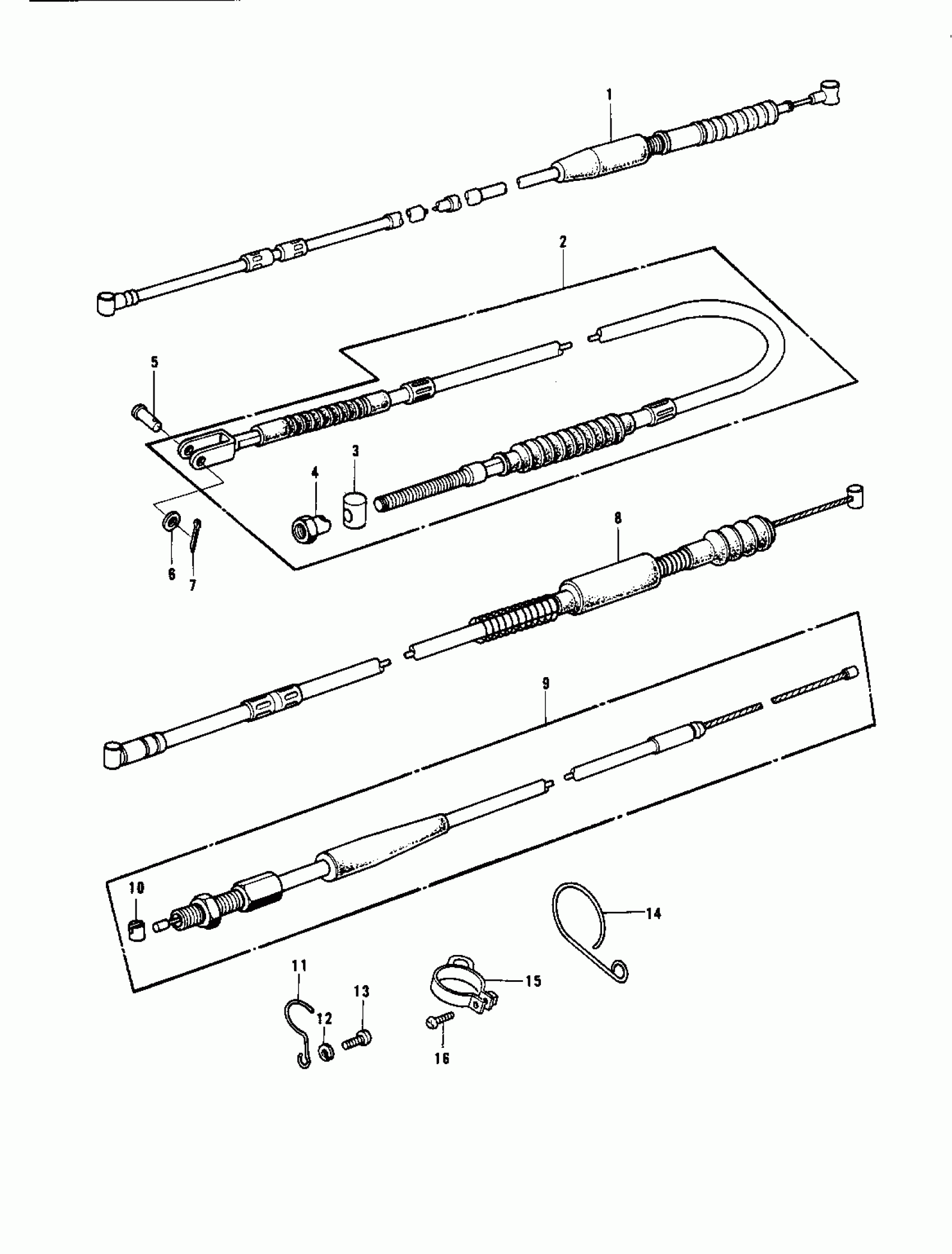

1976 Kawasaki KX400-A2 Cables Diagram

#

Description
Price
Status
Order Qty

1

CABLE,FRONT BRAKE

54005-084

Out of stock

2

CABLE,REAR BRAKE

54022-029

Out of stock

3

PIN,BRAKE ROD

92043-065

$4.42

In stock

4

NUT,BRAKE ROD

92015-042

Out of stock

5

PIN R BRK CABLE JOINT

92043-034

Out of stock

6

WASHER PLAIN 6MM

411B0600

Out of stock

7

$2.08

In stock

7

PIN COTTER 2.0X15

550D2015

Out of stock

8

CABLE,CLUTCH

54011-063

Out of stock

9

CABLE,CONTROL

54012-126

Out of stock

10

PIECE,THROTTLE CABLE

54013-001

Out of stock

11

CLAMP,CABLE

92037-092

$7.72

In stock

12

WASHER SPRING 6MM

461F0600

Out of stock

13

SCREW PAN HEAD 6X12

220B0612

Out of stock

14

CLAMP,CABLE

92037-159

Out of stock

15

CLAMP,FRONT BRK CABLE

92037-196

Out of stock

16

$4.61

In stock
