1976 Kawasaki KX400-A2 Ignition Diagram

← All diagrams

Find the part on the Ignition diagram for your 1976 Kawasaki KX400-A2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

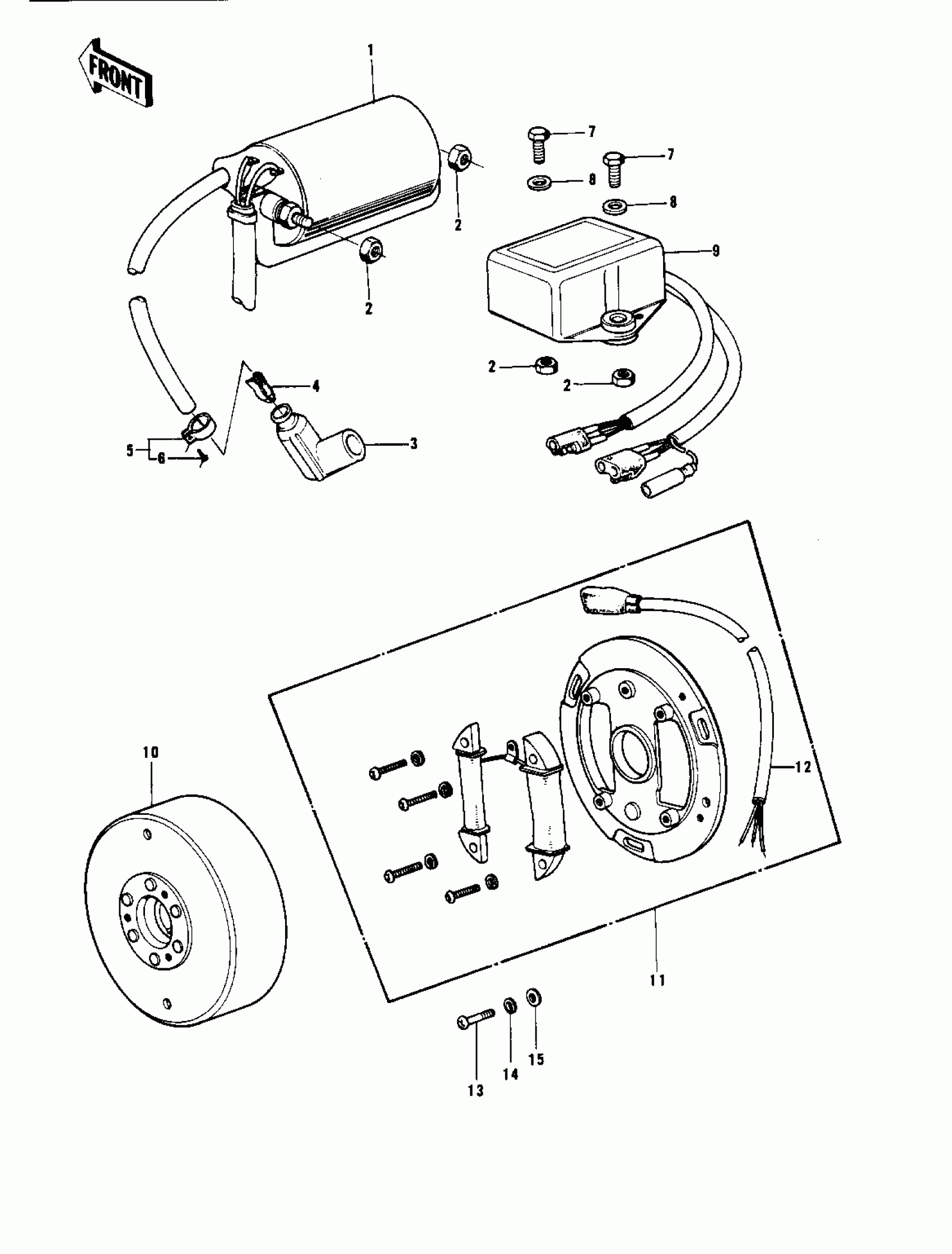

1976 Kawasaki KX400-A2 Ignition Diagram

#

Description
Price
Status
Order Qty

1

COIL,IGNITION

21121-070

Out of stock

2

NUT,6MM

92019-019

Out of stock

3

CAP-SPARK PLUG

21130-1006

Out of stock

3

CAP-SPARK PLUG

21130-1006

Out of stock

4

TERMINAL,PLUG CAP

21169-001

Out of stock

5

CLAMP

92037-1173

$2.92

In stock

5

CLAMP

92037-1173

$2.92

In stock

6

SCREW-PAN-CROS

220B0310

$3.44

In stock

7

BOLT-UPSET

112G0618

Out of stock

8

WASHER PLAIN

92022-024

$2.92

In stock

9

IGNITION UNIT

21119-022

$314.59

In stock

10

FLYWHEEL,MAGNETO

21050-019

$271.81

In stock

11

$266.21

In stock

12

$37.05

In stock

13

UNAVAILABLE IN PRICE BOOK

214B0516A

Out of stock

14

WASHER SPRING 5MM

461F0500

Out of stock

15

WASHER-PLAIN,5MM

411B0500

Out of stock
