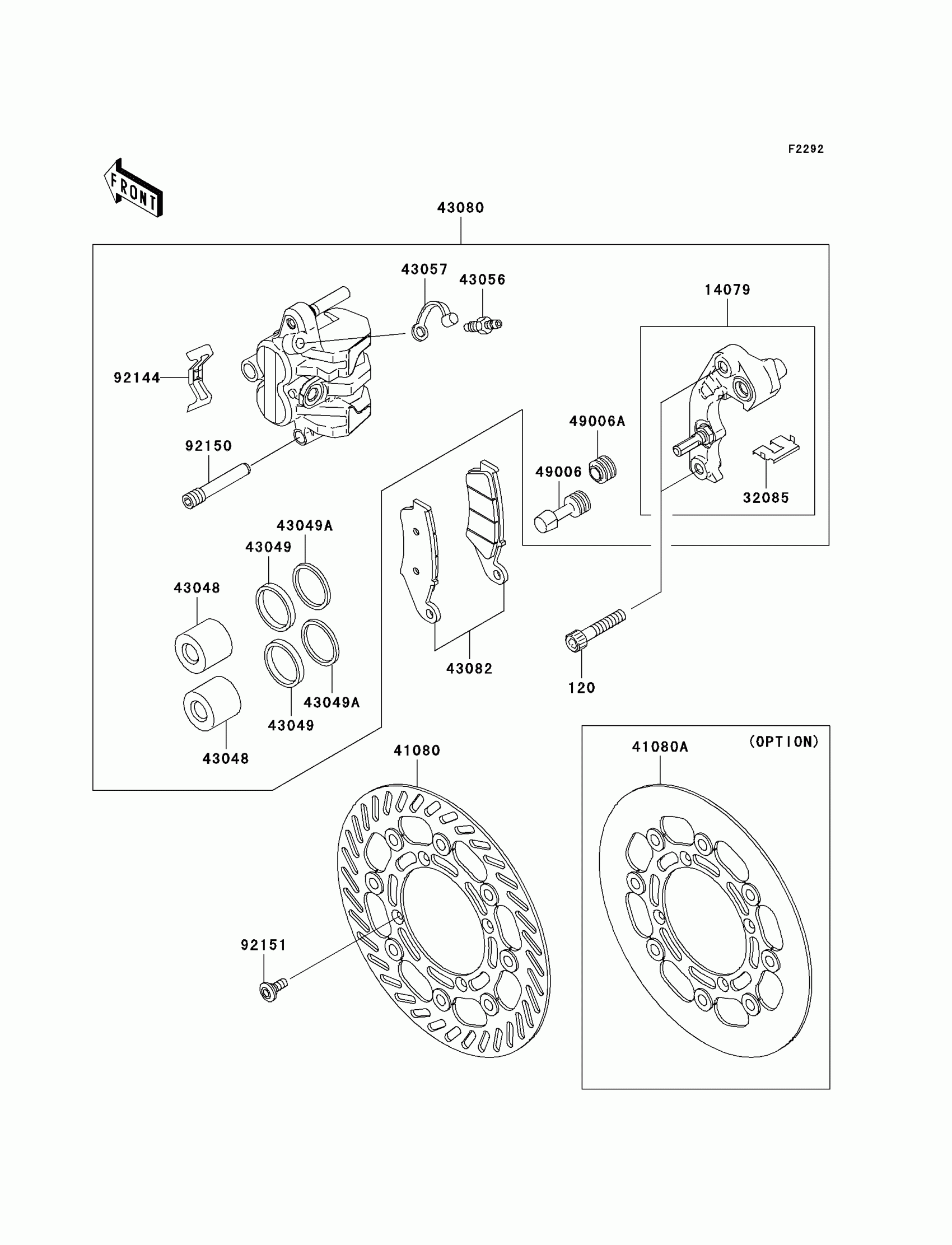

Kawasaki KX250F Front Brake Diagram

Description

Price

120

BOLT-SOCKET,8X40

120P0840

Unavailable

14079

HOLDER-ASSY,FRONT CALIPER

14079-1097

$170.00

32085

STOPPER,PAD

32085-1361

$6.08

41080

DISC,FR

41080-1516

$269.46

41080A

DISC,FR

41080-1517

$285.59

43048

PISTON-CALIPER

43048-1095

$35.95

43049

PACKING,PISTON SEAL

43049-1060

$14.67

43049A

PACKING,PISTON SEAL

43049-1061

$8.04

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$3.73

43080

CALIPER-SUB-ASSY,FR,LH

43080-0006

$315.35

43082

PAD-ASSY-BRAKE

43082-1286

$59.58

49006

BOOT,CALIPER

49006-1088

$8.83

49006A

BOOT,CALIPER

49006-1242

$4.14

92144

SPRING,PAD

92144-1721

$7.48

92150

BOLT,HANGER

92150-1691

$9.12

92151

BOLT,DISC PLATE,6MM

92151-1799

$3.15
