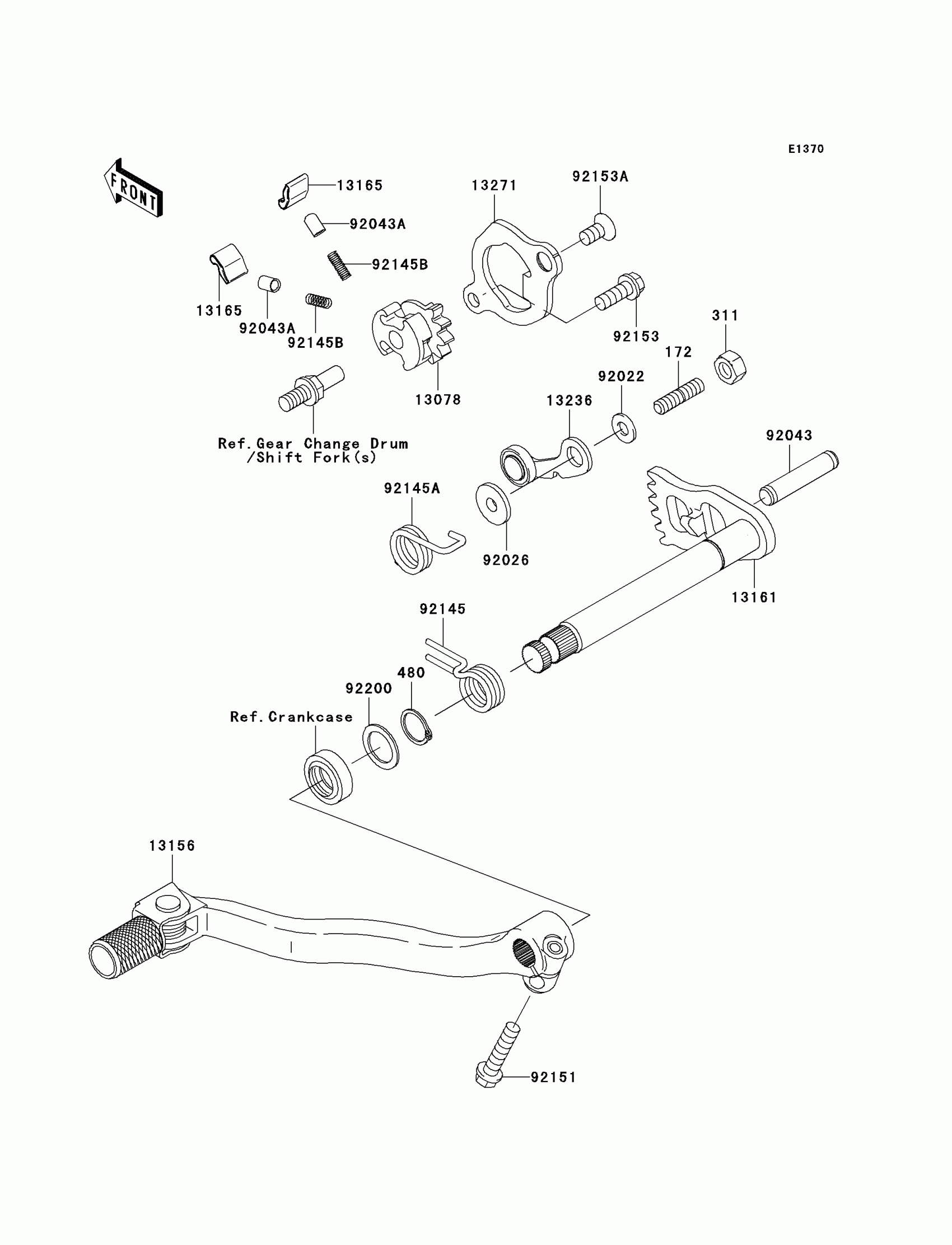

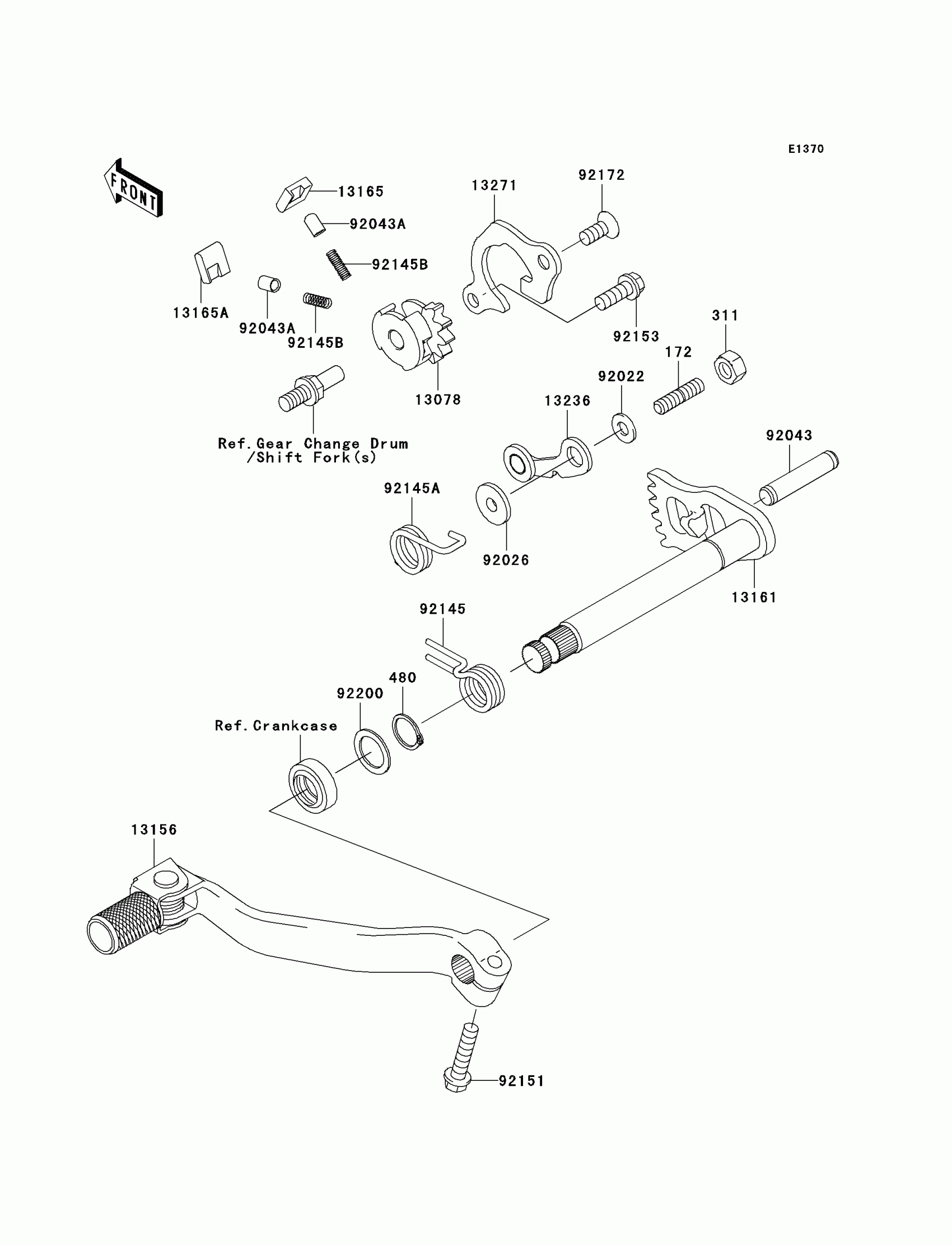

Kawasaki KX250F Gear Change Mechanism Diagram

Description

Price

172

BOLT-STUD,6X12

172G0612

Unavailable

311

NUT-HEX,6MM

311G0600

Unavailable

480

CIRCLIP-TYPE-C,14MM

480J1400

$3.81

13078

RATCHET

13078-0003

$78.00

13156

LEVER-CHANGE,PEDAL

13156-0030

$125.80

13161

LEVER-COMP-CHANGE SHAFT

13161-0016

Unavailable

13165

PAWL

13165-1162

Unavailable

13165A

PAWL

13165-1163

$15.03

13236

LEVER-COMP,POSITION

13236-0041

$10.80

13271

PLATE,PAWL GUIDE

13271-0061

Unavailable

92022

WASHER,6X12.8X1.2

92022-1827

$3.57

92026

SPACER

92026-1217

$4.18

92043

PIN,8X39

92043-0017

$8.64

92043A

PIN,PLUNGER

92043-1676

$6.65

92145

SPRING,RETURN

92145-0052

$13.47

92145A

SPRING,POSITION

92145-0154

$14.54

92145B

SPRING

92145-1490

$2.52

92151

BOLT,6X25

92151-1130

$1.98

92153

BOLT,6X16

92153-0825

$2.15

92172

SCREW,6X14

92172-0110

$2.29

92200

WASHER,14.2X20X1

92200-0029

$2.68
