2004 Kawasaki KX250F Gear Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Gear Change Drum/shift Fork diagram for your 2004 Kawasaki KX250F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

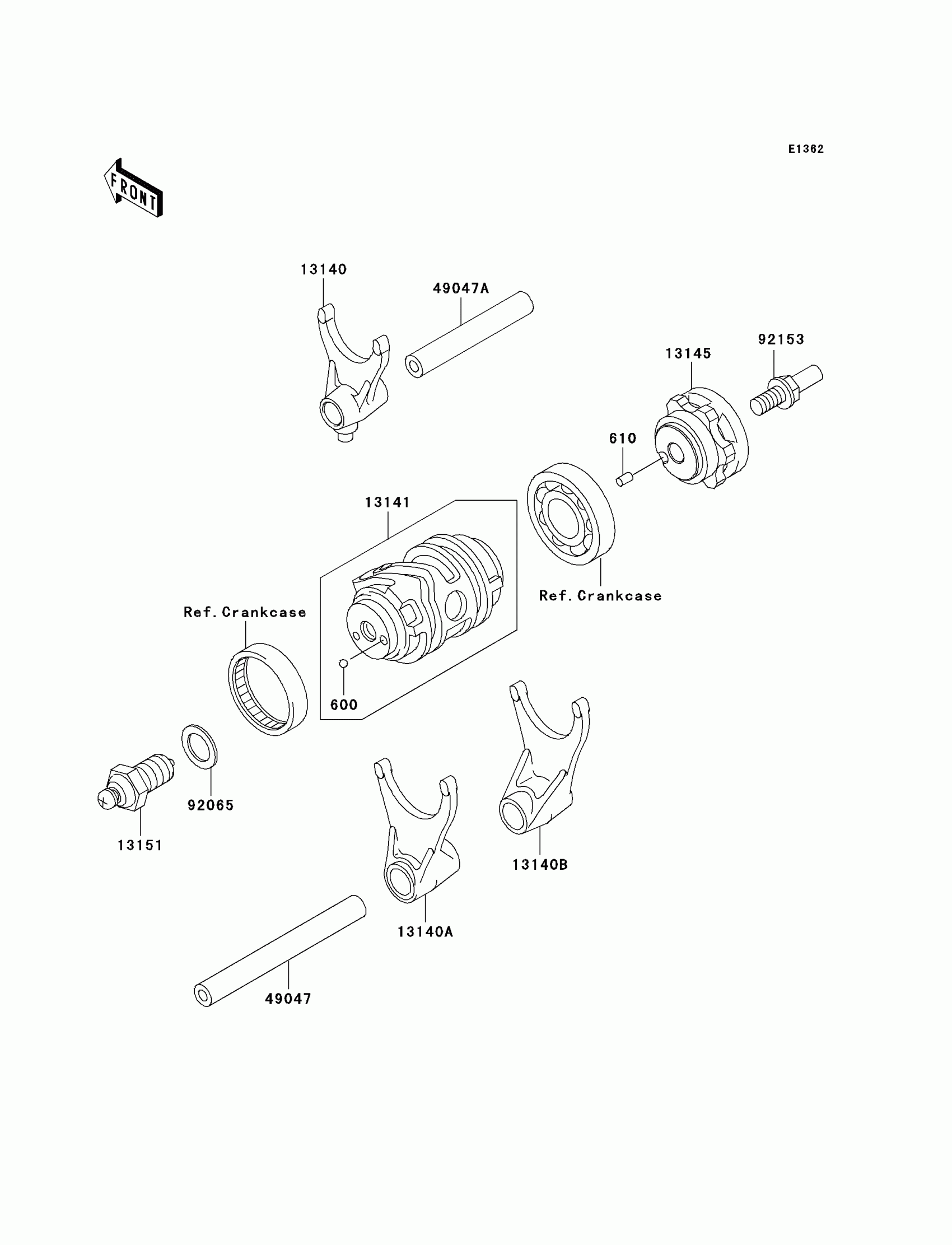

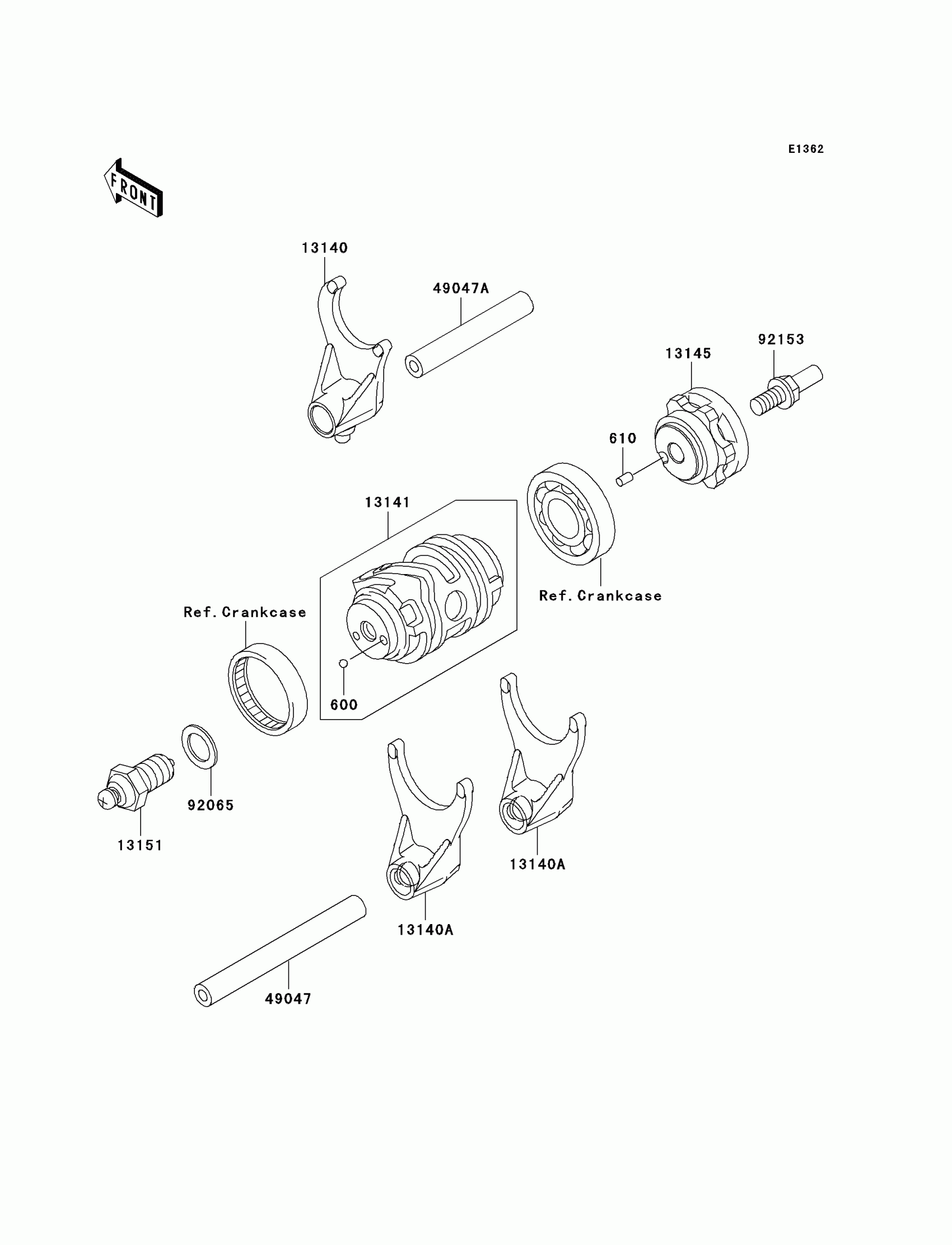

2004 Kawasaki KX250F Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

600

BALL-STEEL,7/32"

600A0700

1

$1.44

In stock

610

ROLLER,4X8

610A0408

1

$3.43

In stock

13140

FORK-SHIFT,IN

13140-0003

1
Out of stock

13140A

FORK-SHIFT,OUT LH

13140-0004

1
Out of stock

13140B

FORK-SHIFT,OUT,RH

13140-0013

1
Out of stock

13141

DRUM-CHANGE

13141-0002

1

$140.90

In stock

13145

CAM-CHANGE DRUM

13145-0005

1
Out of stock

13151

SWITCH-COMP,NEUTRAL

13151-0006

1

$52.04

In stock

49047

1

$24.63

In stock

49047A

1

$24.63

In stock

92065

GASKET,10.5X16X1

92065-058

1

$3.16

In stock

92153

BOLT,8X20

92153-0530

1
Out of stock
