2004 Kawasaki KX250F Clutch Diagram

← All diagrams

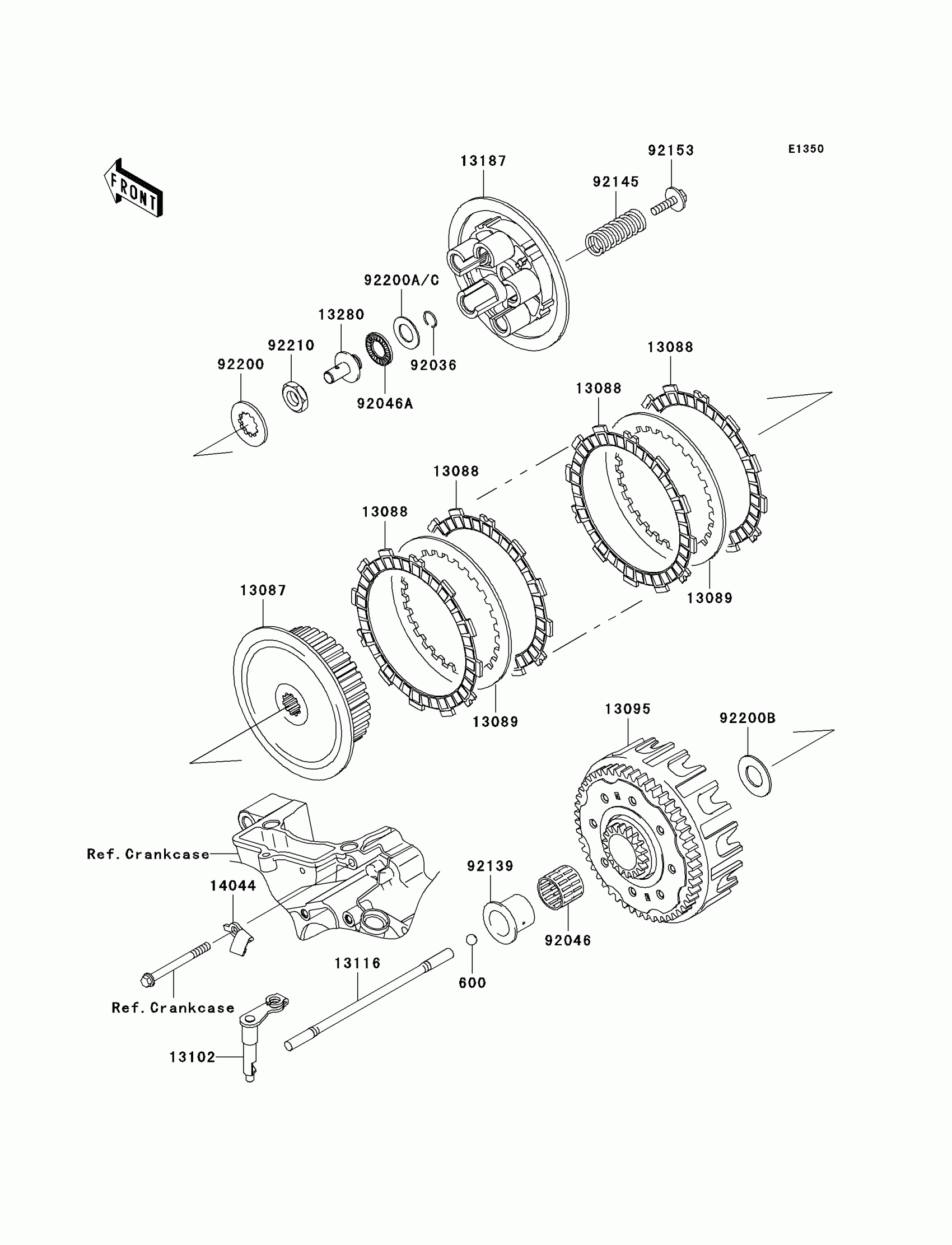

Find the part on the Clutch diagram for your 2004 Kawasaki KX250F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Kawasaki KX250F Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

600

BALL-STEEL,5/16

600A1000

1

$0.76

In stock

13087

HUB-CLUTCH

13087-0007

1
Out of stock

13088

PLATE-FRICTION

13088-0005

1

$21.29

In stock

13088A

PLATE-FRICTION

13088-0006

1

$21.29

In stock

13089

PLATE-CLUTCH,T=1.6

13089-013

1

$10.41

In stock

13095

HOUSING-COMP-CLUTCH

13095-0018

1
Out of stock

13102

RELEASE-COMP-CLUTCH

13102-0002

1

$75.15

In stock

13116

ROD-PUSH

13116-0003

1

$37.38

In stock

13187

1

$82.68

In stock

13280

HOLDER

13280-1266

1

$35.45

In stock

14044

HOLDER-CABLE,CLUTCH

14044-0002

1
Out of stock

92036

1

$3.10

In stock

92046

1

$35.17

In stock

92046A

BEARING-NEEDLE,FNTA-1326

92046-1190

1
Out of stock

92139

BUSHING

92139-0014

1

$30.34

In stock

92145

SPRING

92145-1487

1

$9.68

In stock

92153

BOLT,6X25

92153-1123

1
Out of stock

92200

WASHER,21.6X38X2.5

92200-0027

1
Out of stock

92200A

WASHER,13.4X25X1.0

92200-0045

—
Out of stock

92200B

WASHER,22.3X43X2

92200-0098

1
Out of stock

92200C

WASHER,13.4X25.0X1.5

92200-1548

1
Out of stock

92210

NUT,16MM

92210-1207

1
Out of stock
