Partiron

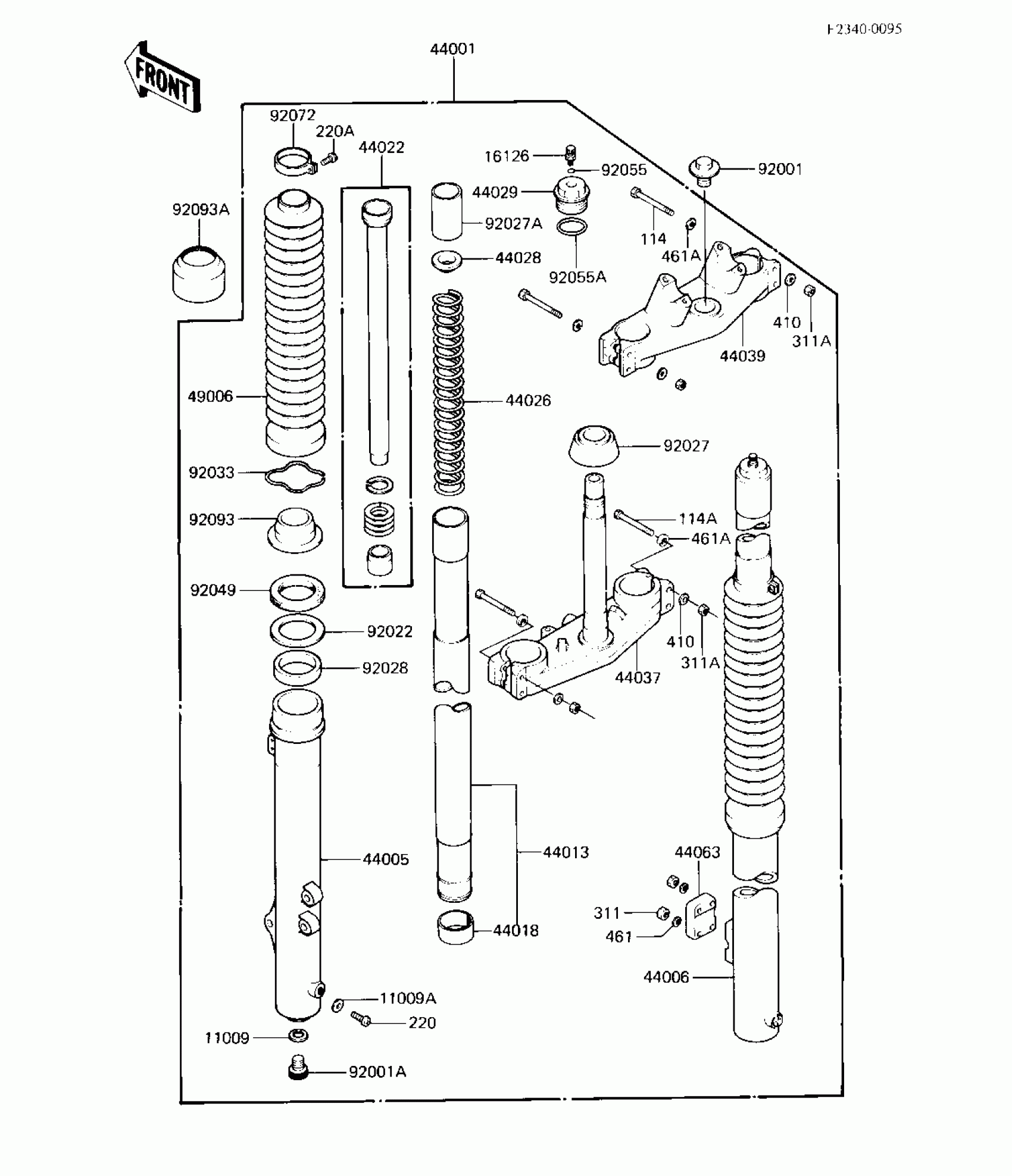

Kawasaki KX125 FRONT FORK (KX125-B1) Diagram

#

Description
Price

11009

GASKET,FORK DRAIN PLUG

11009-1553

$4.41

11009A

GASKET,FORK DRAIN PLUG

44045-002

$4.12

16126

VALVE,AIR FRONT FORK

16126-1048

Unavailable

44001

FORK-FRONT

44001-1323

$1,290.56

44005

TUBE,LH,FORK OUTER

44005-1083

$337.31

44006

TUBE,RH,FORK OUTER

44006-1083

$279.07

44013

PIPE-FORK INNER

44013-1081

$400.71

44018

PISTON-FORK

44018-1006

Unavailable

44022

CYLINDER-FORK

44022-1074

$118.08

44026

SPRING-FRONT FORK

44026-1130

$49.31

44028

GUIDE-FORK SPRING

44028-1009

$10.61

44029

SEAT-FORK SPRING

44029-1030

$52.59

44037

HOLDER-FORK UNDER

44037-1083

$380.96

44039

HOLDER-FORK UPPER

44039-1053

$183.02

44063

HOLDER-FRONT AXLE

44063-1007

$19.97

49006

BOOT,FORK OUTER TUBE

49006-1080

$53.17

92001

BOLT,STEERING HEAD,14X20

92001-1520

Unavailable

92001A

BOLT

92001-1533

$12.88

92022

WASHER,FORK OUTER TUBE

92022-1298

$6.82

92027

COLLAR,FRONT FORK

92027-1427

$79.69

92027A

COLLAR,FORK INNER

92027-1448

$9.17

92028

BUSHING-FRONT FORK

44065-1064

$34.45

92033

RING-SNAP

92033-1036

$5.15

92049

SEAL-OIL,FORK OUTER T

92049-1091

Unavailable

92055

"0" RING,AIR VALVE

92055-1094

$1.14

92055A

RING-O,FORK TOP CAP

92055-1122

Unavailable

92072

BAND,BOOT

92072-1077

$7.92

92093

SEAL,FORK OUTER TUBE

92093-1076

$22.90

92093A

SEAL,DUST FORK

92093-1078

$17.27

114

BOLT HEX HEAD 8X50

114G0850

Unavailable

114A

BOLT,HEX HEAD,8X55

114G0855

Unavailable

220

SCREW PAN HEAD 4X8

220B0408

Unavailable

220A

SCREW PAN HEAD 4X16

220B0416

Unavailable

311

NUT-HEX,6MM

311G0600

Unavailable

311A

NUT-HEX,8MM

311G0800

Unavailable

410

WASHER PLAIN 8MM

410B0800

Unavailable

461

WASHER SPRING 6MM

461F0600

Unavailable

461A

WASHER SPRING 8MM

461F0800

Unavailable
