1983 Kawasaki KX125 Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1983 Kawasaki KX125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

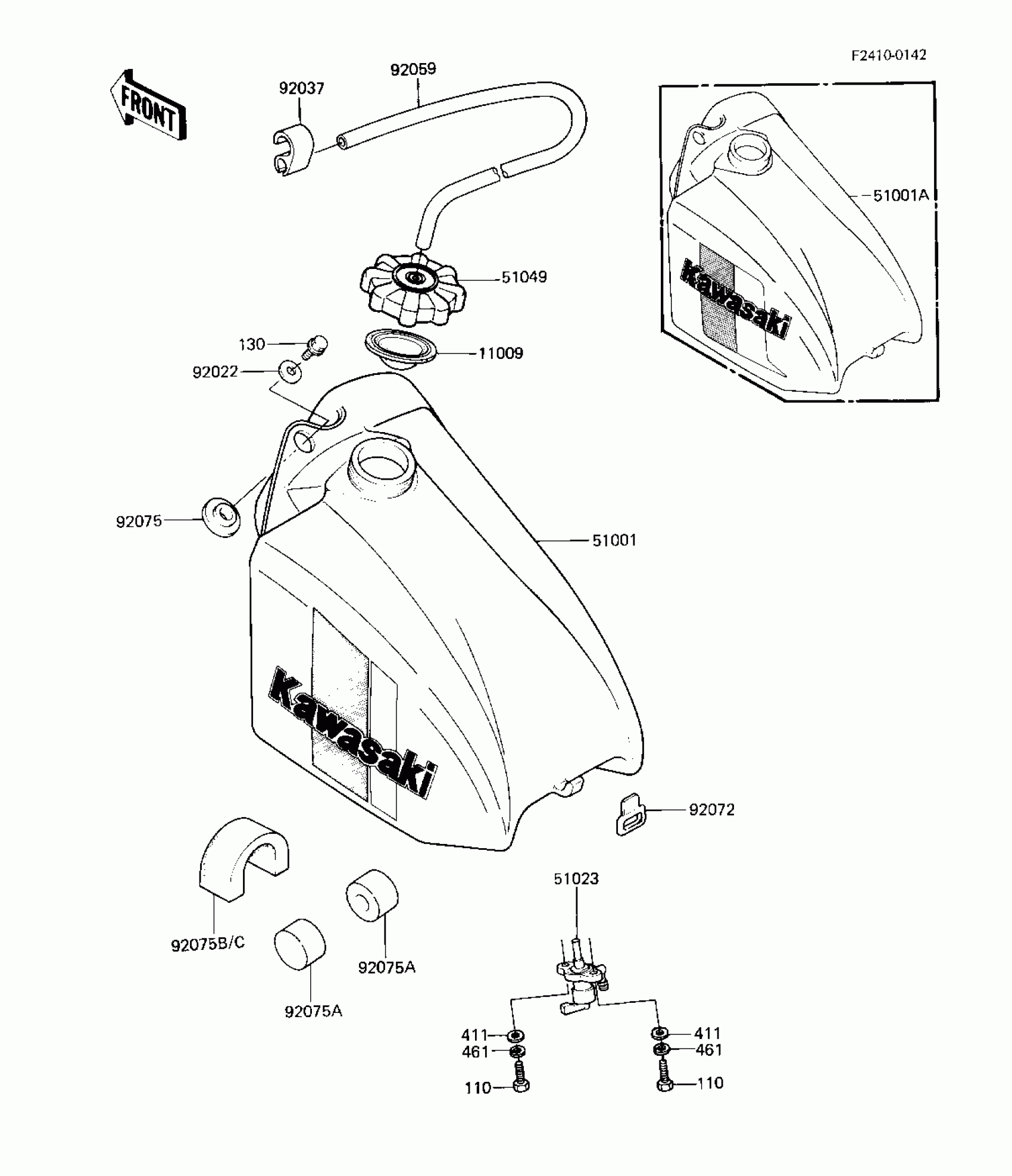

1983 Kawasaki KX125 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$20.94

In stock

51001A

TANK-COMP-FUEL,L.GREEN

51001-5272-6W

1

$336.63

In stock

51023

TAP-ASSY,FUEL

51023-1115

1
Out of stock

51049

CAP-TANK,FUEL

51049-1006

1
Out of stock

92022

WASHER,7X28X1.6

92022-1282

1

$3.72

In stock

92037

CLAMP,TUBE

92037-1377

1
Out of stock

92059

TUBE,5X9X250

92059-1258

1

$11.19

In stock

92072

BAND,FUEL TANK

92072-1073

1
Out of stock

92075

DAMPER,FUEL TANK

92075-1360

1
Out of stock

92075A

DAMPER,FUEL TANK

92075-1361

1
Out of stock

92075C

DAMPER,FUEL TANK

92075-1382

1

$26.48

In stock

110

BOLT-UPSET,6X16

112G0616

1
Out of stock

130

BOLT-FLANGED,6X10

130G0610

1
Out of stock

411

WASHER PLAIN 6MM

411B0600

1
Out of stock

461

WASHER SPRING 6MM

461F0600

1
Out of stock
