1983 Kawasaki KX125 Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1983 Kawasaki KX125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

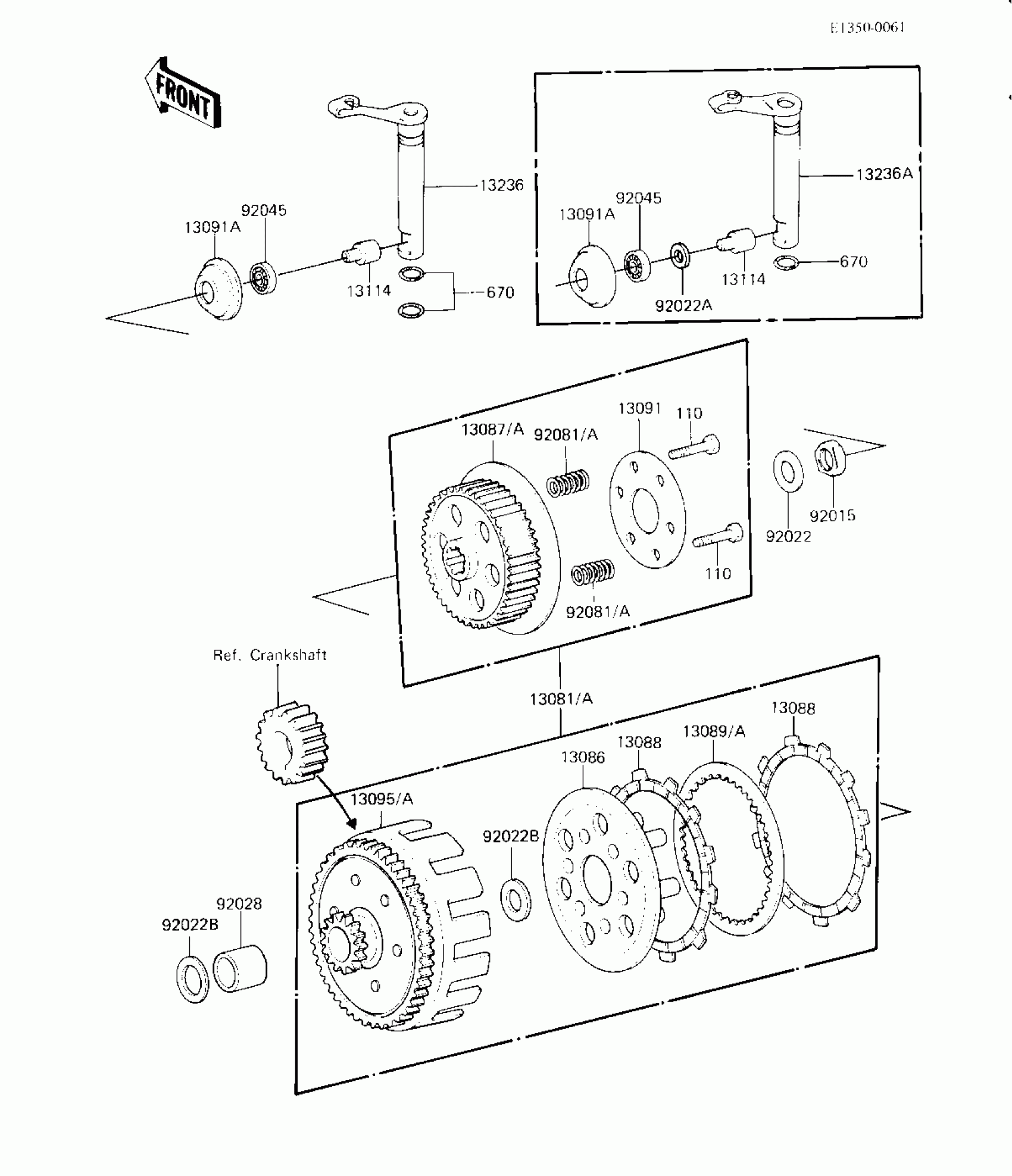

1983 Kawasaki KX125 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13081A

CLUTCH-ASSY

13081-1103

1
Out of stock

13086

WHEEL,CLUTCH

13086-1001

1
Out of stock

13087A

HUB-CLUTCH

13087-1022

1
Out of stock

13088

PLATE-FRICTION

13088-1015

1

$19.58

In stock

13089

PLATE CLUTCH STEEL

13089-003

1

$11.25

In stock

13091

HOLDER,CLUTCH

13091-1011

1
Out of stock

13091A

1

$13.39

In stock

13095A

HOUSING-COMP-CLUTCH

13095-1058

1
Out of stock

13114

PUSHER-CLUTCH

13114-1008

1
Out of stock

13236A

LEVER-COMP,CLUTCH REL

13236-1057

1
Out of stock

92015

NUT,16MM

92015-1176

1
Out of stock

92022

WASHER,16.8X32X1.6

92022-1277

1
Out of stock

92022A

WASHER,7X12.5X0.8

92022-1290

1

$3.14

In stock

92022B

WASHER,17.3X30X1.4

92022-270

1
Out of stock

92028

BUSHING,17X22X21.1

92028-1149

1
Out of stock

92045

BEARING-BALL,#627

92045-026

1

$18.51

In stock

92081A

SPRING,CLUTCH

92081-1506

1
Out of stock

110

BOLT

110G0520

1
Out of stock

670

O RING,9.8X1.9

670B1510

1

$3.43

In stock
