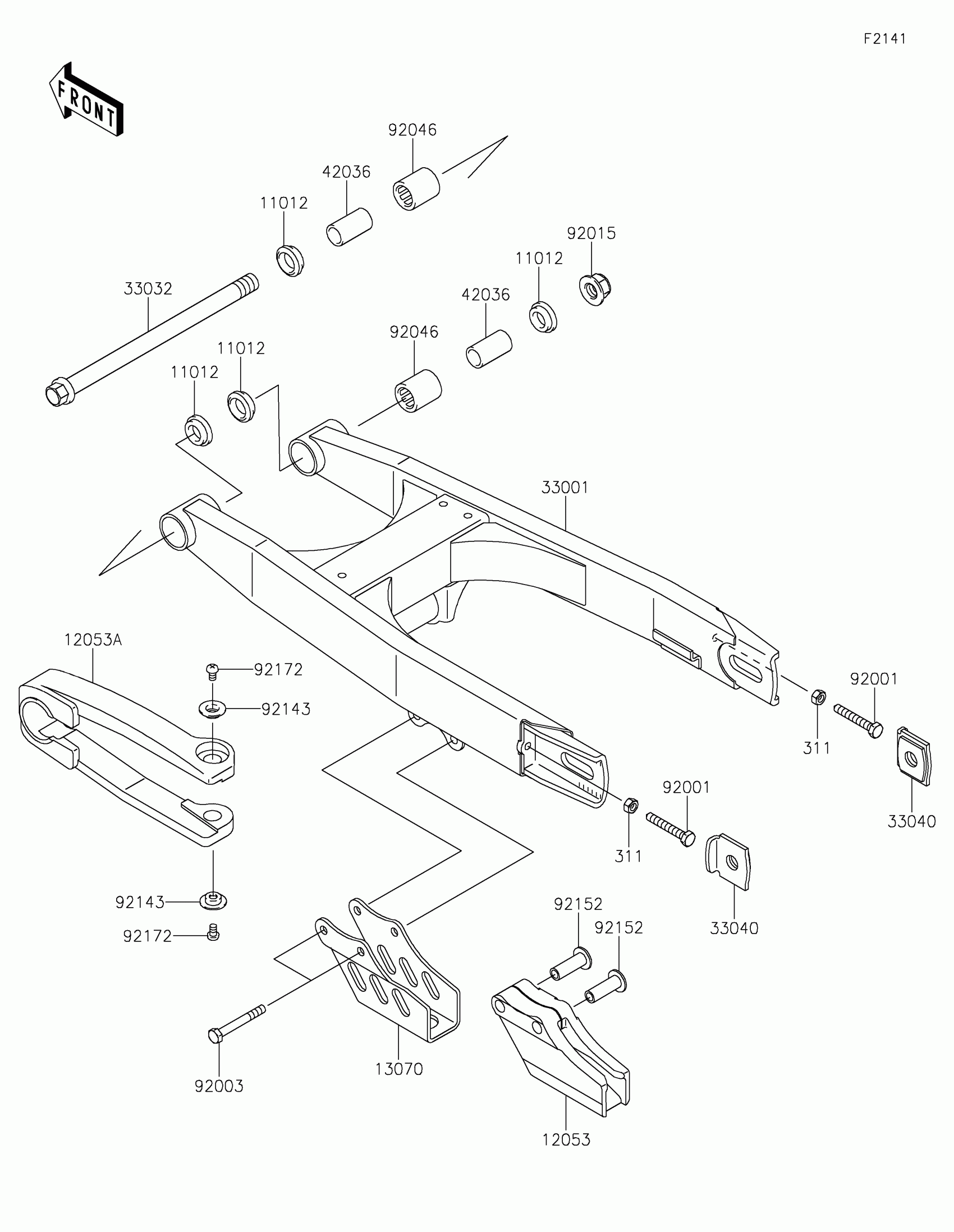

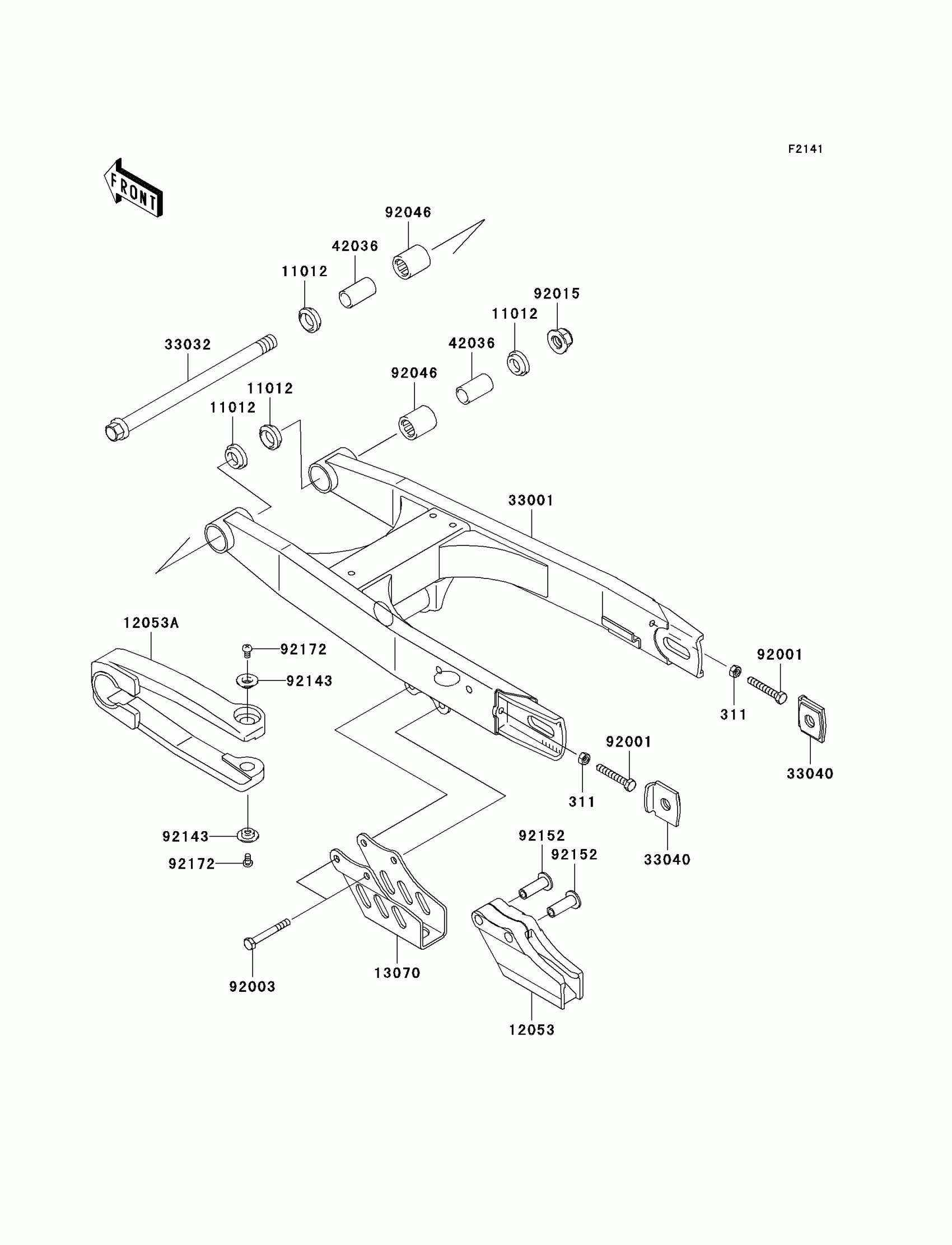

Find the part on the Swingarm diagram for your 2009 Kawasaki KX™65, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Kawasaki KX™65 Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

311

NUT-HEX,6MM

311AA0600

1

$0.93

In stock

11012

CAP

11012-1263

1

$13.08

In stock

12053

GUIDE-CHAIN,RR

12053-1436

1

$33.76

In stock

12053A

GUIDE-CHAIN,FR

12053-1456

1

$65.40

In stock

13070

GUIDE,CHAIN

13070-1347

1

$23.41

In stock

33001

ARM-COMP-SWING,P.SILVER

33001-1634-458

1

$255.06

In stock

33032

SHAFT-SWING ARM

33032-1194

1

$25.92

In stock

33040

ADJUSTER-CHAIN

33040-1188

1

$9.93

In stock

42036

1

$10.25

In stock

92001

BOLT,6X39

92001-1463

1

$3.72

In stock

92003

BOLT,FLANGED,6X48

92003-179

1
Out of stock

92015

1

$7.04

In stock

92046

BEARING-NEEDLE

92046-1046

1

$24.62

In stock

92143

COLLAR

92143-1676

1

$4.93

In stock

92152

COLLAR

92152-1215

1

$7.27

In stock

92172

SCREW,5X8

92172-0119

1

$1.78

In stock
