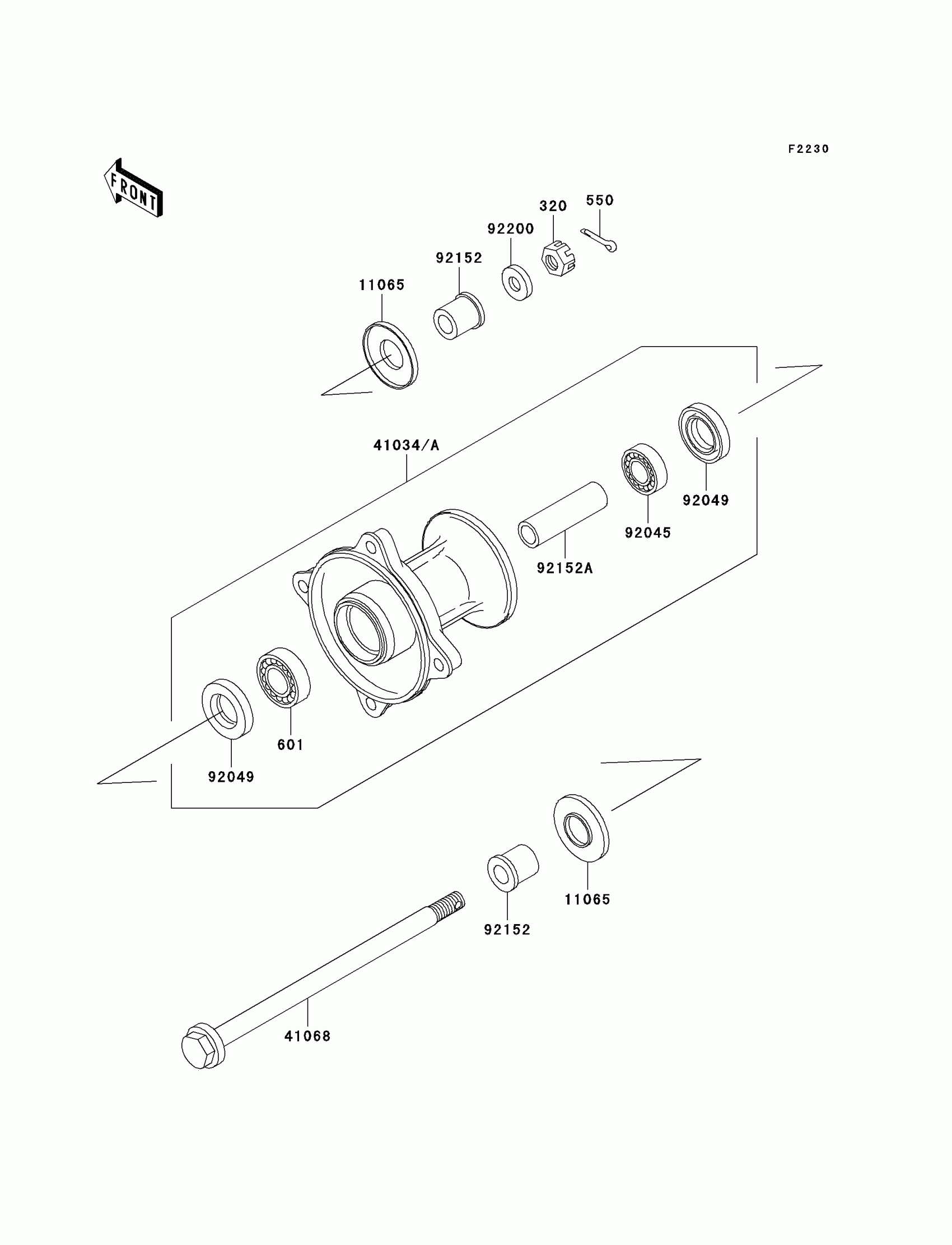

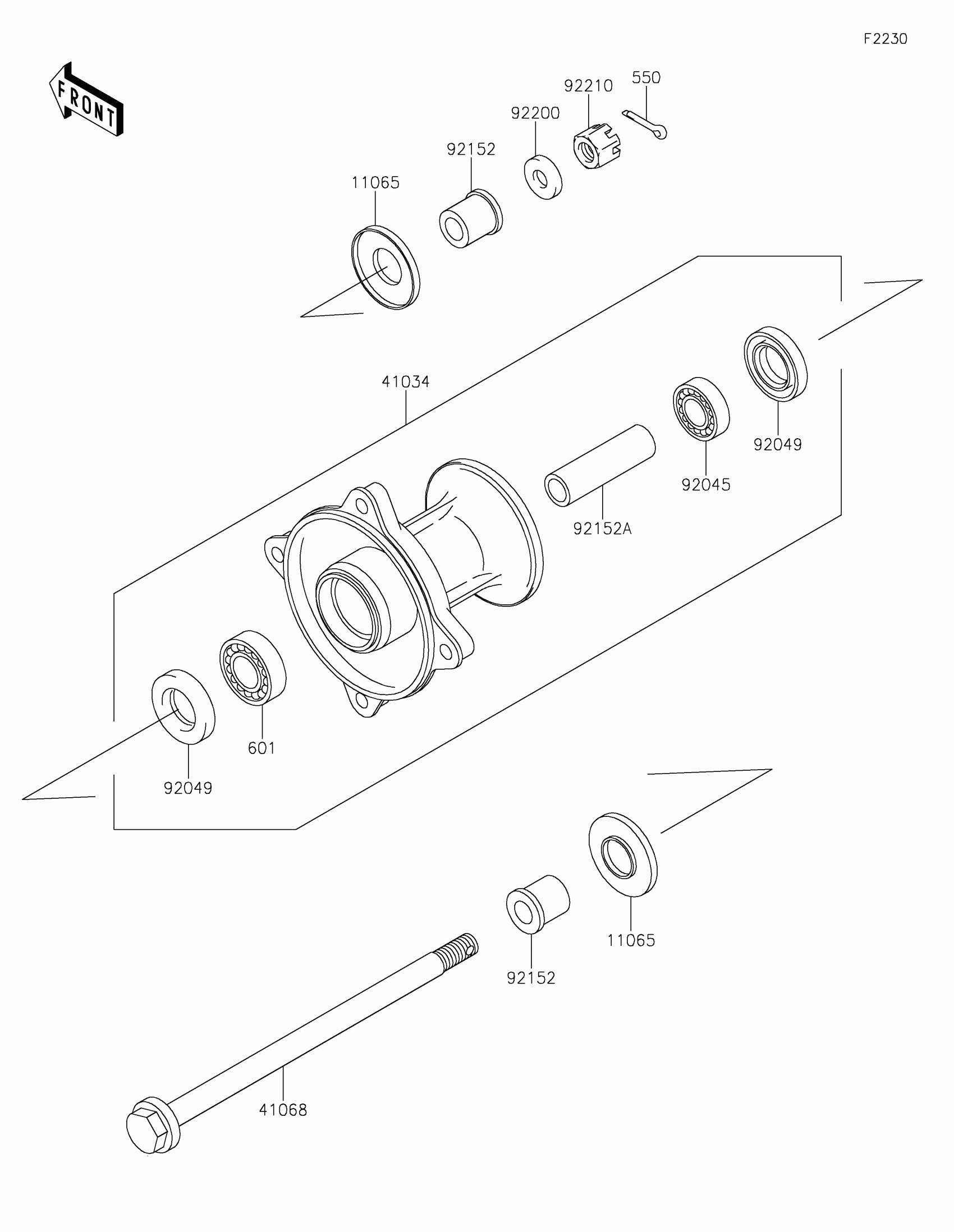

2009 Kawasaki KX™65 Front Hub Diagram

← All diagrams

Find the part on the Front Hub diagram for your 2009 Kawasaki KX™65, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Kawasaki KX™65 Front Hub Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

320

NUT-CASTLE

320BA1200

1
Out of stock

550

PIN-COTTER,3.0X25

550AA3025

1

$0.67

In stock

601

1

$23.98

In stock

11065

CAP

11065-1137

1

$3.25

In stock

41034

1

$431.92

In stock

41068

AXLE,FR

41068-1418

1

$29.78

In stock

92045

1

$24.47

In stock

92049

SEAL-OIL,TC20376.5

92049-1257

1
Out of stock

92152

COLLAR,AXLE,L=15.5

92152-1196

1

$8.13

In stock

92152A

1

$5.54

In stock

92200

WASHER,12.3X23X2.3

92200-1004

1
Out of stock
