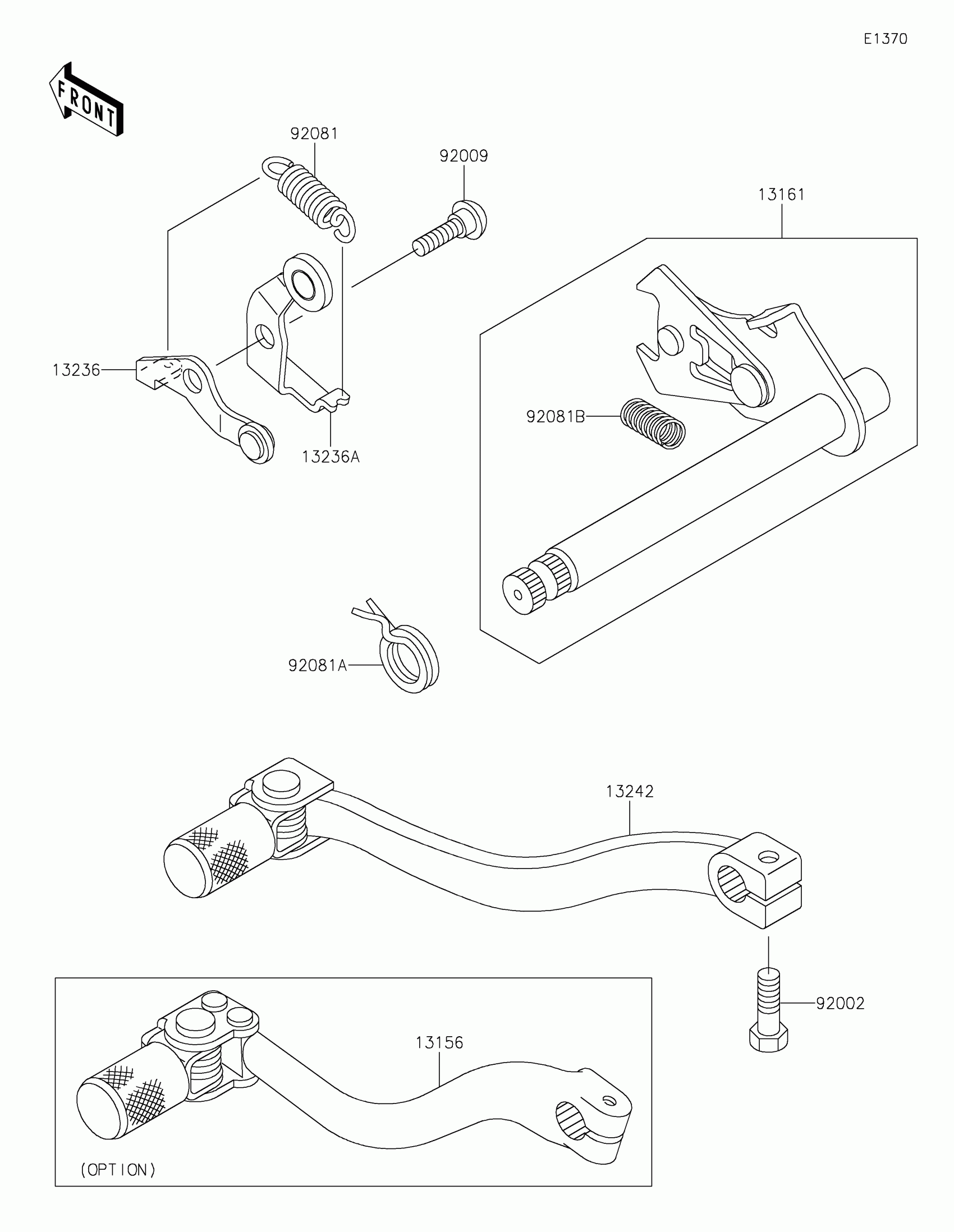

2009 Kawasaki KX™65 Gear Change Mechanism Diagram

← All diagrams

Find the part on the Gear Change Mechanism diagram for your 2009 Kawasaki KX™65, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

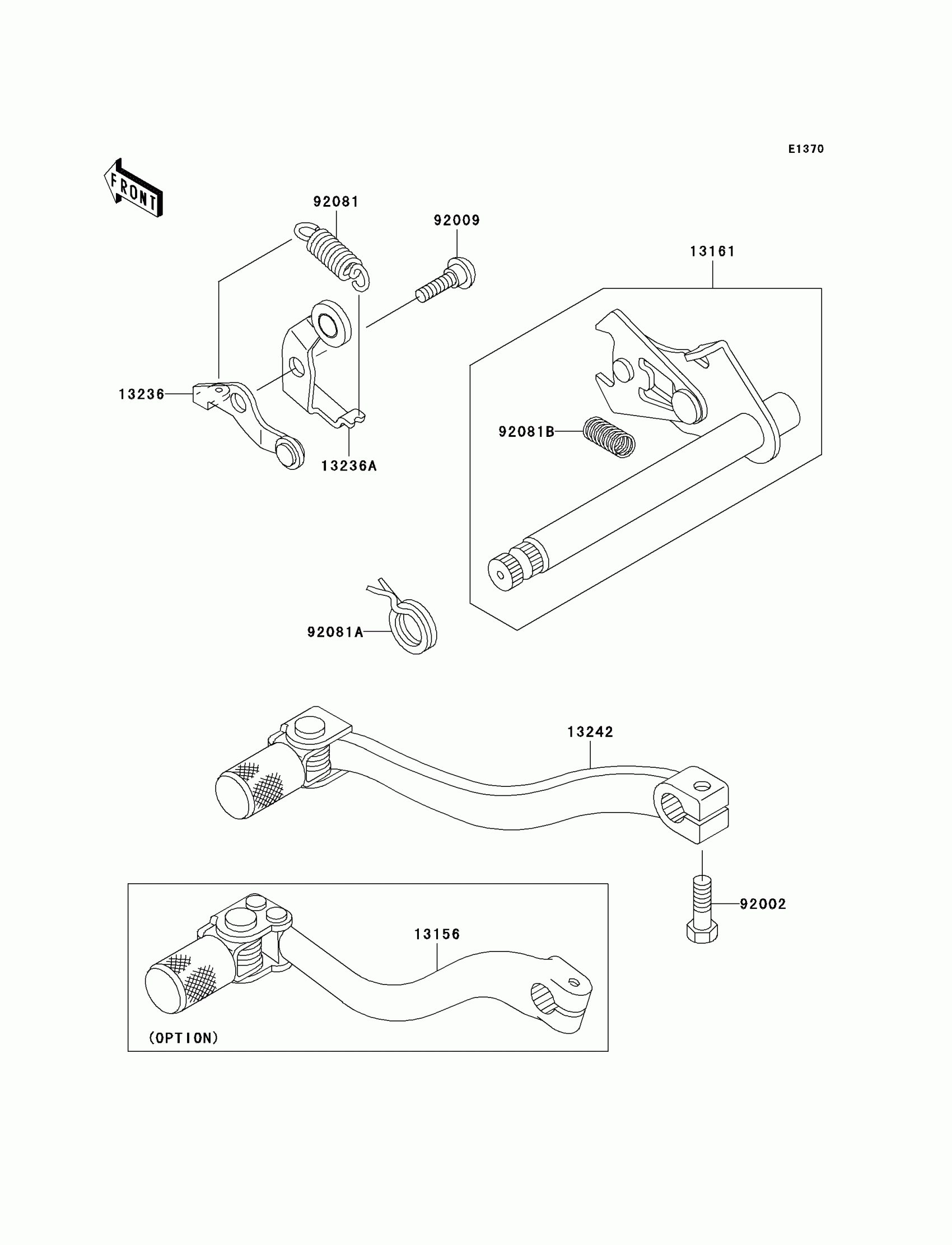

2009 Kawasaki KX™65 Gear Change Mechanism Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13156

LEVER-CHANGE,PEDAL

13156-1347

1
Out of stock

13161

LEVER-COMP-CHANGE SHAFT

13161-1280

1
Out of stock

13236

LEVER-COMP,CHANGE DRUM

13236-1026

1
Out of stock

13236A

LEVER-COMP,CHANGE

13236-1376

1
Out of stock

13242

LEVER-ASSY-CHANGE,PEDAL,STEEL

13242-1366

1
Out of stock

92002

BOLT,6X20

92002-1237

1
Out of stock

92009

SCREW,CHANGE LEVER

92009-1102

1
Out of stock

92081

SPRING,CHANGE LEVER

92081-1109

1
Out of stock

92081A

SPRING,TENSION

92081-1129

1
Out of stock

92081B

SPRING,CHANGE LEVER

92081-1275

1
Out of stock
