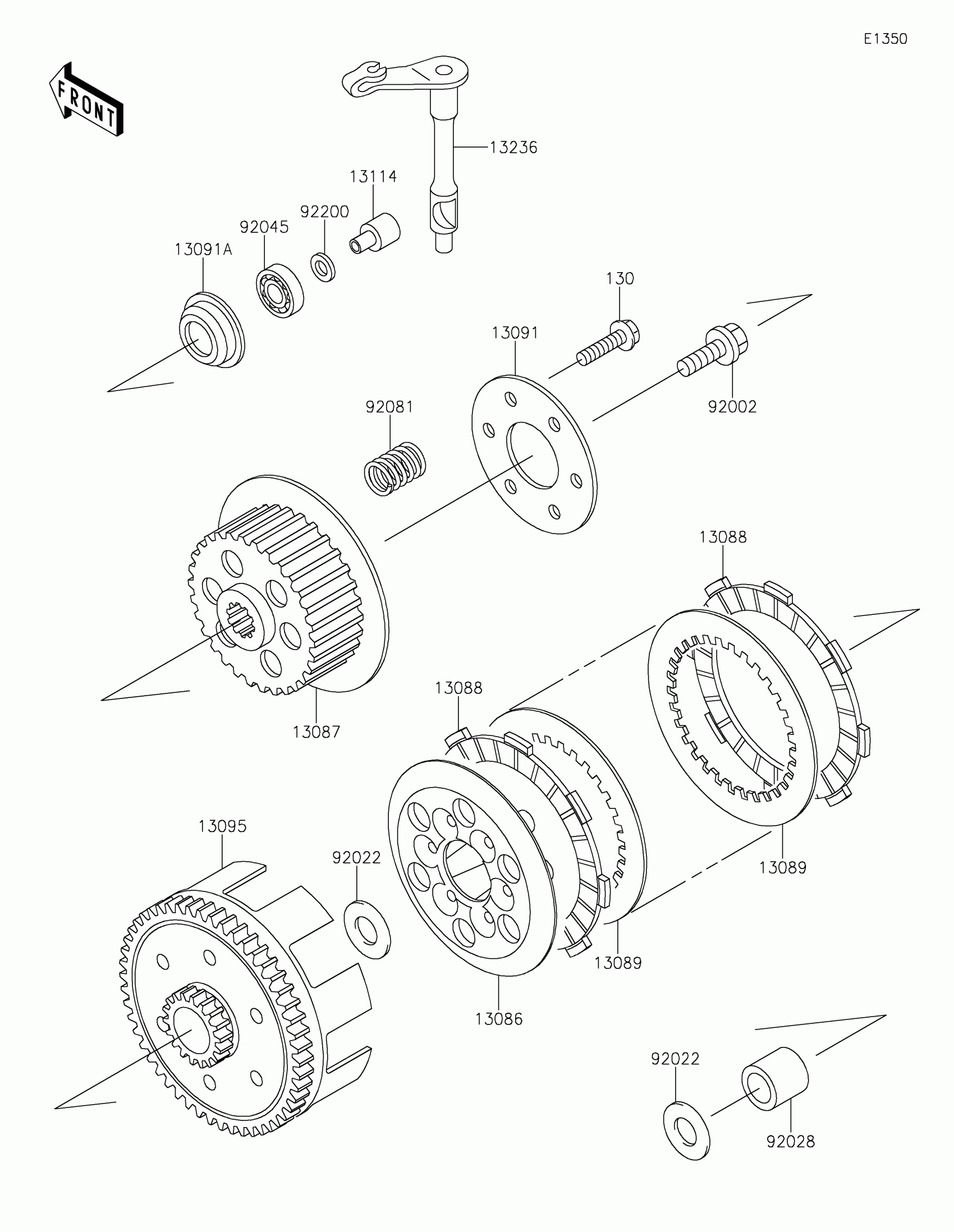

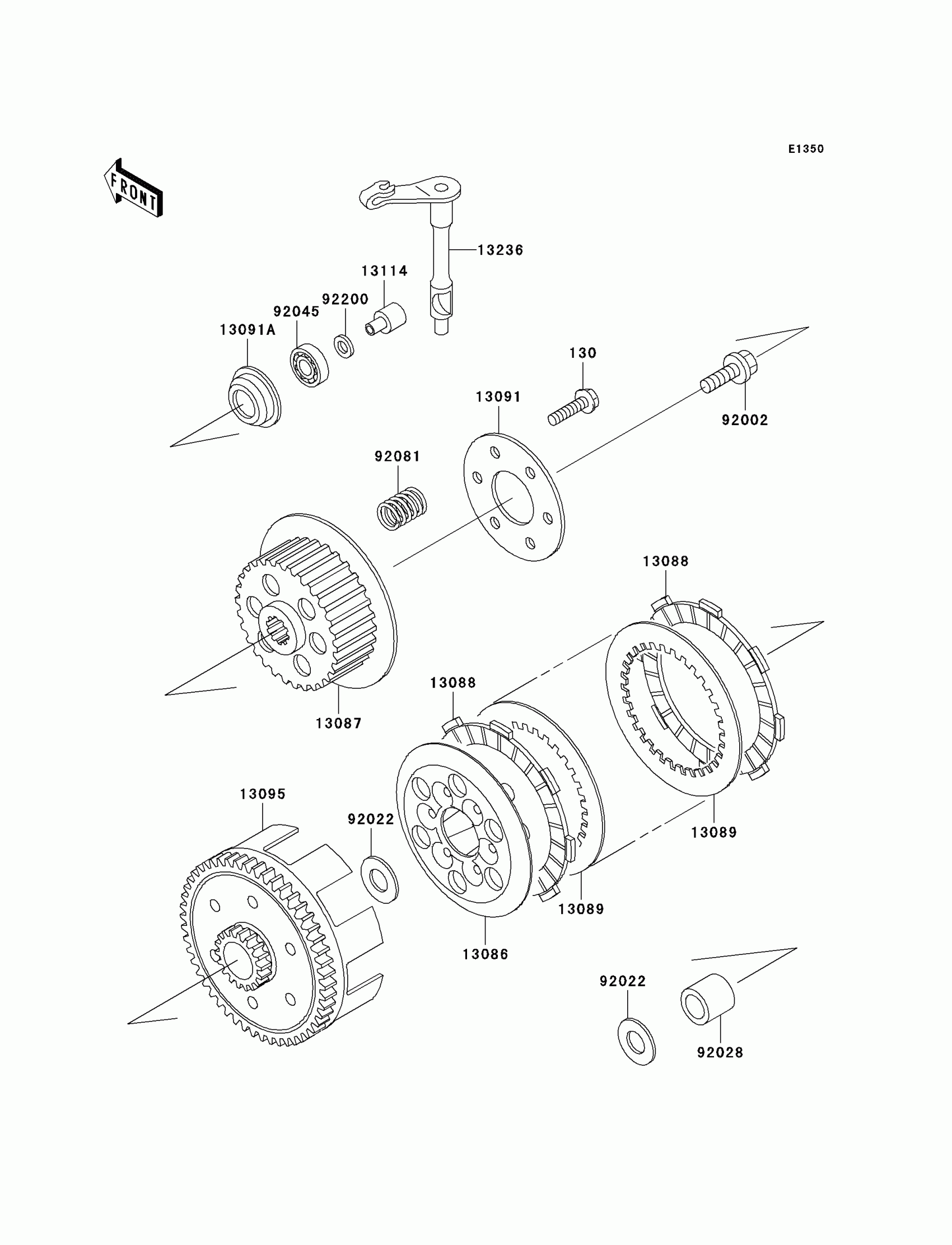

2009 Kawasaki KX™65 Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 2009 Kawasaki KX™65, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Kawasaki KX™65 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,5X20

130CA0520

1

$1.19

In stock

13086

WHEEL-CLUTCH

13086-1002

1

$45.84

In stock

13087

HUB-CLUTCH

13087-1051

1

$65.87

In stock

13088

PLATE-FRICTION

13088-1010

1

$10.86

In stock

13089

PLATE-CLUTCH

13089-1087

1

$10.14

In stock

13091

1

$17.20

In stock

13091A

1

$11.12

In stock

13095

HOUSING-COMP-CLUTCH

13095-1042

1

$273.67

In stock

13114

PUSHER-CLUTCH

13114-1055

1

$19.54

In stock

13236

LEVER-COMP,RELEASE

13236-1338

1
Out of stock

92002

BOLT,10X30

92002-1697

1
Out of stock

92022

WASHER,17.3X28X1

92022-255

1
Out of stock

92028

BUSHING

92028-1967

1

$11.19

In stock

92045

BEARING-BALL,627

92045-1236

1

$18.51

In stock

92081

SPRING,CLUTCH

92081-1175

1

$4.88

In stock

92200

WASHER,7X12.5X0.8

92200-1197

1
Out of stock
