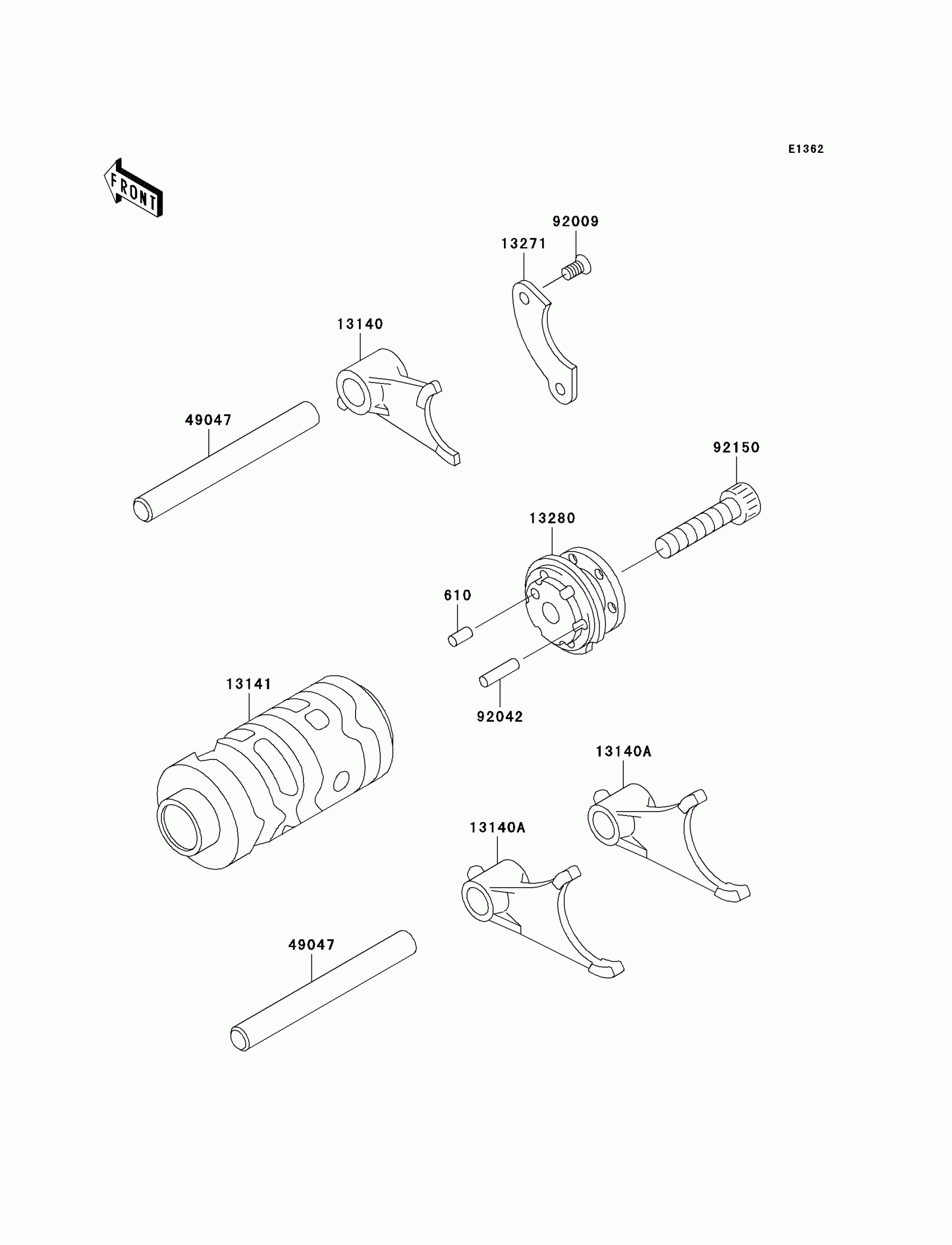

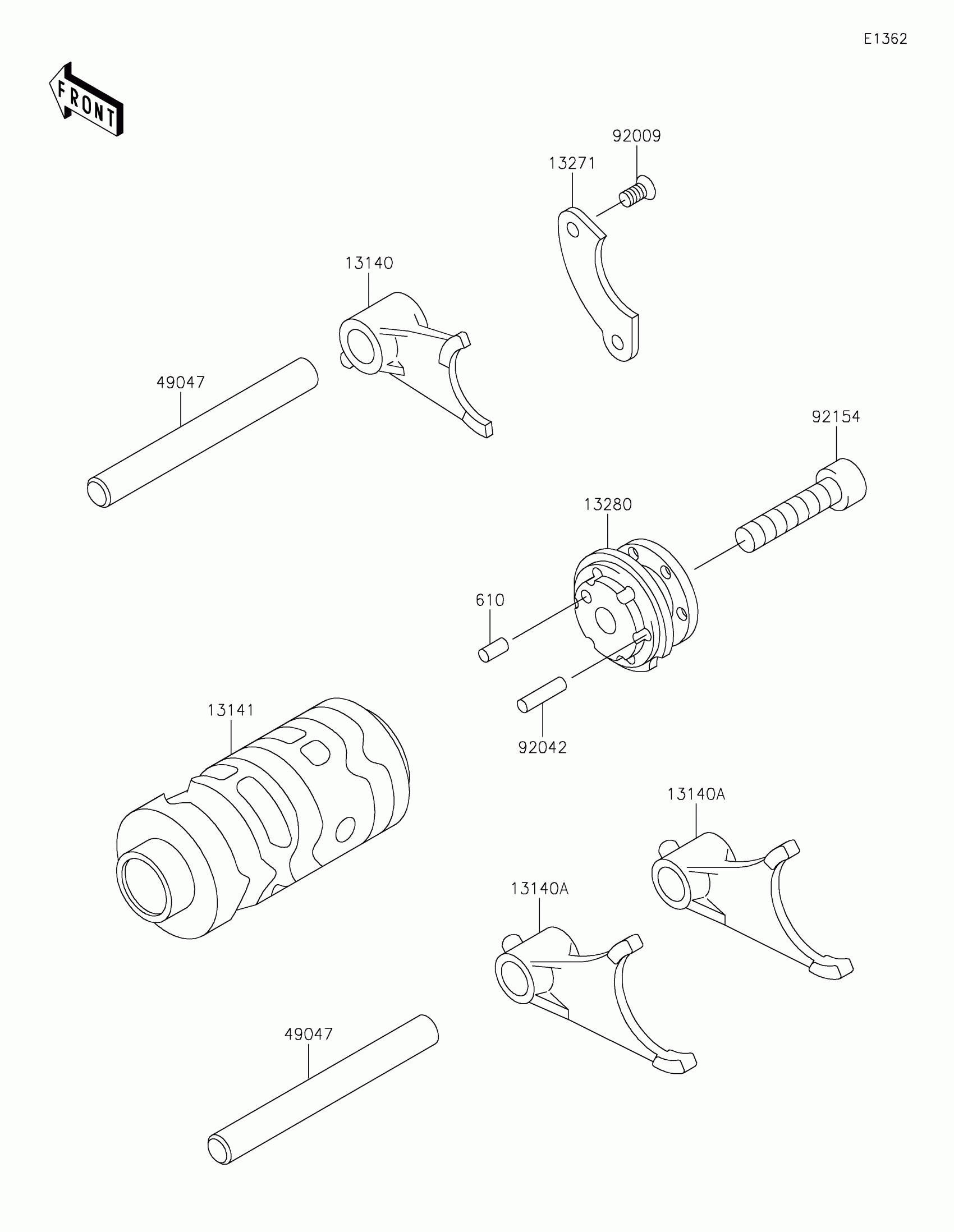

2009 Kawasaki KX™65 Gear Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Gear Change Drum/shift Fork diagram for your 2009 Kawasaki KX™65, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Kawasaki KX™65 Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

610

ROLLER,4X8

610A0408

1
Out of stock

13140

FORK-SHIFT,INPUT

13140-1300

1
Out of stock

13140A

FORK-SHIFT,OUTPUT

13140-1301

1
Out of stock

13141

DRUM-CHANGE

13141-1220

1
Out of stock

13271

PLATE

13271-1417

1
Out of stock

13280

HOLDER

13280-1179

1
Out of stock

49047

ROD-SHIFT,10X90

49047-1009

1
Out of stock

92009

SCREW,6X14

92009-1862

1
Out of stock

92042

PIN,DOWEL,4X15.8

92042-014

1
Out of stock

92150

BOLT,SOCKET,8X30

92150-1604

1
Out of stock
