2009 Kawasaki KX™65 Front Master Cylinder Diagram

← All diagrams

Find the part on the Front Master Cylinder diagram for your 2009 Kawasaki KX™65, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

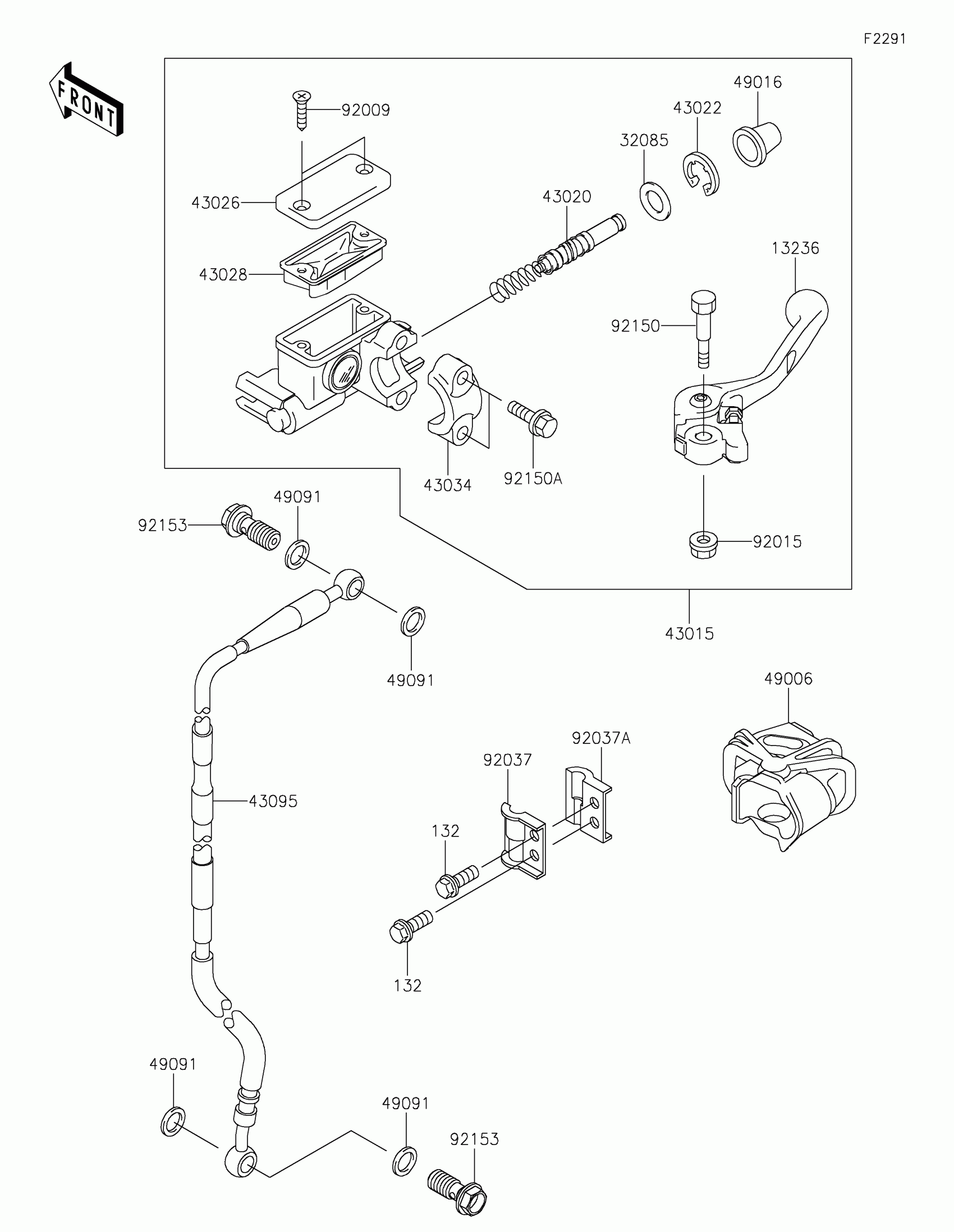

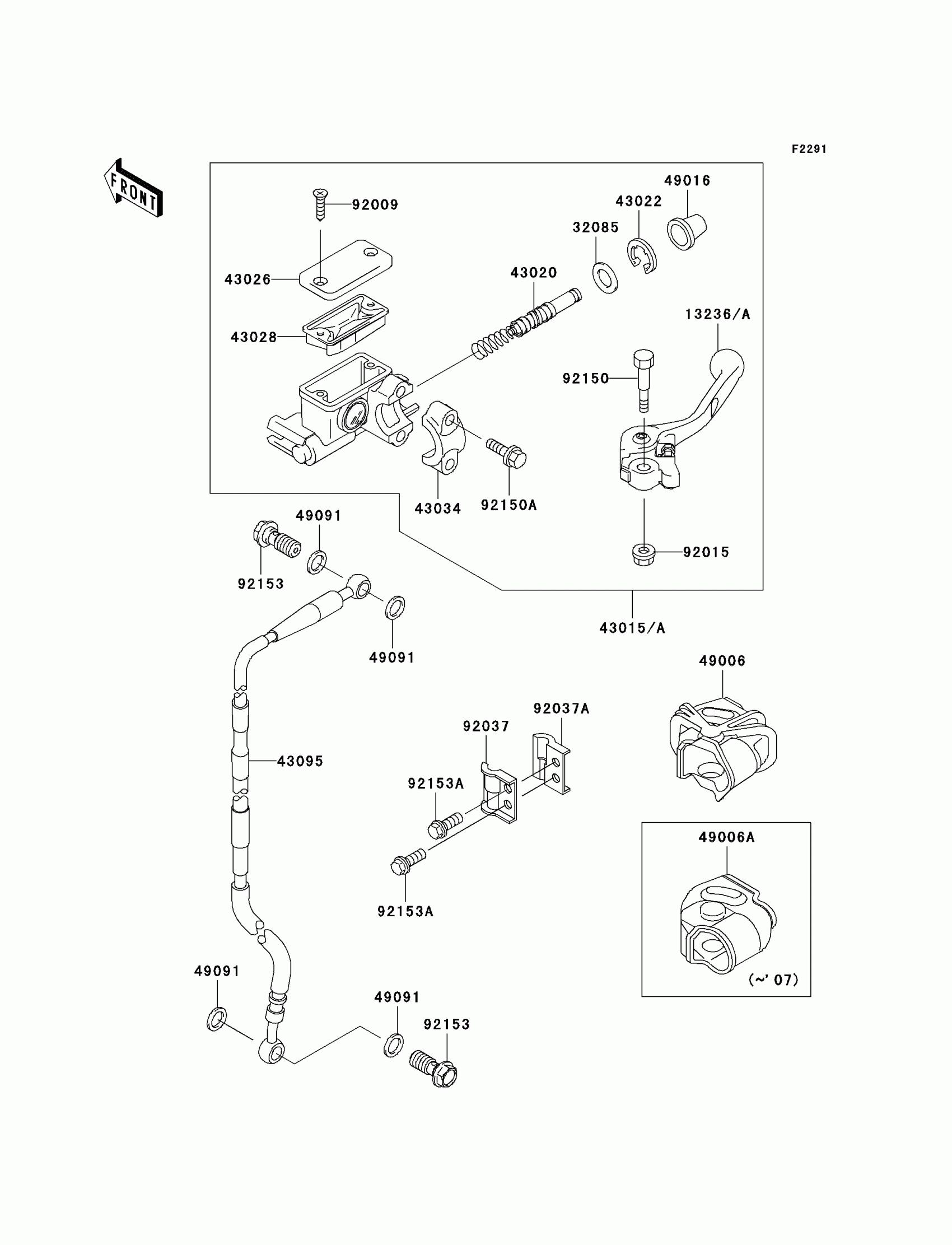

2009 Kawasaki KX™65 Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13236A

LEVER-COMP,FRONT BRAKE

13236-1346

1
Out of stock

32085

STOPPER

32085-1508

1

$3.85

In stock

43015A

CYLINDER-ASSY-MASTER,FR

43015-1675

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1121

1

$53.37

In stock

43022

1

$3.69

In stock

43026

CAP-BRAKE

43026-1075

1

$12.97

In stock

43028

DIAPHRAGM

43028-1067

1

$14.71

In stock

43034

HOLDER-BRAKE

43034-1110

1

$15.29

In stock

43095

HOSE-BRAKE,FR

43095-1256

1

$99.07

In stock

49006

1

$11.34

In stock

49016

1

$6.90

In stock

49091

1

$1.81

In stock

92009

SCREW,4MM

92009-1458

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1528

1

$4.37

In stock

92037

1

$5.84

In stock

92037A

1

$5.84

In stock

92150

BOLT,LEVER SET

92150-1451

1

$11.26

In stock

92150A

BOLT

92150-1452

1

$4.37

In stock

92153

BOLT,OIL,L=23

92153-0627

1
Out of stock

92153A

BOLT,6X16

92153-0695

1
Out of stock
