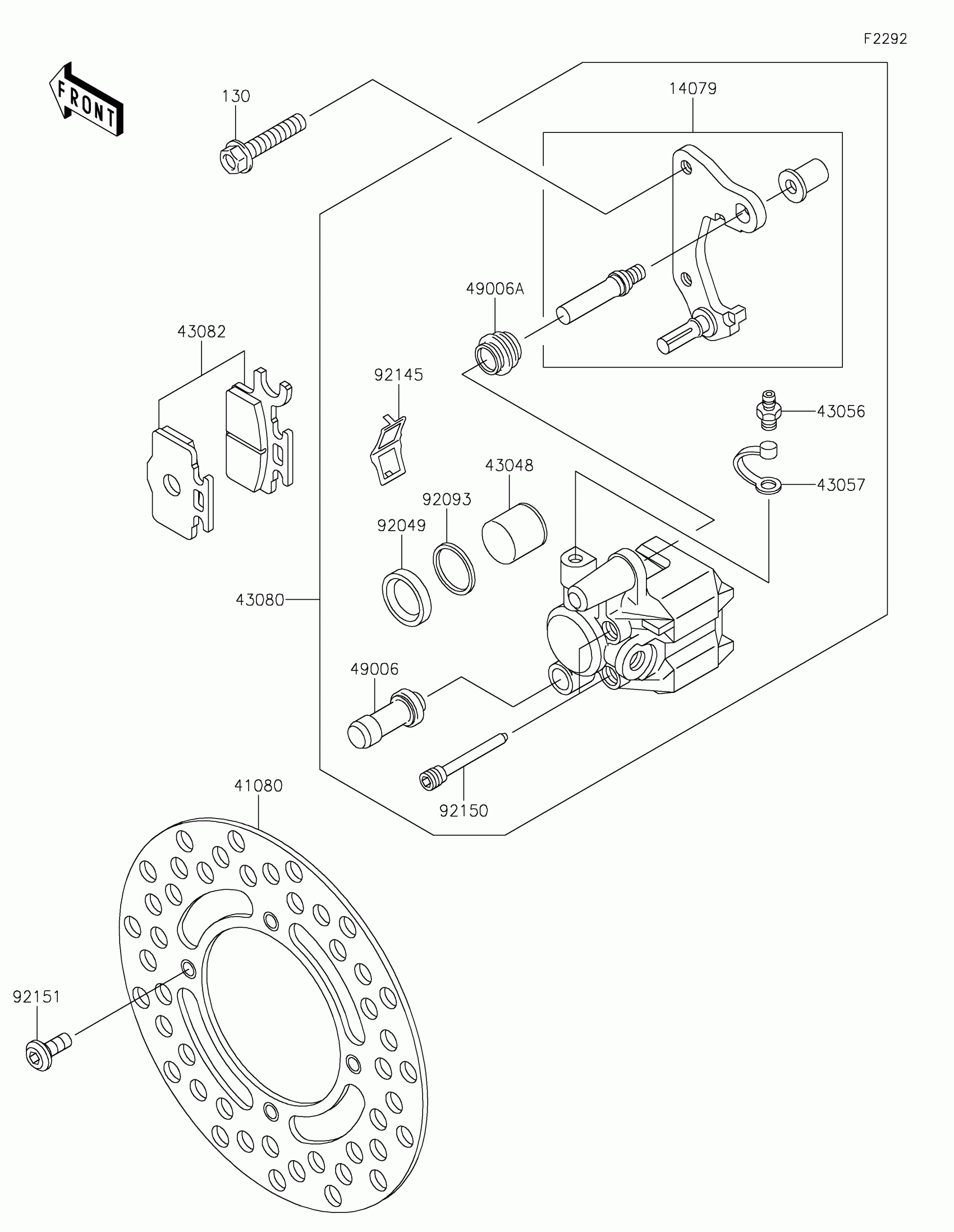

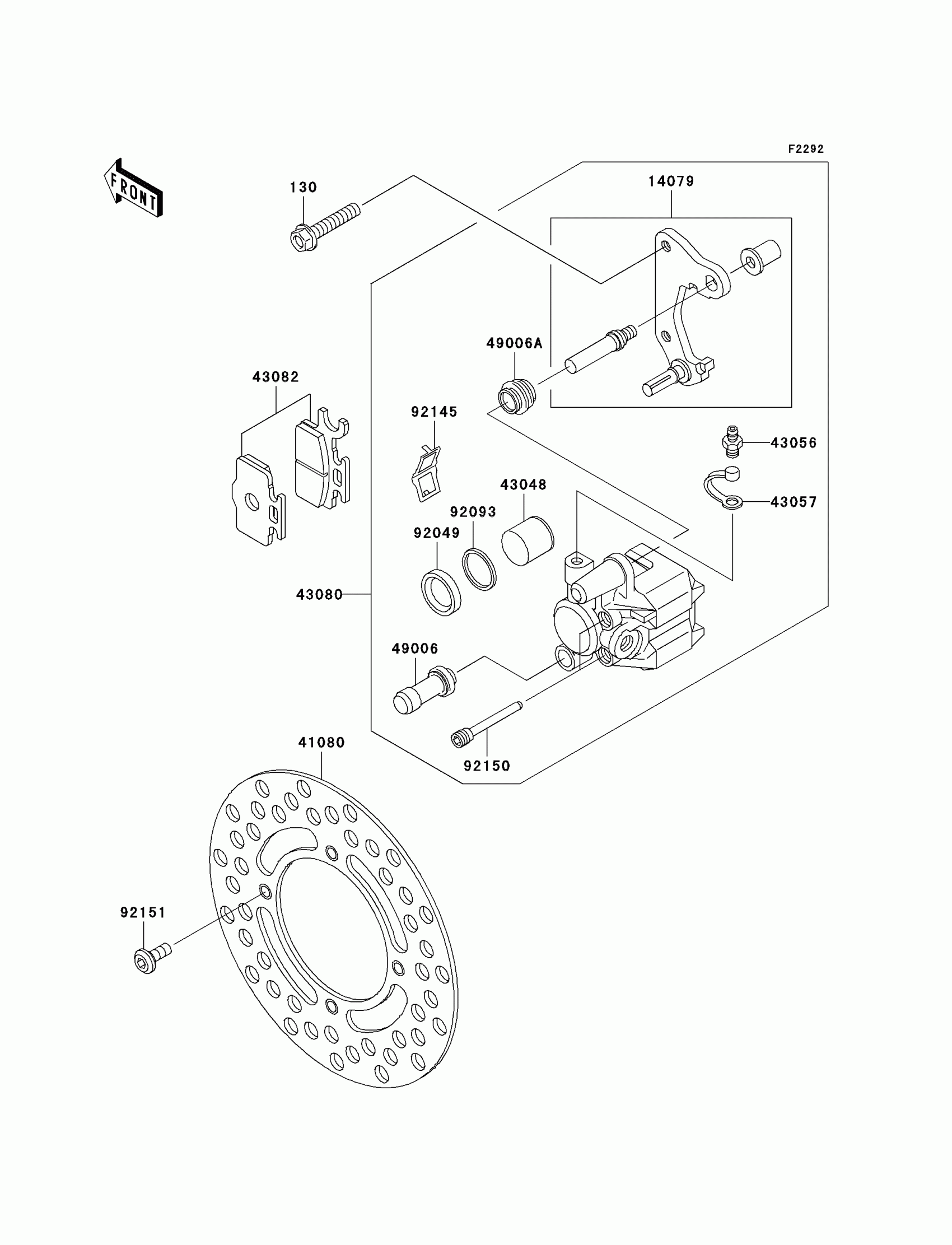

2009 Kawasaki KX™65 Front Brake Diagram

← All diagrams

Find the part on the Front Brake diagram for your 2009 Kawasaki KX™65, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Kawasaki KX™65 Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X40

130CA0840

1

$1.29

In stock

14079

1

$64.88

In stock

41080

DISC

41080-1470

1

$189.75

In stock

43048

PISTON-CALIPER

43048-1089

1

$52.23

In stock

43056

BREATHER

43056-1055

1
Out of stock

43057

CAP-BREATHER

43057-1001

1

$3.89

In stock

43080

CALIPER-SUB-ASSY,FR

43080-0035

1

$195.48

In stock

43082

PAD-ASSY-BRAKE

43082-0042

1

$61.21

In stock

49006

BOOT,CALIPER

49006-1088

1

$9.20

In stock

49006A

BOOT,CALIPER

49006-1242

1

$4.34

In stock

92049

SEAL-OIL,PISTON

92049-1331

1
Out of stock

92093

SEAL,PISTON

92093-1272

1

$15.29

In stock

92145

SPRING,PAD

92145-1269

1

$13.42

In stock

92150

BOLT

92150-1144

1

$7.86

In stock

92151

BOLT,DISC PLATE,6MM

92151-1799

1

$3.29

In stock
