2009 Kawasaki KX™65 Brake Pedal Diagram

← All diagrams

Find the part on the Brake Pedal diagram for your 2009 Kawasaki KX™65, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

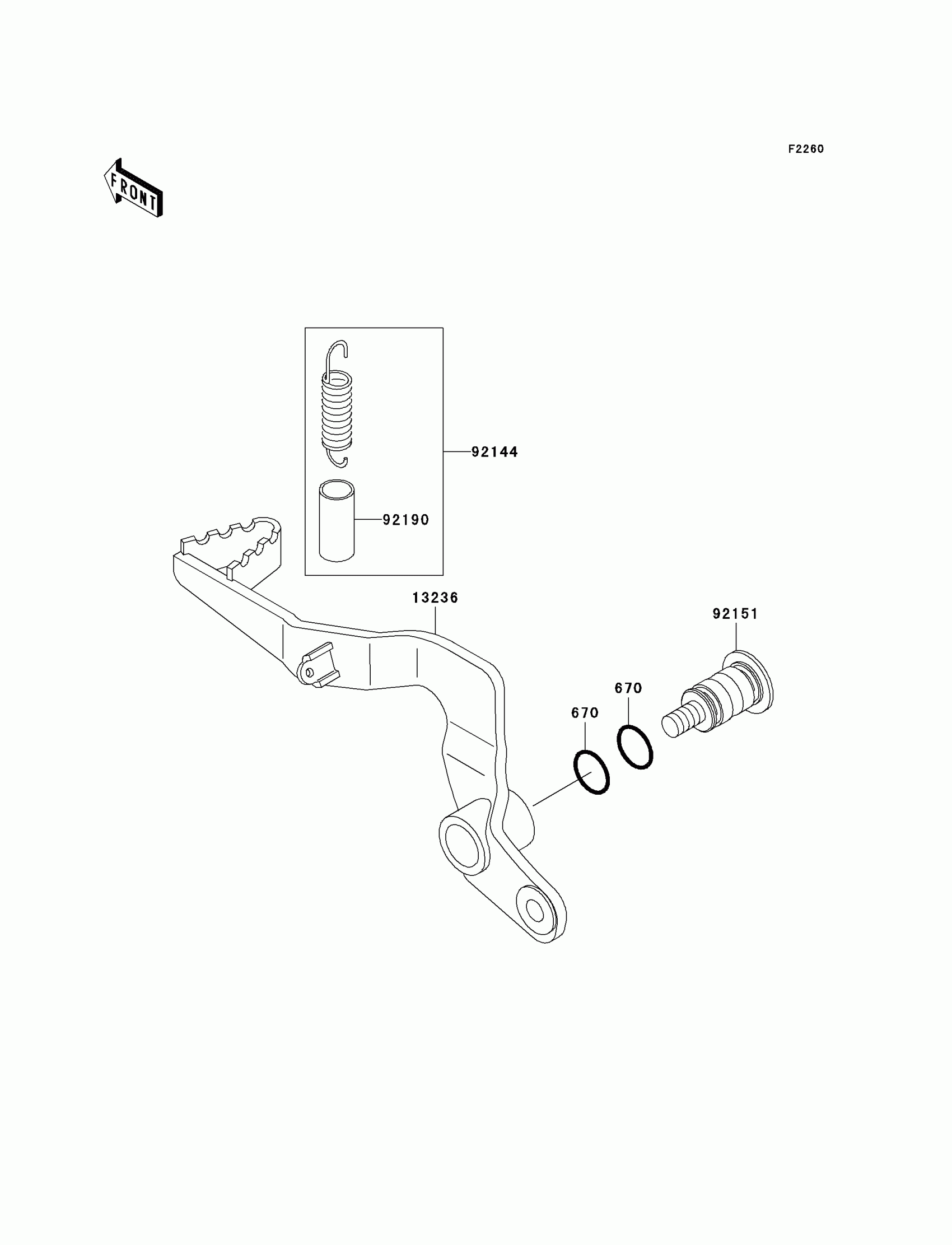

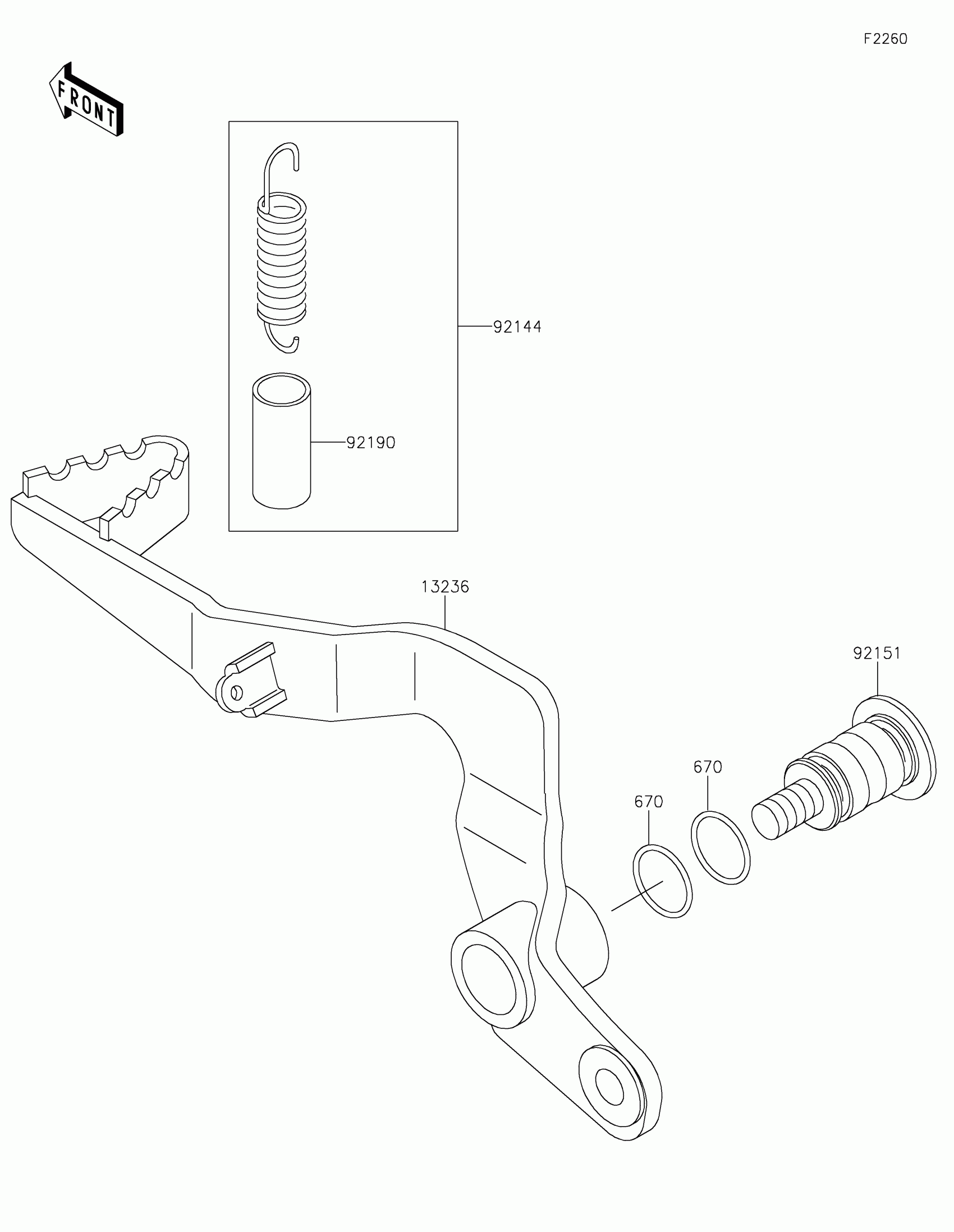

2009 Kawasaki KX™65 Brake Pedal Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

670

O RING,12MM

670B2012

1

$2.58

In stock

13236

LEVER-COMP,BRAKE PEDAL,STEEL

13236-1369

1
Out of stock

92144

1

$5.78

In stock

92151

1

$18.49

In stock

92190

TUBE,13X16X25

92190-1488

1

$3.11

In stock
← Transmission Front Brake →
