2026 Kawasaki KX™450X Chassis Electrical Equipment Diagram

← All diagrams

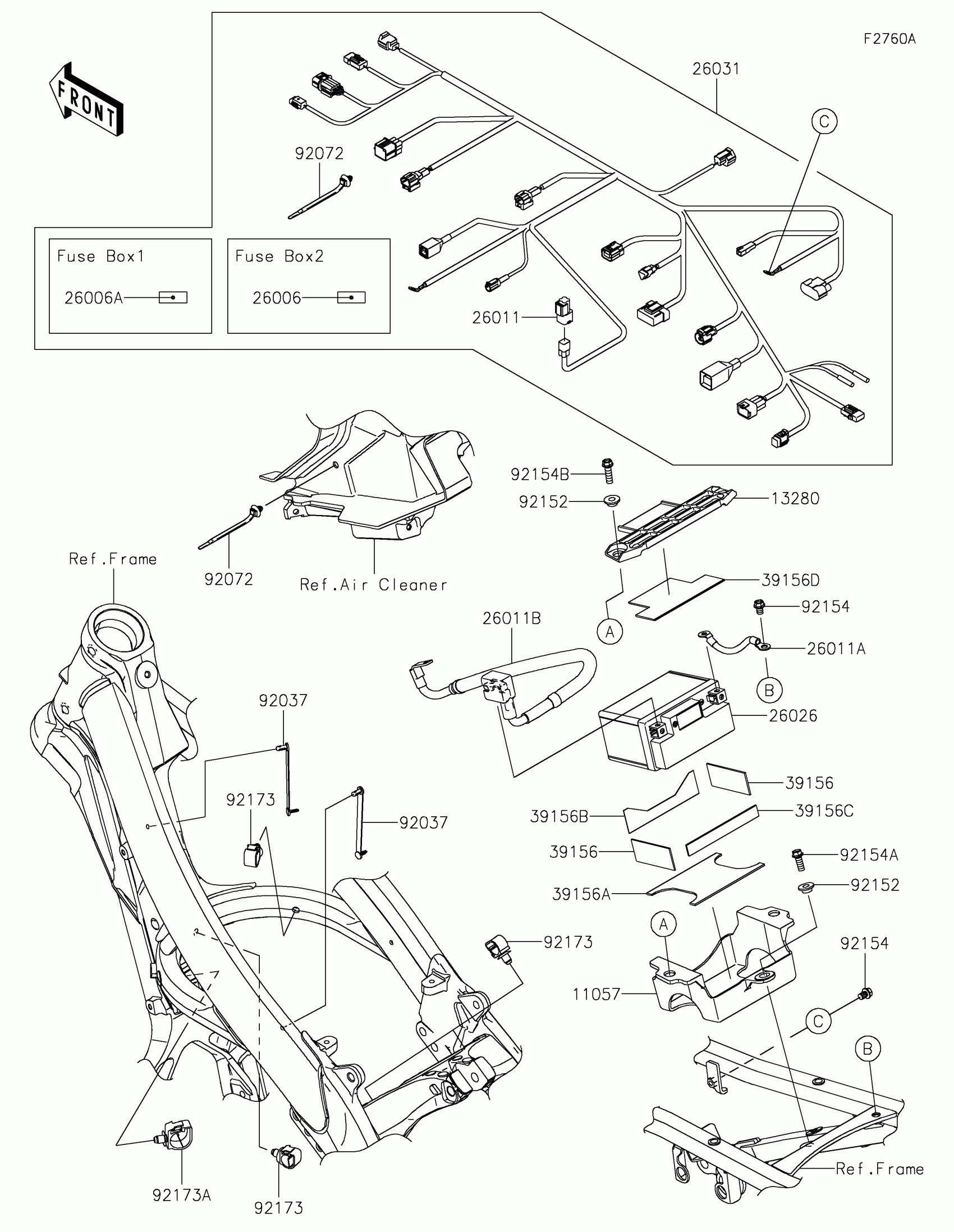

Find the part on the Chassis Electrical Equipment diagram for your 2026 Kawasaki KX™450X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2026 Kawasaki KX™450X Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,BATTERY CASE

11057-1550

1
Out of stock

13280

HOLDER,BATTERY COVER

13280-0912

1
Out of stock

26006

FUSE,MINI BLADE,2A,GRAY

26006-0052

1
Out of stock

26006A

FUSE,MINI BLADE,5A,TAN

26006-1077

1
Out of stock

26011

WIRE-LEAD,NATURAL

26011-0273

1
Out of stock

26011A

WIRE-LEAD,BATTERY(-)

26011-0997

1
Out of stock

26011B

WIRE-LEAD,BATTERY(+)

26011-2429

1
Out of stock

26026

BATTERY-LI-ION-STARTER,HJ01

26026-0003

1
Out of stock

26031

HARNESS,MAIN

26031-7113

1
Out of stock

39156

PAD,25X58X1.5

39156-2419

1
Out of stock

39156A

PAD,100X72X1.5

39156-2420

1
Out of stock

39156B

PAD,FR

39156-2640

1
Out of stock

39156C

PAD,RR

39156-2641

1
Out of stock

39156D

PAD,TOP

39156-2642

1
Out of stock

92037

CLAMP,SPEED,L=80.5

92037-1903

1
Out of stock

92072

BAND,OS170-FT7(BLACK)

92072-1414

—
Out of stock

92152

COLLAR,6.5X10X5.6

92152-0445

1
Out of stock

92154

BOLT,FLANGED,6X8

92154-2962

1
Out of stock

92154A

BOLT,FLANGED,6X16

92154-2965

1
Out of stock

92154B

BOLT,FLANGED,6X20

92154-2966

1
Out of stock

92173

CLAMP,12MM DIA.

92173-0736

1
Out of stock

92173A

CLAMP

92173-0861

1
Out of stock
