2023 Kawasaki KX™450X Ignition System Diagram

← All diagrams

Find the part on the Ignition System diagram for your 2023 Kawasaki KX™450X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

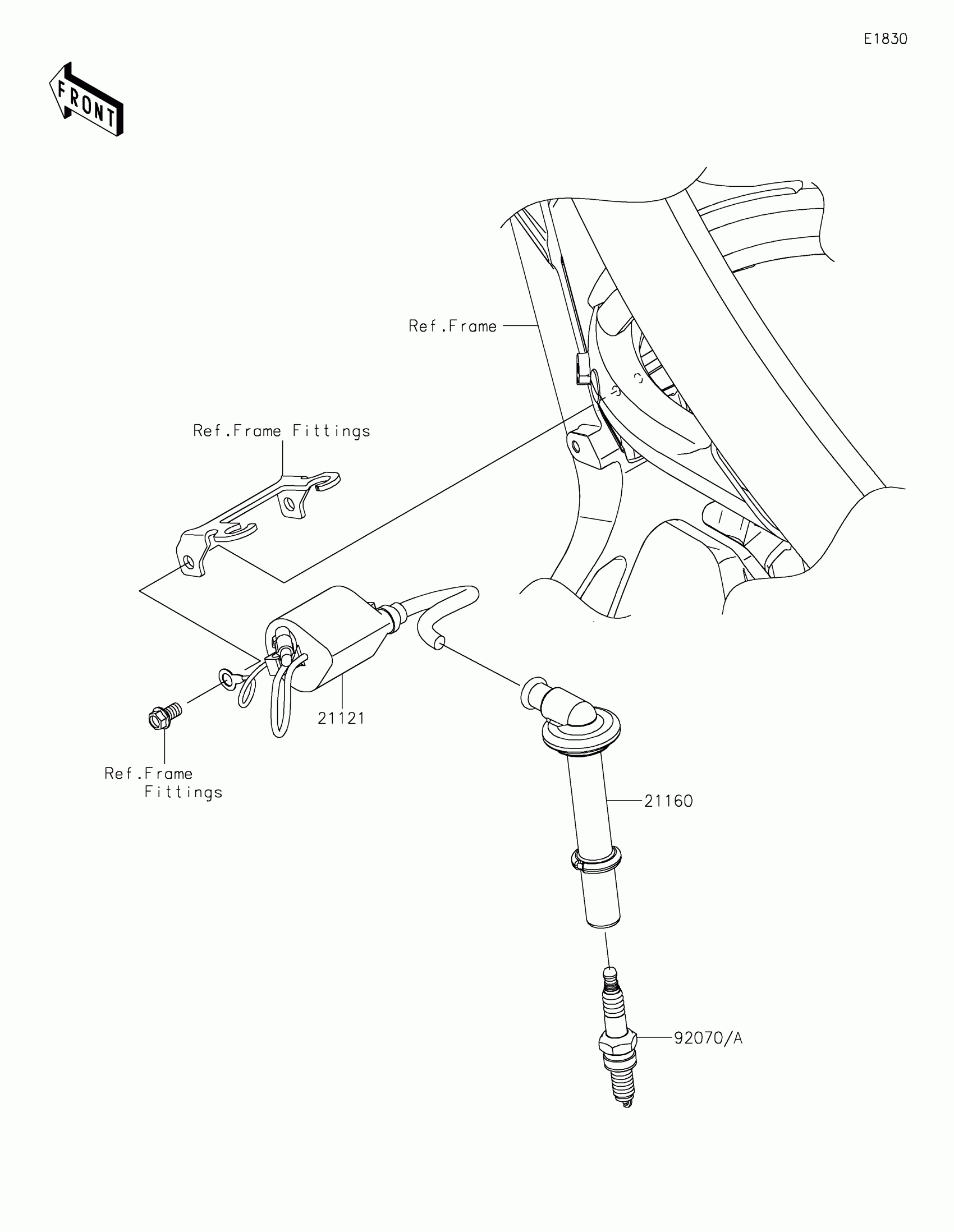

2023 Kawasaki KX™450X Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21121

COIL-IGNITION

21121-0723

1

$87.93

In stock

21160

CAP-ASSY-PLUG

21160-0024

1

$46.55

In stock

92070

1

$8.19

In stock

92070A

1

$8.19

In stock

92154

BOLT,FLANGED,6X18

92154-2976

1

$0.69

In stock
