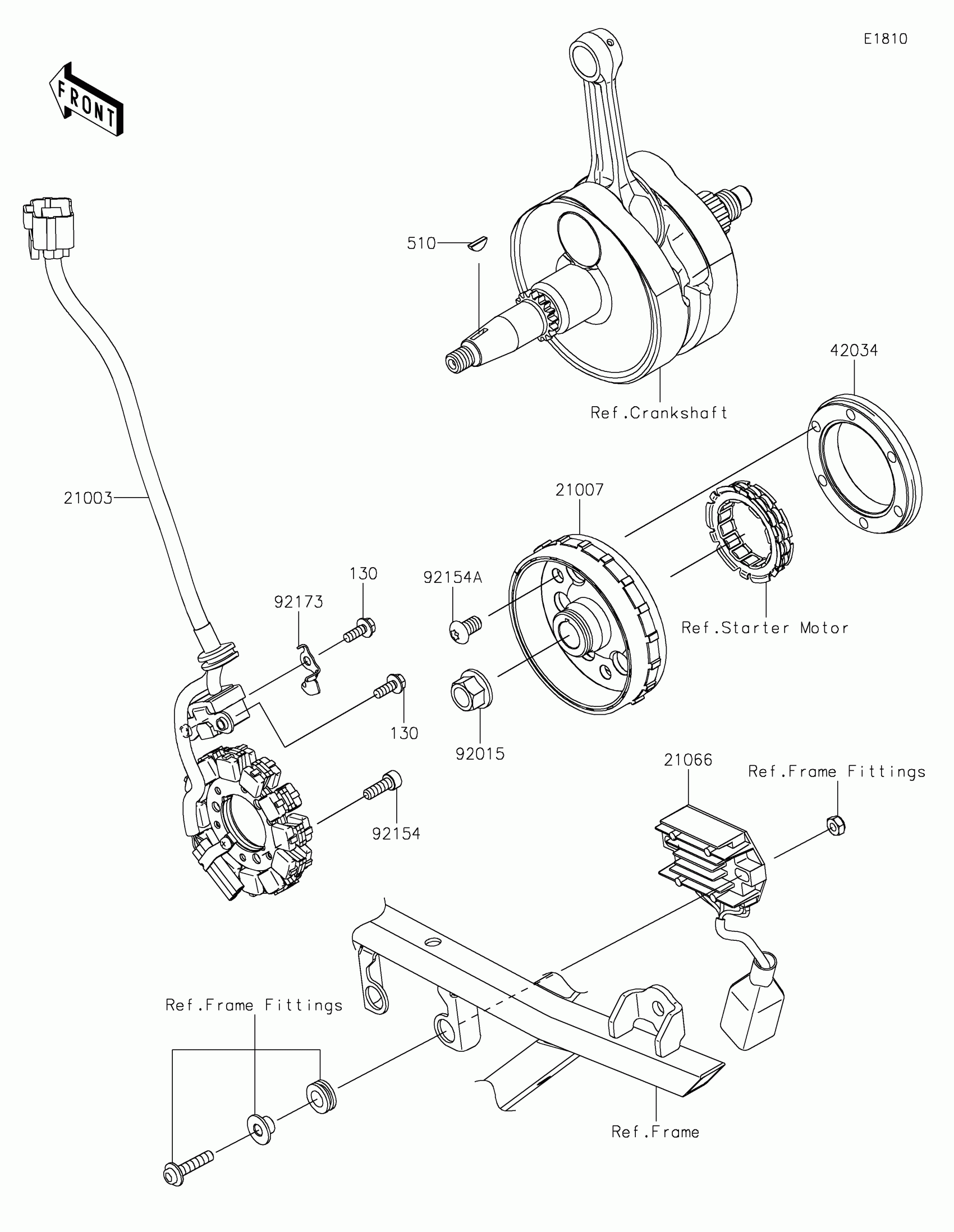

Find the part on the Generator diagram for your 2023 Kawasaki KX™450X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Kawasaki KX™450X Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21003

STATOR

21003-0184

1

$588.57

In stock

21007

ROTOR

21007-0667

1

$666.87

In stock

21066

REGULATOR-VOLTAGE

21066-0743

1

$203.44

In stock

42034

1

$109.97

In stock

92015

NUT,12MM

92015-1426

1

$5.84

In stock

92154

BOLT,SOCKET,6X18

92154-2947

1

$1.27

In stock

92154A

BOLT,TORX,8X14

92154-2994

1

$2.59

In stock

92173

CLAMP

92173-1855

1

$3.51

In stock

130

BOLT-FLANGED,5X14

130BA0514

1

$1.73

In stock

510

KEY-WOODRUFF

510A3200

1

$2.17

In stock
