2023 Kawasaki KX™450SR Gear Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Gear Change Drum/shift Fork diagram for your 2023 Kawasaki KX™450SR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

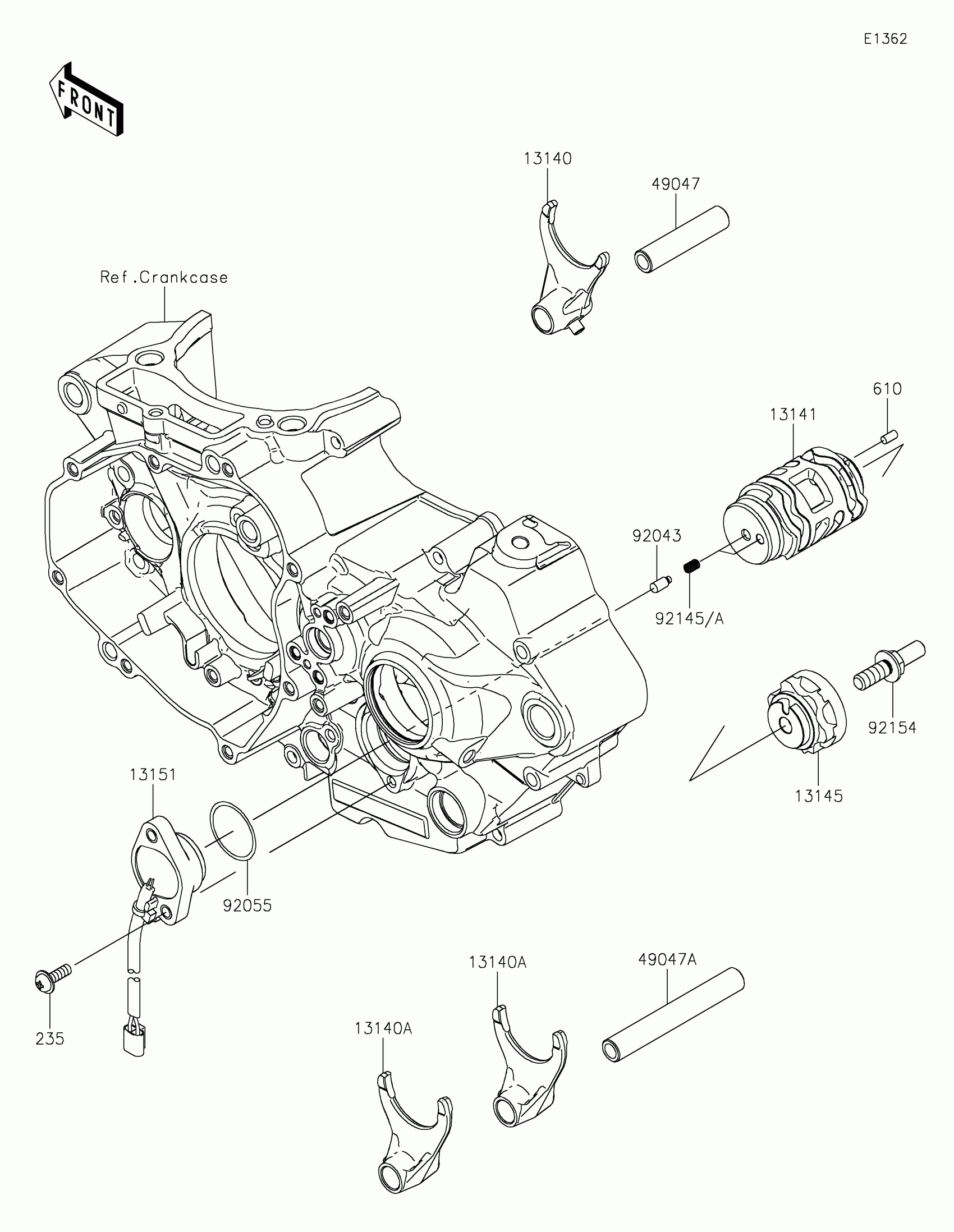

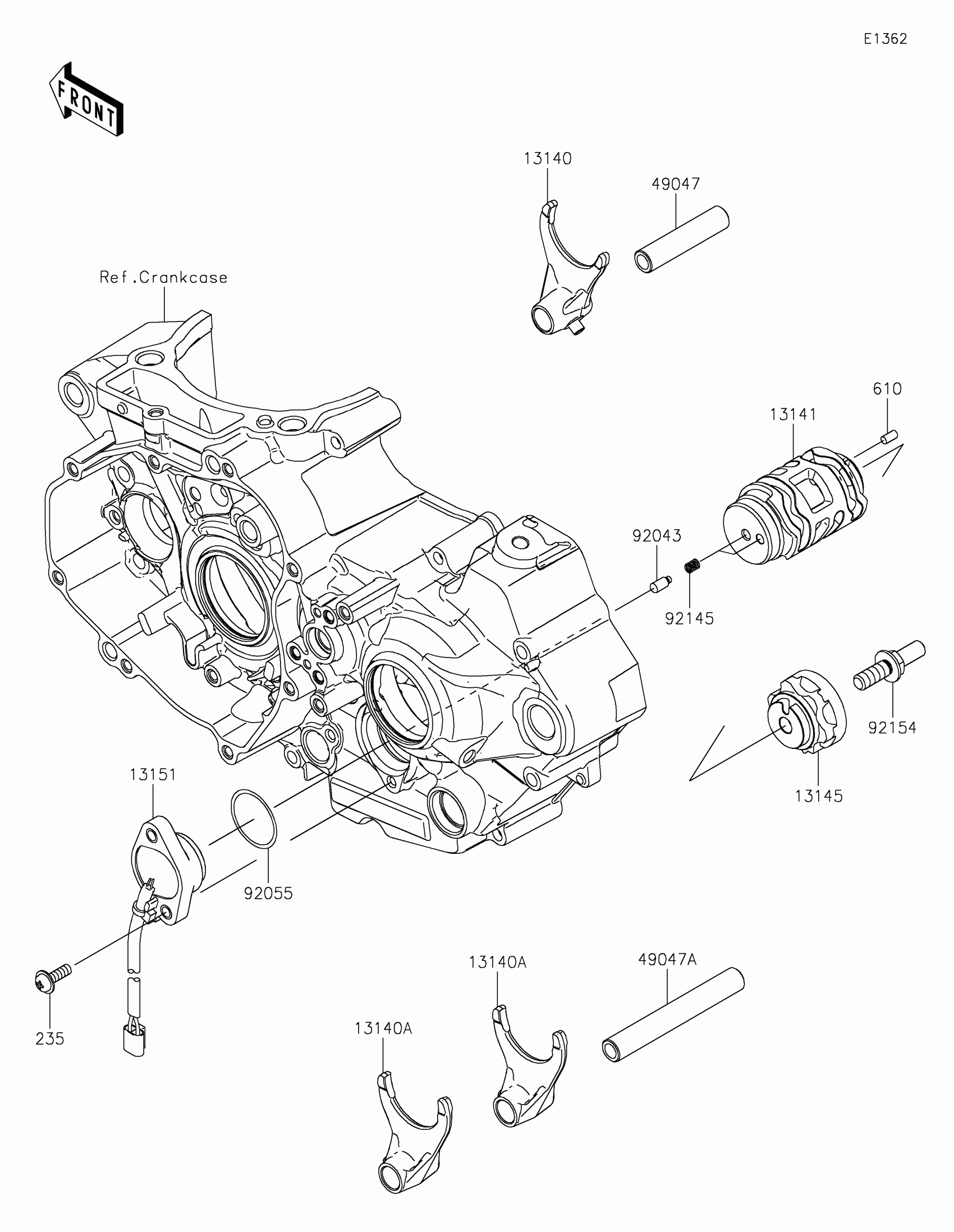

2023 Kawasaki KX™450SR Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13140

FORK-SHIFT,INPUT

13140-0647

1
Out of stock

13140A

FORK-SHIFT,OUTPUT

13140-0672

1
Out of stock

13141

DRUM-CHANGE

13141-0600

1
Out of stock

13145

CAM-CHANGE DRUM

13145-0563

1
Out of stock

13151

SWITCH-COMP,GEAR POSITION

13151-0581

1
Out of stock

49047

ROD-SHIFT,INPUT

49047-0628

1
Out of stock

49047A

ROD-SHIFT,OUTPUT

49047-0629

1
Out of stock

92043

PIN

92043-1654

1
Out of stock

92055

RING-O,27.7X2.4

92055-091

1
Out of stock

92145A

SPRING

92145-2256

1
Out of stock

92154

BOLT,8X20

92154-4341

1
Out of stock

235

SCREW-PAN-WP-CROS,5X16

235AB0516

1
Out of stock

610

ROLLER,4X8

610A0408

1
Out of stock
