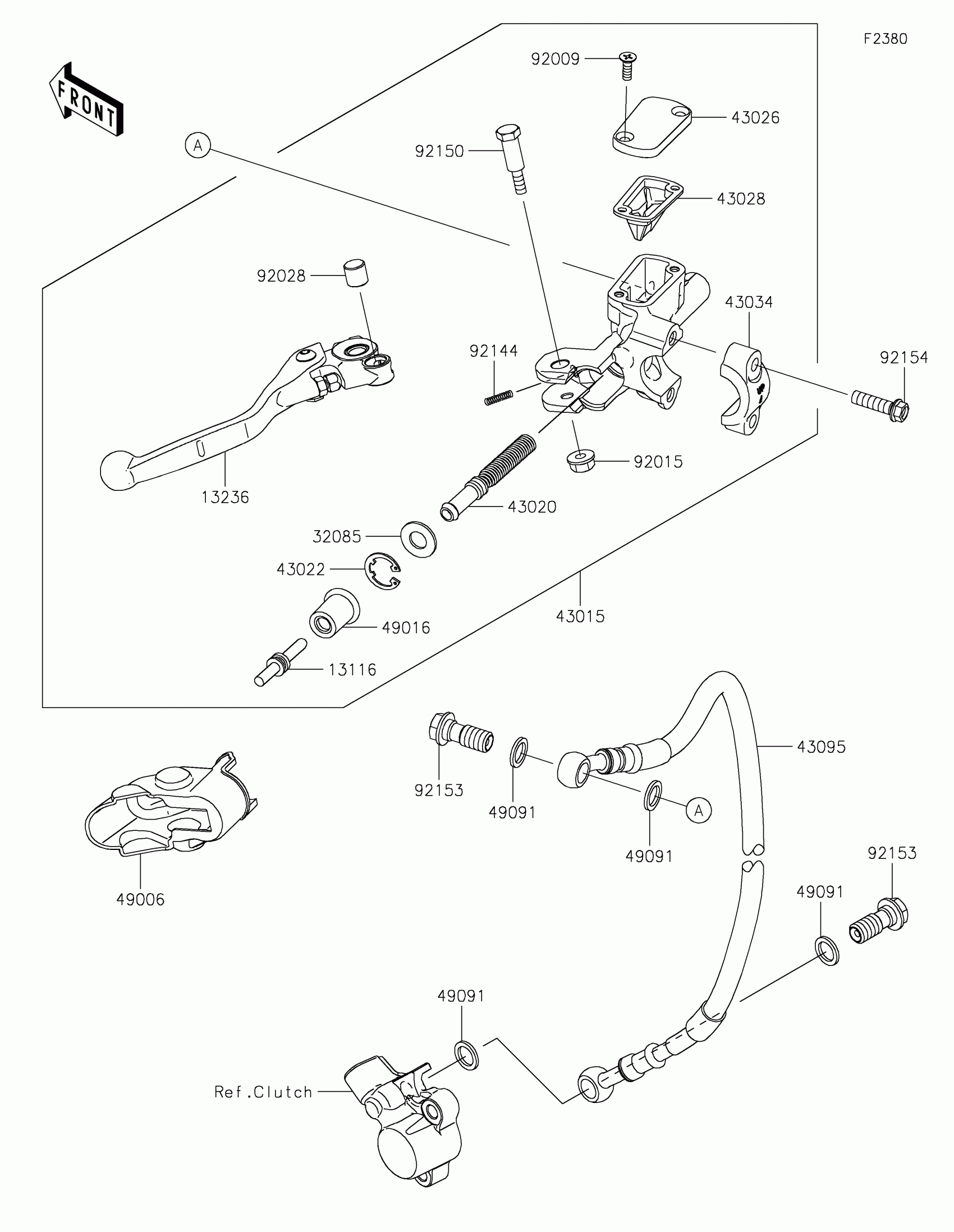

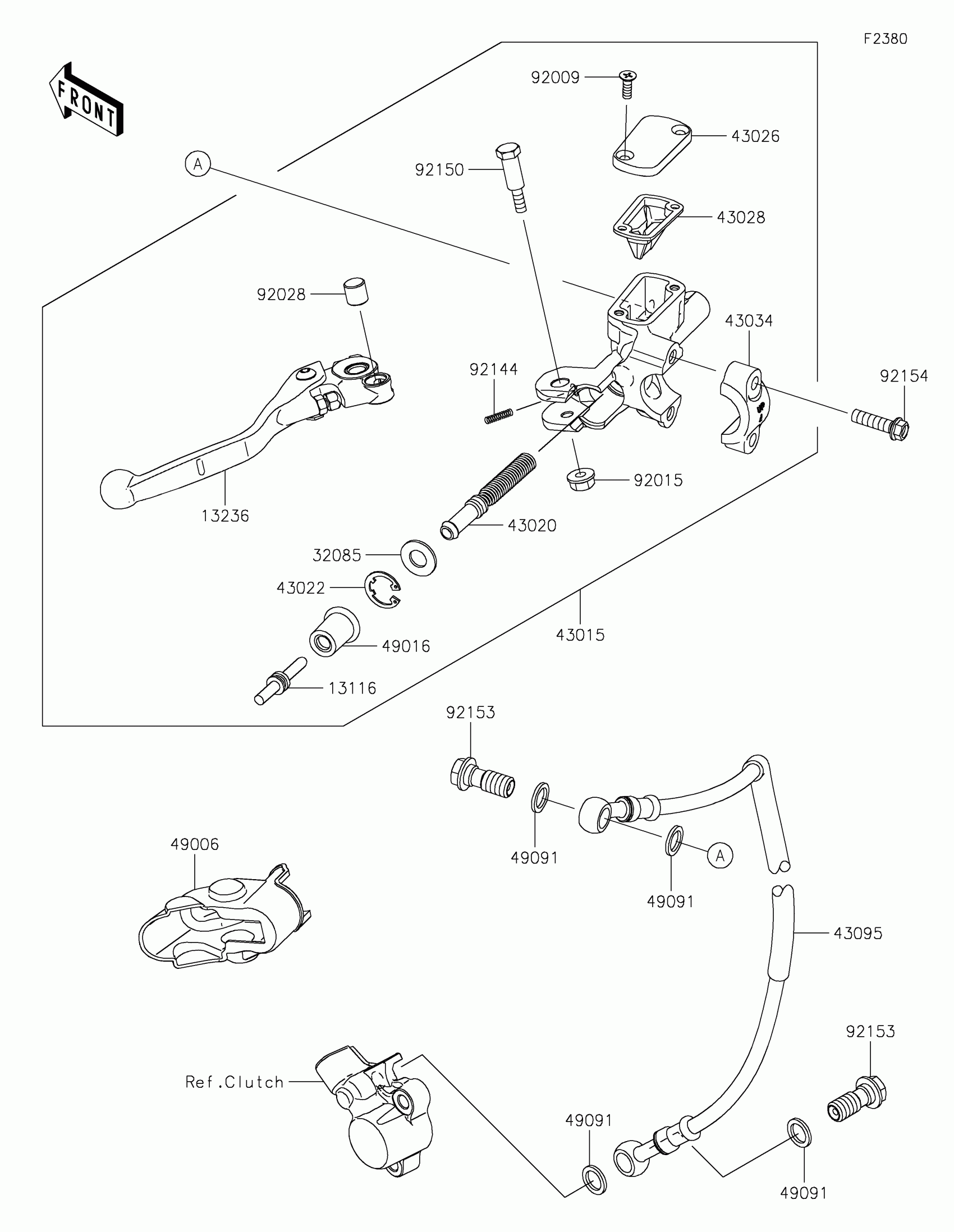

Kawasaki KX™450SR Clutch Master Cylinder Diagram

Description

Price

13116

ROD-PUSH

13116-0743

$12.24

13236

LEVER-COMP

13236-0813

$36.89

32085

STOPPER

32085-1508

$3.85

43015

CYLINDER-ASSY-MASTER,CLUTCH

43015-0742

$255.68

43020

PISTON-COMP-BRAKE

43020-0030

$52.28

43022

STOPPER-BRAKE,PISTON

43022-1010

$3.54

43026

CAP-BRAKE

43026-0030

$11.44

43028

DIAPHRAGM

43028-1092

$16.80

43034

HOLDER-BRAKE

43034-1110

$14.67

43095

HOSE-BRAKE,CLUTCH,1116MM

43095-1542

$141.56

49006

BOOT,CLUTCH M/CYL.

49006-0605

$10.05

49016

COVER-SEAL

49016-0663

$2.68

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.57

92009

SCREW

92009-1795

$3.34

92015

NUT,FLANGED,6MM

92015-1528

$4.18

92028

BUSHING,MASTER CYLINDER

92028-1310

$11.20

92144

SPRING,RETURN

92144-1725

$7.30

92150

BOLT,LEVER SET

92150-1451

$10.80

92153

BOLT,OIL,L=23

92153-1419

$2.98

92154

BOLT,6X22

92154-3780

$0.76
