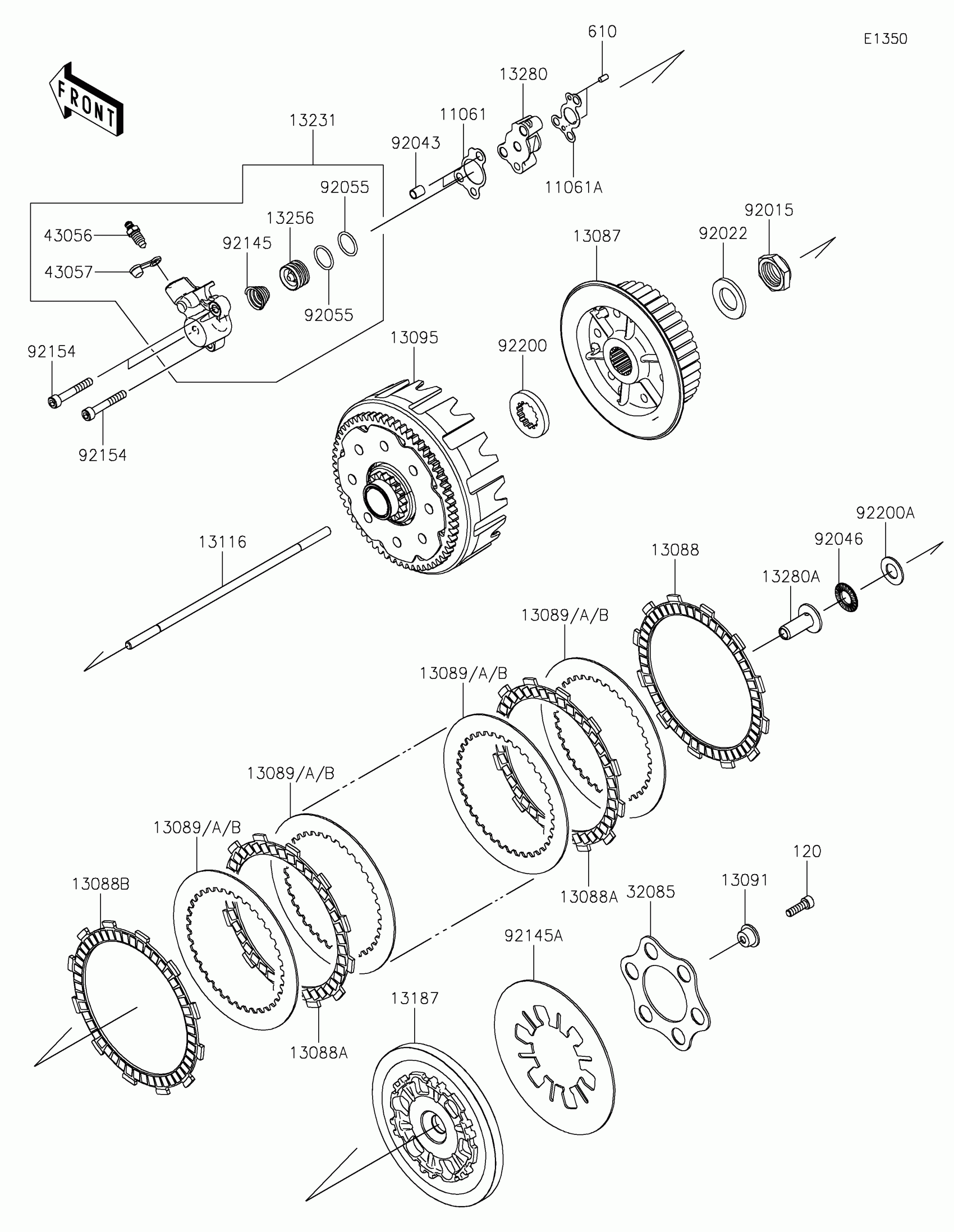

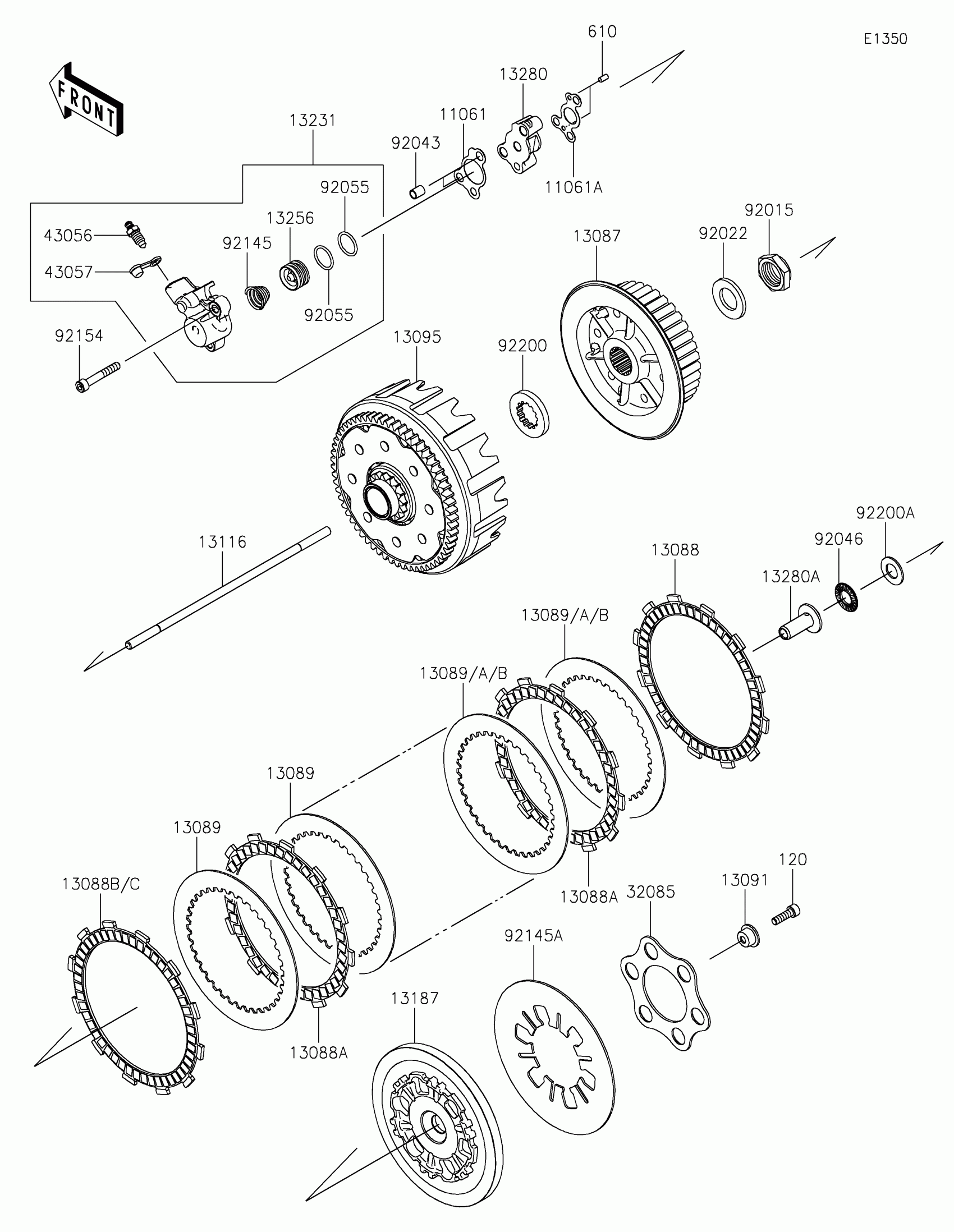

Kawasaki KX™450SR Clutch Diagram

#

Description
Price

11061

GASKET,RELEASE SIDE

11061-1295

$6.10

11061A

GASKET,CRANKCASE SIDE

11061-1296

$2.92

13087

HUB-CLUTCH

13087-0592

$104.22

13088

PLATE-FRICTION

13088-0573

$19.13

13088A

PLATE-FRICTION

13088-0604

$19.13

13088B

PLATE-FRICTION

13088-0619

$19.13

13089

PLATE-CLUTCH,T=1.6

13089-0559

$12.78

13089A

PLATE-CLUTCH,T=2.0

13089-0561

Unavailable

13089B

PLATE-CLUTCH,T=1.4

13089-0562

Unavailable

13091

HOLDER,CLUTCH SPRING

13091-1840

$4.65

13095

HOUSING-COMP-CLUTCH

13095-0603

$363.00

13116

ROD-PUSH

13116-0740

$66.66

13187

PLATE-CLUTCH OPERATING

13187-0036

$59.98

13231

RELEASE-ASSY-CLUTCH

13231-0010

$121.52

13256

PISTON

13256-0009

$55.25

13280

HOLDER,RELEASE BASE

13280-0916

$67.29

13280A

HOLDER,PUSHER

13280-0919

$40.30

32085

STOPPER

32085-0875

$32.66

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$4.91

92015

NUT,20MM

92015-1725

$18.89

92022

WASHER,20.3X36X3.7

92022-1868

$9.51

92043

PIN,DOWEL,8X10

92043-1302

$1.49

92046

BEARING-NEEDLE,FNTA-1326

92046-1190

$11.33

92055

RING-O

92055-0931

$3.26

92145

SPRING

92145-1863

$5.56

92145A

SPRING

92145-1942

$78.19

92154

BOLT,SOCKET,6X40

92154-3779

$1.94

92200

WASHER,25X41X5.5

92200-0245

$10.30

92200A

WASHER,13.4X25.0X1.5

92200-1548

$3.92

120

BOLT-SOCKET,6X20

120Q0620

Unavailable

610

ROLLER,4X8

610A0408

$4.31
