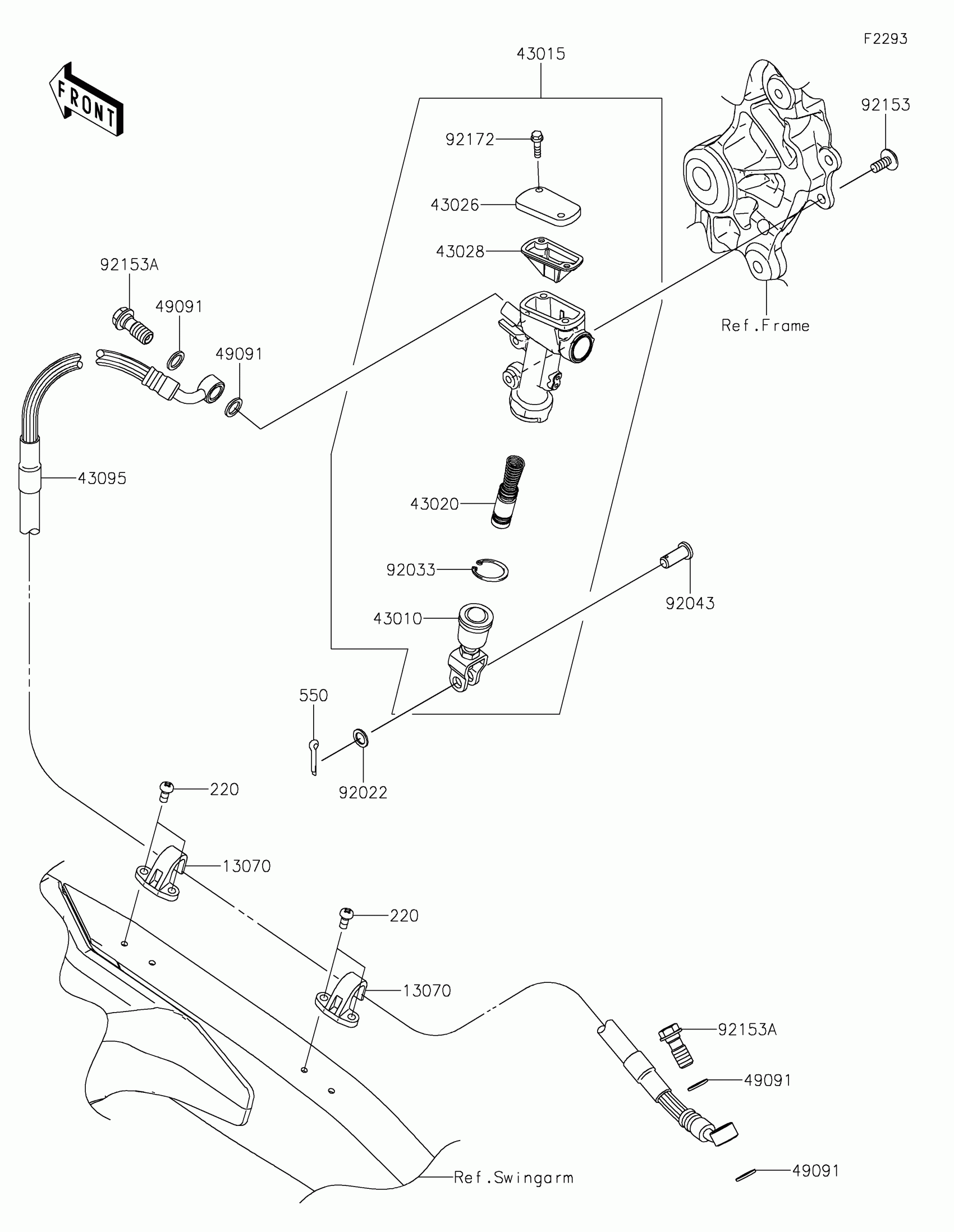

Find the part on the Rear Master Cylinder diagram for your 2020 Kawasaki KX™450, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

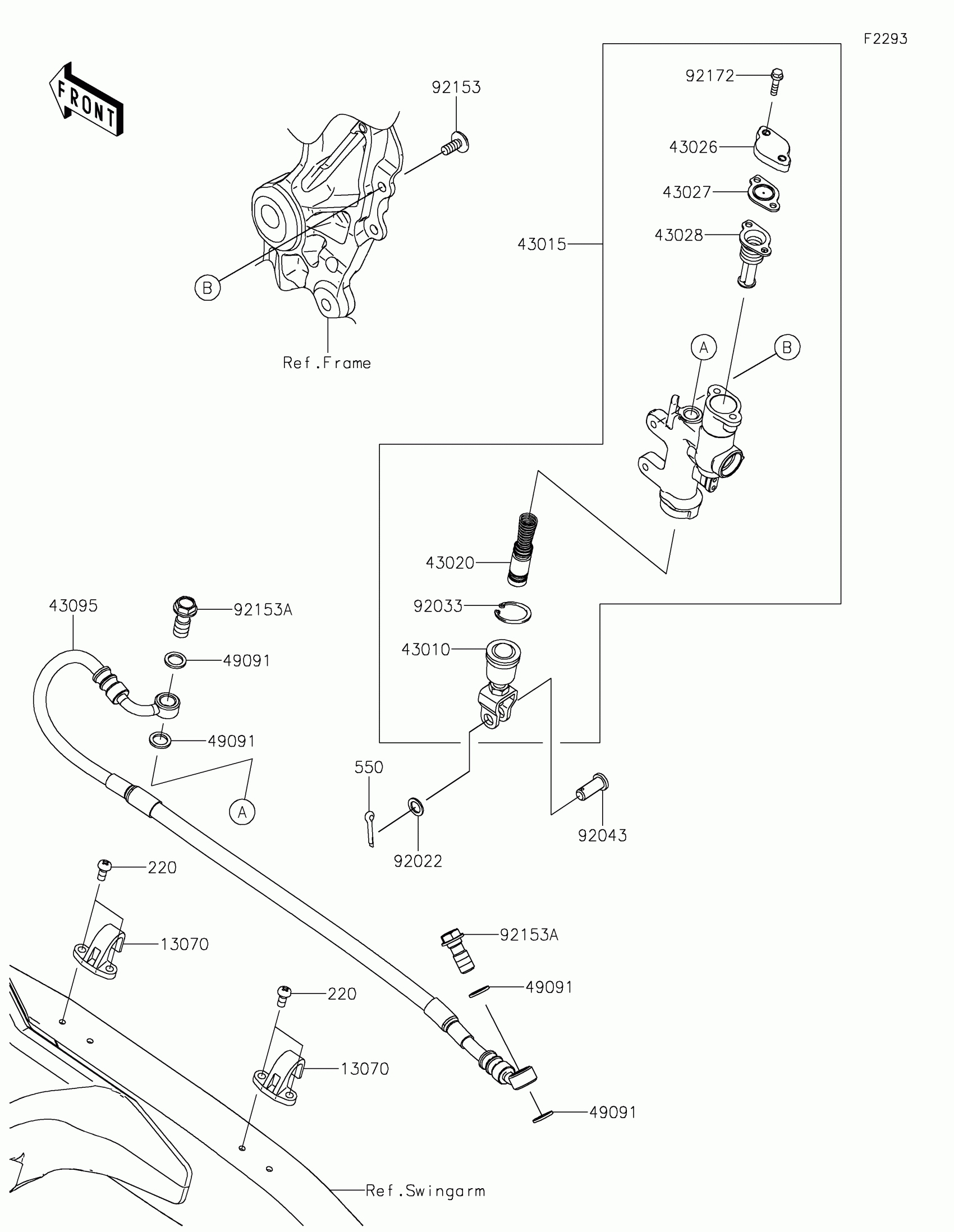

2020 Kawasaki KX™450 Rear Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13070

GUIDE,BRAKE HOSE

13070-0826

1
Out of stock

43010

ROD-ASSY-BRAKE

43010-1087

1
Out of stock

43015

CYLINDER-ASSY-MASTER,RR

43015-0694

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1094

1
Out of stock

43026

CAP-BRAKE

43026-0023

1
Out of stock

43028

DIAPHRAGM

43028-1092

1
Out of stock

43095

HOSE-BRAKE,RR,555MM

43095-1546

1
Out of stock

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

1
Out of stock

92022

WASHER,8.5X13X1

92022-1028

1
Out of stock

92033

RING-SNAP,20.9X24.6X1.2

92033-0079

1
Out of stock

92043

PIN

92043-0004

1
Out of stock

92153

BOLT,SOCKET,6X14

92153-1021

1
Out of stock

92153A

BOLT,OIL,L=23

92153-1419

1
Out of stock

92172

SCREW

92172-1064

1
Out of stock

220

SCREW-PAN-CROS,5X10

220AA0510

1
Out of stock

550

PIN-COTTER,2.0X15

550AA2015

1
Out of stock
