2020 Kawasaki KX™450 Rear Brake Diagram

← All diagrams

Find the part on the Rear Brake diagram for your 2020 Kawasaki KX™450, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

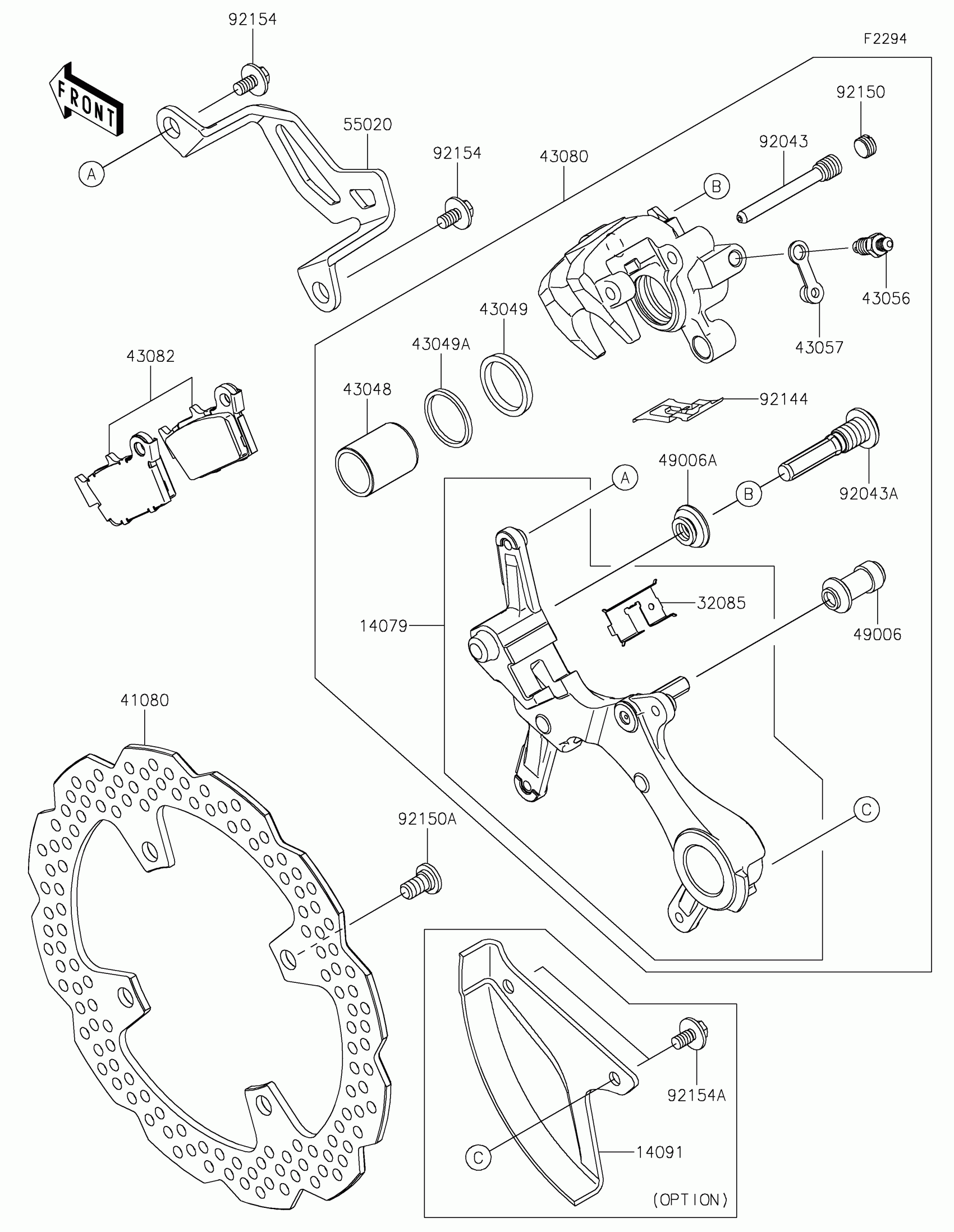

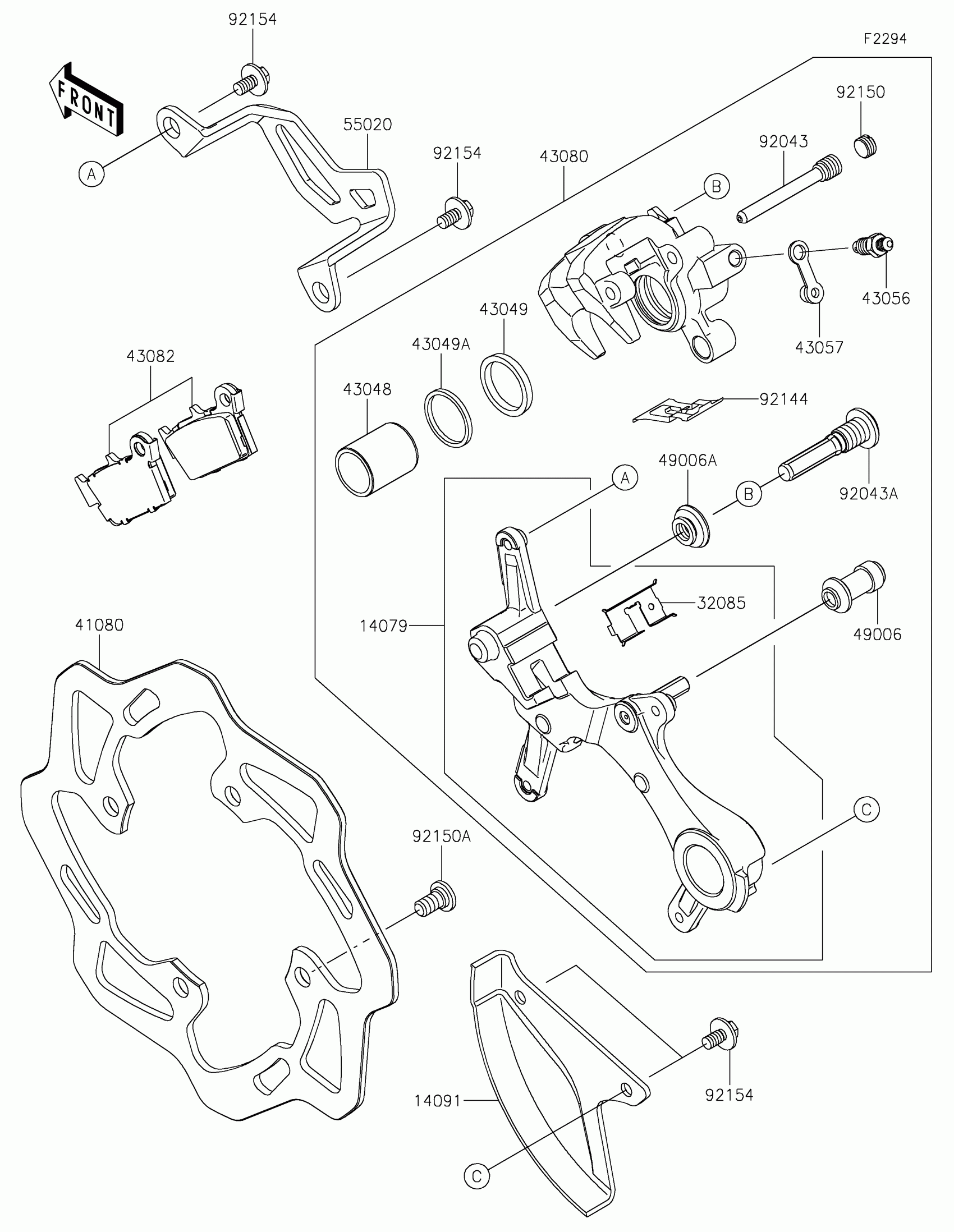

2020 Kawasaki KX™450 Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14079

1

$160.14

In stock

14091

COVER,REAR DISC,EBONY

14091-1523-6C

1

$32.77

In stock

32085

STOPPER,PAD

32085-1386

1

$7.04

In stock

41080

DISC,RR,250MM,WAVE

41080-0693

1

$353.33

In stock

43048

PISTON-CALIPER

43048-1066

1

$74.44

In stock

43049

PACKING

43049-1063

1

$6.39

In stock

43049A

PACKING

43049-1064

1

$4.88

In stock

43056

BREATHER

43056-1055

1
Out of stock

43057

CAP-BREATHER

43057-1001

1

$3.89

In stock

43080

CALIPER-SUB-ASSY,RR

43080-0193

1

$284.33

In stock

43082

PAD-ASSY-BRAKE

43082-0183

1

$41.99

In stock

49006

BOOT,CALIPER

49006-1088

1

$9.20

In stock

49006A

BOOT,CALIPER

49006-1242

1

$4.34

In stock

55020

GUARD,REAR CALIPER,EBONY

55020-0458-6C

1

$30.46

In stock

92043

PIN,HANGER

92043-1507

1

$10.88

In stock

92043A

PIN

92043-1508

1

$10.88

In stock

92144

SPRING,PAD

92144-1819

1

$6.39

In stock

92150

BOLT,PLUG

92150-1692

1

$6.24

In stock

92150A

1

$3.97

In stock

92154

BOLT,FLANGED,6X12

92154-2970

1

$0.88

In stock
