2020 Kawasaki KX™450 Brake Pedal Diagram

← All diagrams

Find the part on the Brake Pedal diagram for your 2020 Kawasaki KX™450, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

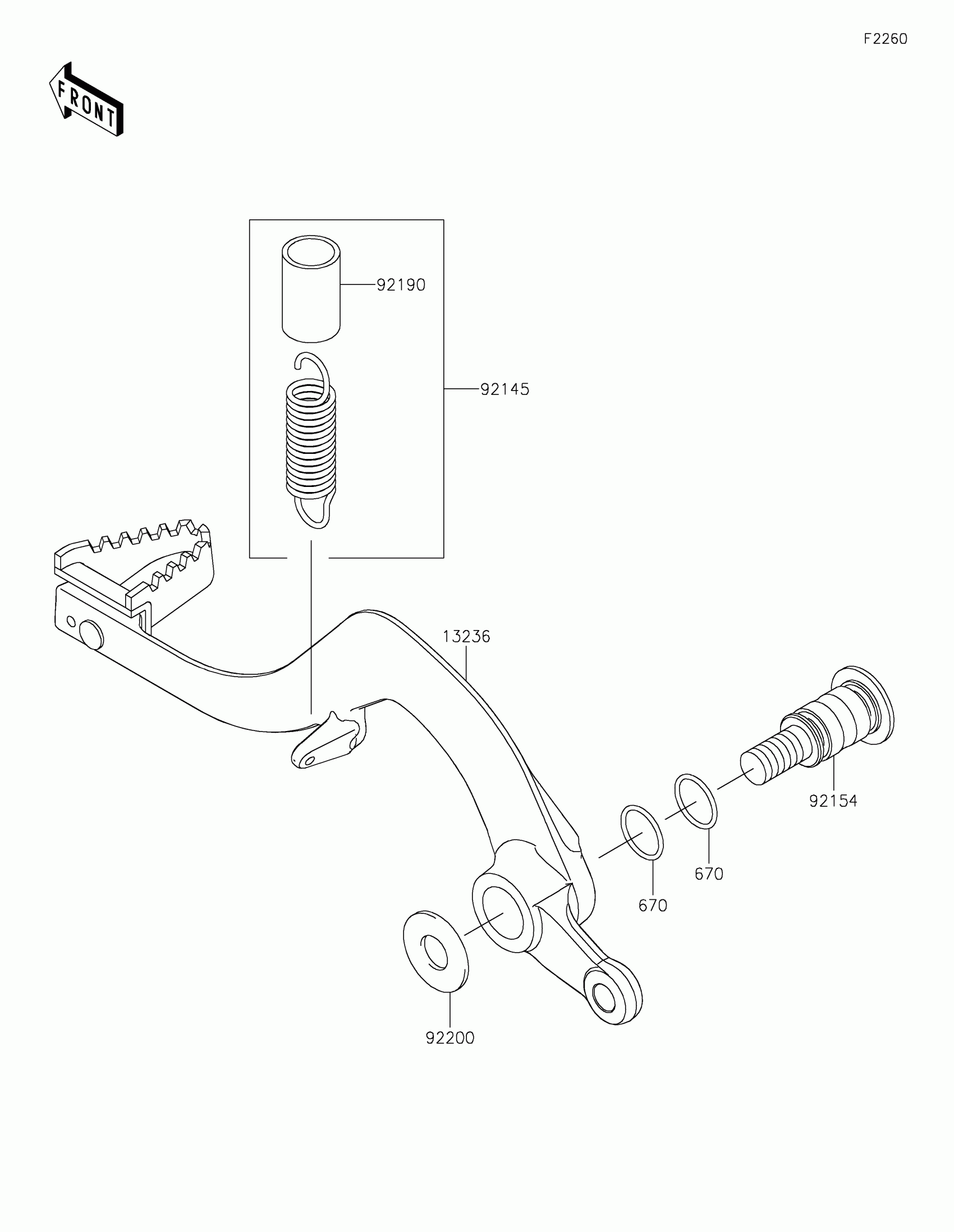

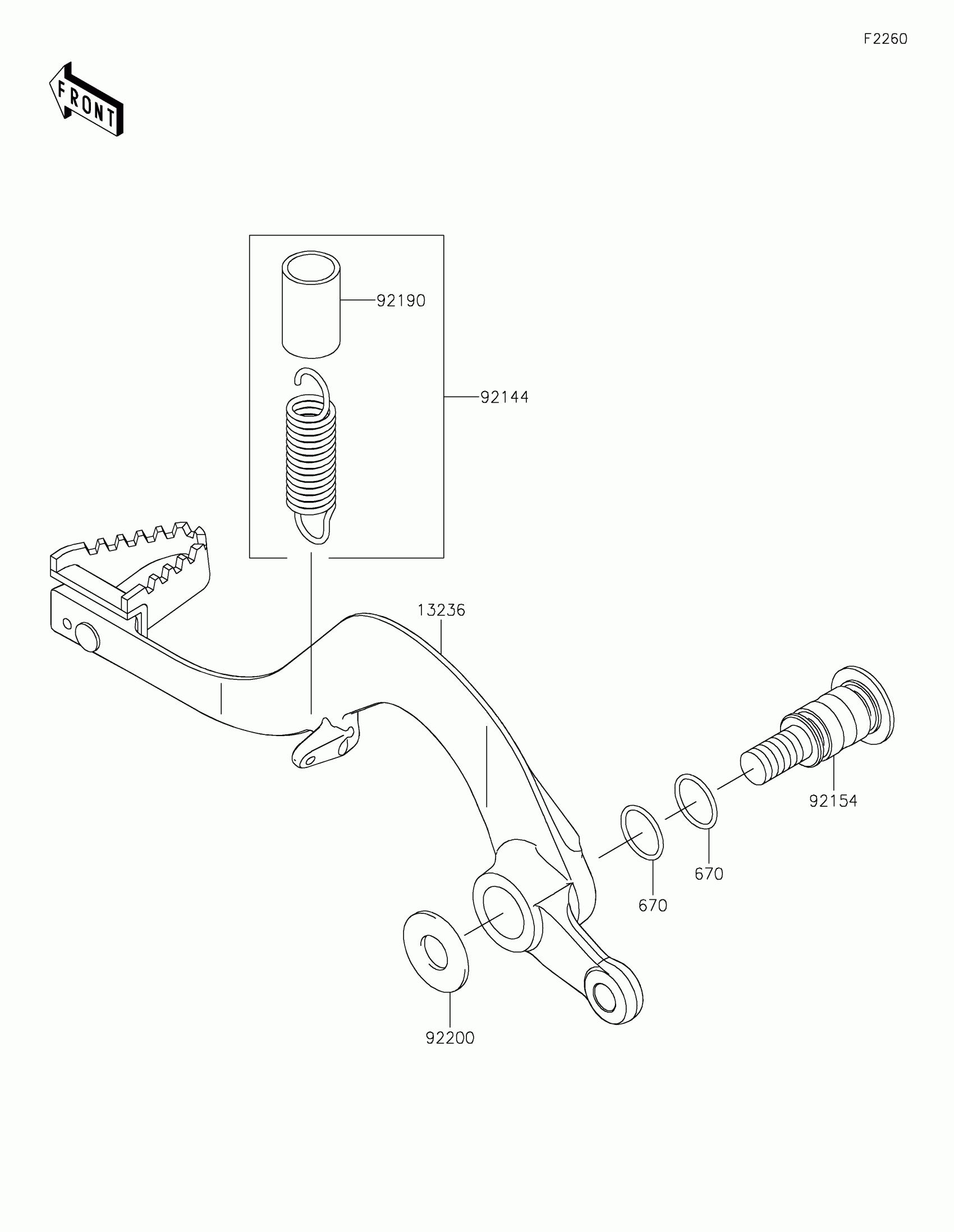

2020 Kawasaki KX™450 Brake Pedal Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13236

1

$115.10

In stock

92144

1

$5.78

In stock

92154

BOLT,BRAKE PEDAL,10MM

92154-0516

1
Out of stock

92190

TUBE,13X16X25

92190-1488

1

$3.11

In stock

92200

WASHER,10.5X24X1.5

92200-0154

1
Out of stock

670

O RING,12MM

670B2012

1

$2.58

In stock
