2024 Kawasaki KX™250X Shock Absorber Diagram

← All diagrams

Find the part on the Shock Absorber diagram for your 2024 Kawasaki KX™250X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

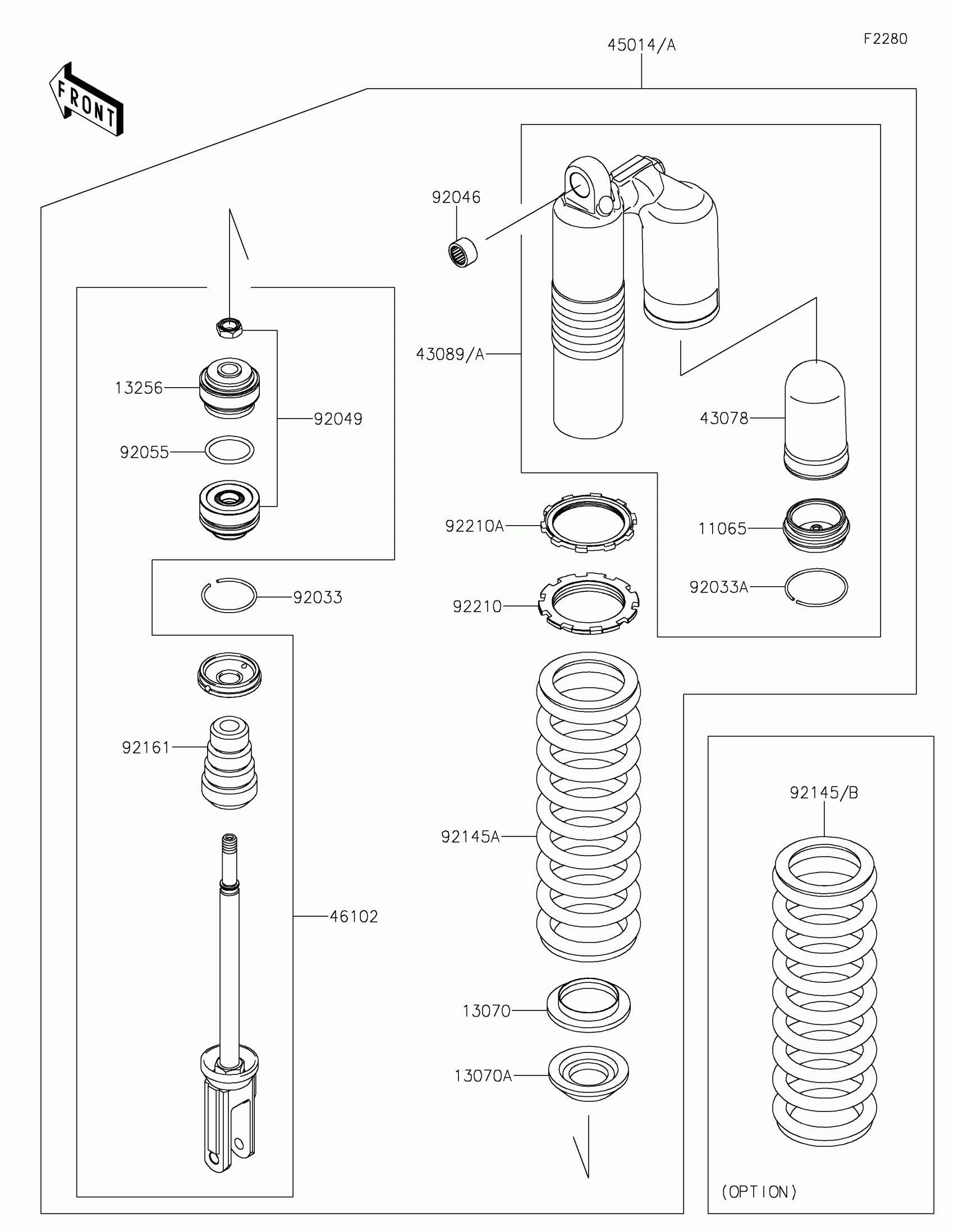

2024 Kawasaki KX™250X Shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP,SUB-TANK

11065-1355

1

$36.83

In stock

13070

GUIDE,SPRING

13070-0095

1

$13.90

In stock

13070A

GUIDE,SPRING

13070-0953

1

$30.46

In stock

13256

PISTON,SHOCKABSORBER

13256-0006

1
Out of stock

43078

1

$29.21

In stock

43089A

1

$846.10

In stock

45014A

SHOCKABSORBER

45014-0721

1

$1,213.63

In stock

46102

ROD,PISTON

46102-0663

1

$1,059.16

In stock

92033

RING-SNAP

92033-0044

1

$4.92

In stock

92033A

RING-SNAP

92033-0826

1

$3.93

In stock

92046

BEARING-NEEDLE,7E-HVS16X22X12

92046-1301

1
Out of stock

92049

SEAL-OIL

92049-0116

1
Out of stock

92055

RING-O

92055-0165

1

$11.42

In stock

92145

1

$222.20

In stock

92145A

1

$222.20

In stock

92145B

1

$222.38

In stock

92161

1

$20.63

In stock

92210

NUT,SPRING ADJUST

92210-0494

1
Out of stock

92210A

NUT,SPRING ADJUST LOCK

92210-0495

1
Out of stock
