2024 Kawasaki KX™250X Front Hub Diagram

← All diagrams

Find the part on the Front Hub diagram for your 2024 Kawasaki KX™250X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

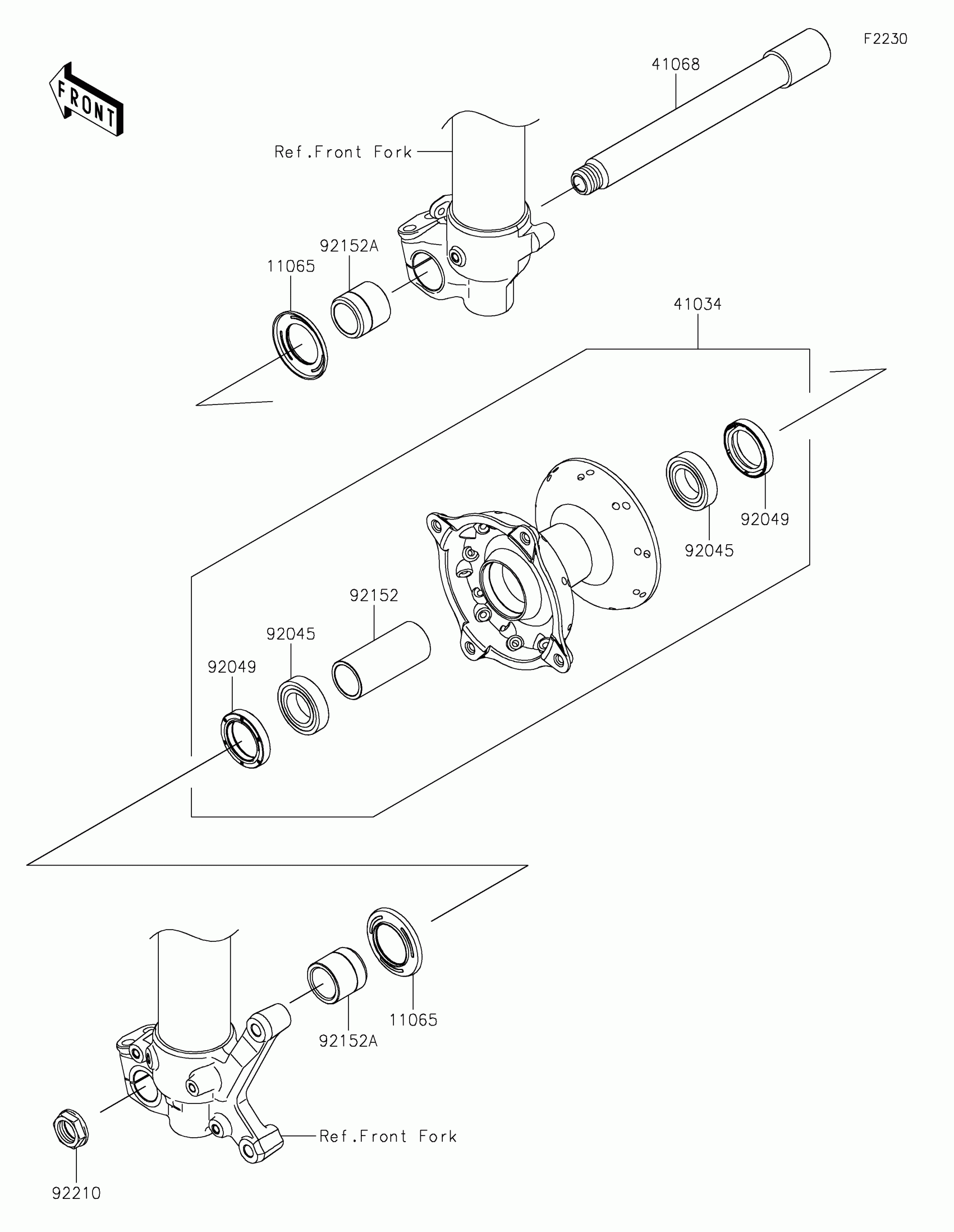

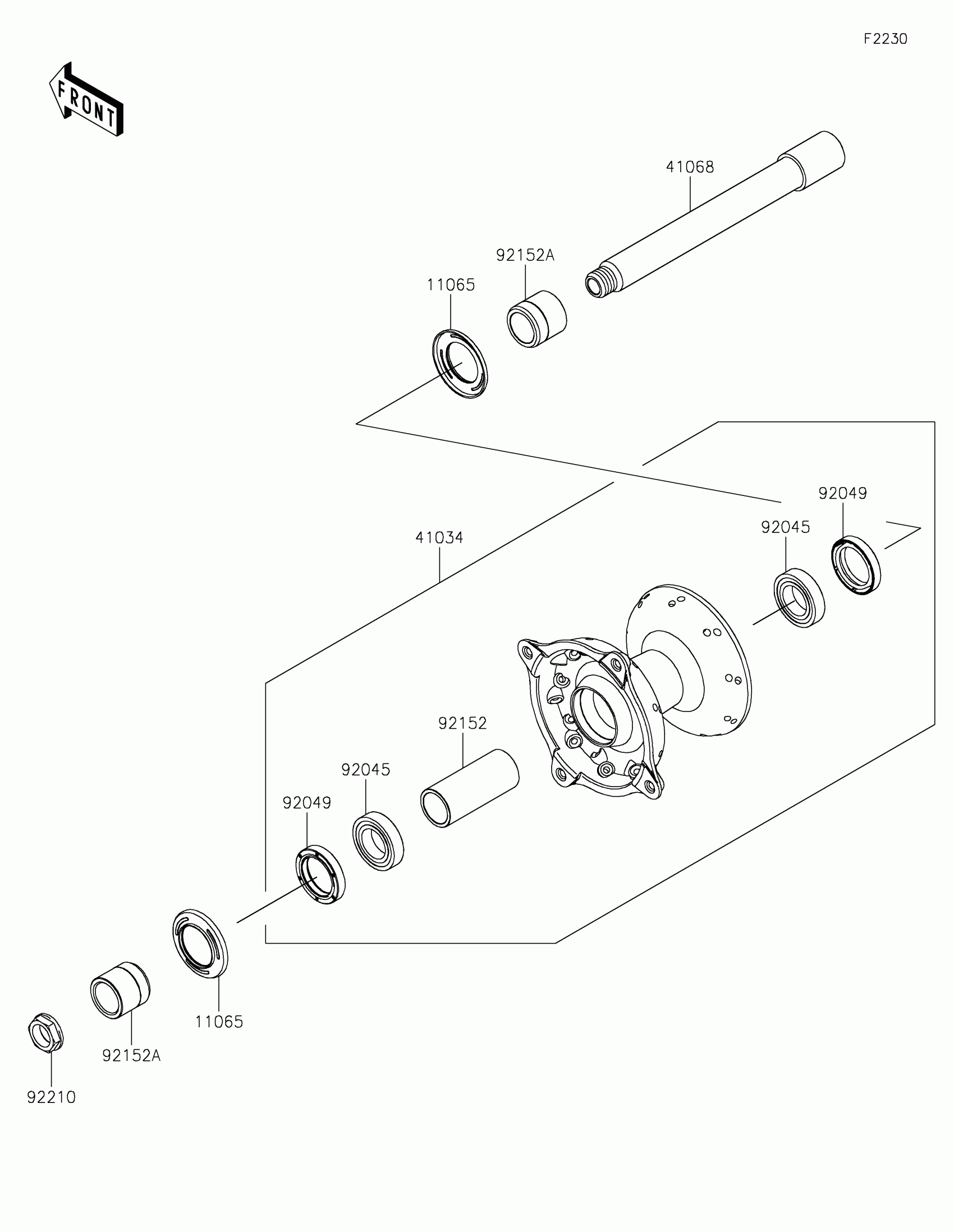

2024 Kawasaki KX™250X Front Hub Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP,AXLE

11065-1281

1

$7.76

In stock

41034

1

$279.72

In stock

41068

AXLE,FR,22X186,M18

41068-0633

1

$68.46

In stock

92045

1

$29.28

In stock

92049

SEAL-OIL,30X40X7

92049-0810

1

$12.86

In stock

92152

COLLAR,22.4X28X65

92152-2469

1

$19.25

In stock

92152A

COLLAR,22X30X27.5

92152-2470

1

$41.11

In stock

92210

NUT,18MM

92210-0065

1
Out of stock
