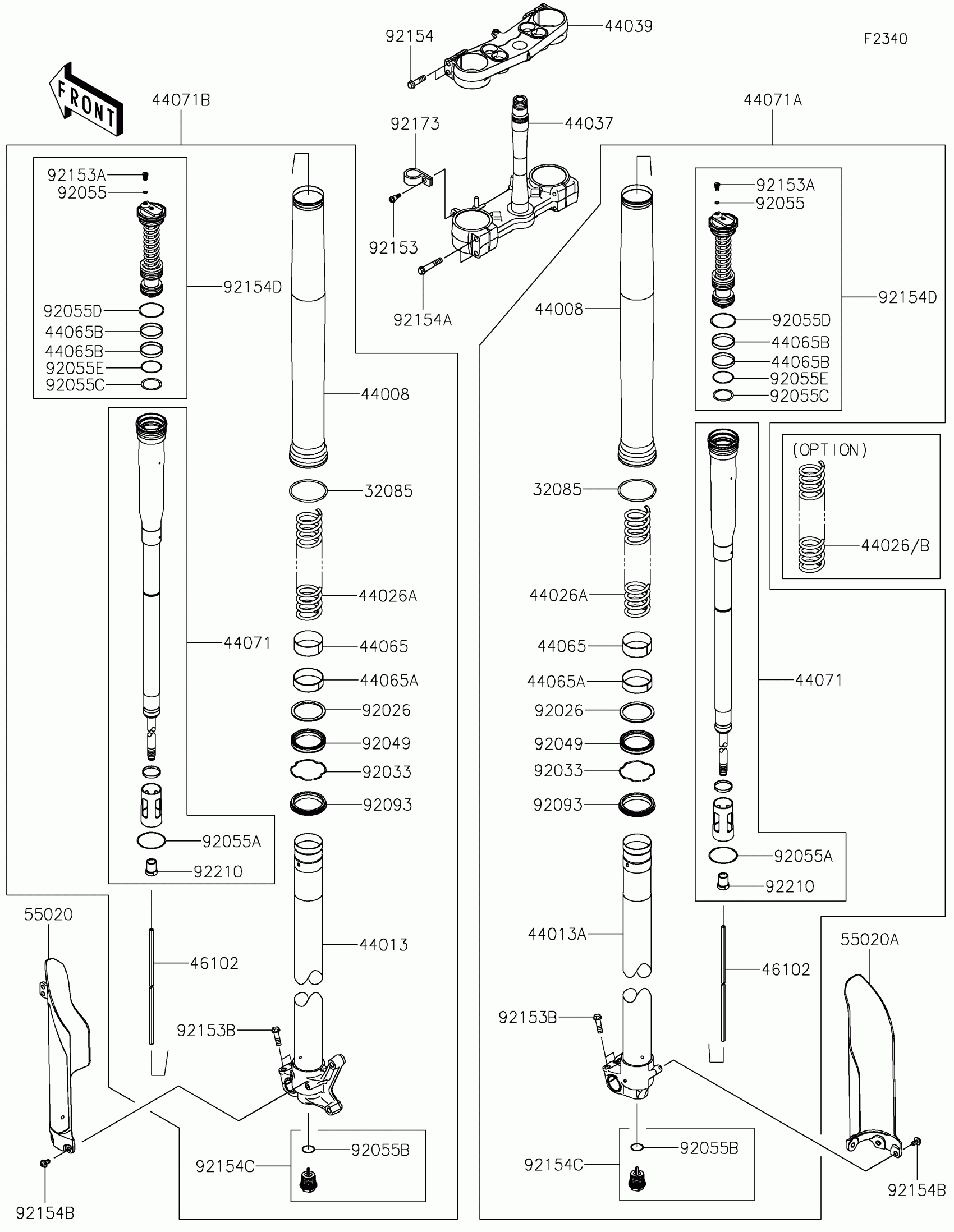

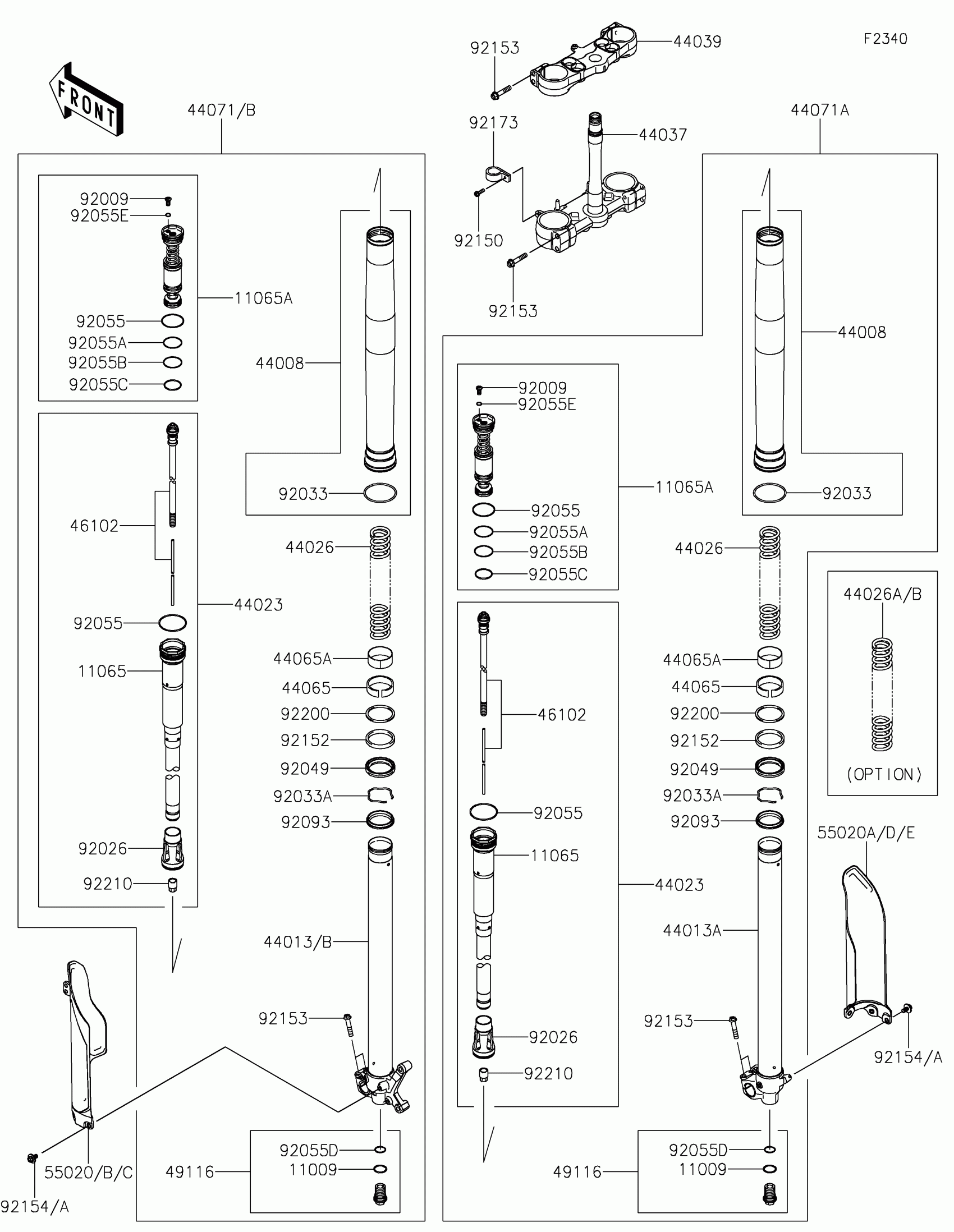

2024 Kawasaki KX™250X Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 2024 Kawasaki KX™250X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Kawasaki KX™250X Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$4.88

In stock

11065

CAP,CYLINDER COMP

11065-1333

1

$371.25

In stock

11065A

CAP,BASE VALVE

11065-1379

1

$347.59

In stock

44008

PIPE-FORK OUTER

44008-0051

1

$650.80

In stock

44013A

PIPE-FORK INNER,RH

44013-0360

1

$586.30

In stock

44013B

PIPE-FORK INNER,LH

44013-0385

1

$586.31

In stock

44023

CYLINDER-SET-FORK

44023-0176

1

$952.62

In stock

44026

SPRING-FRONT FORK

44026-0267

1

$119.59

In stock

44026A

1

$119.59

In stock

44026B

1

$119.59

In stock

44037

HOLDER-FORK UNDER

44037-0196

1

$616.73

In stock

44039

1

$256.02

In stock

44065

BUSHING-FRONT FORK

44065-0021

1

$20.15

In stock

44065A

BUSHING-FRONT FORK

44065-0022

1

$21.05

In stock

44071A

DAMPER-ASSY,FORK,RH

44071-1504

1

$1,776.42

In stock

44071B

DAMPER-ASSY,FORK,LH

44071-1527

1

$1,776.42

In stock

46102

ROD,CYLINDER COMP

46102-0662

1

$533.42

In stock

49116

VALVE-ASSY

49116-0020

1

$201.70

In stock

55020

GUARD,FORK,LH,EBONY

55020-1938-6C

1

$61.07

In stock

55020A

GUARD,FORK,RH,EBONY

55020-1939-6C

1

$61.07

In stock

55020B

GUARD,FORK,LH,L.GREEN

55020-2231-290

1

$57.05

In stock

55020D

GUARD,FORK,RH,L.GREEN

55020-2232-290

1

$57.05

In stock

92009

SCREW

92009-1884

1
Out of stock

92026

SPACER

92026-0878

1

$72.49

In stock

92033

RING-SNAP

92033-0075

1

$3.66

In stock

92033A

RING-SNAP

92033-1329

1

$5.45

In stock

92049

SEAL-OIL

92049-0832

1

$21.46

In stock

92055

RING-O

92055-0106

1

$4.95

In stock

92055A

RING-O

92055-0116

1

$4.95

In stock

92055B

RING-O

92055-0117

1

$4.95

In stock

92055C

RING-O

92055-0730

1

$4.76

In stock

92055D

RING-O

92055-1156

1

$1.25

In stock

92055E

RING-O,2.8X6.6X1.9

92055-1441

1

$3.45

In stock

92093

1

$19.23

In stock

92150

BOLT,5X16

92150-1802

1

$4.42

In stock

92152

COLLAR

92152-0824

1

$7.15

In stock

92153

BOLT,8X40

92153-0020

1
Out of stock

92154

BOLT,FLANGED,6X12

92154-2970

1

$0.88

In stock

92154A

BOLT

92154-3776

1

$4.69

In stock

92173

CLAMP

92173-2196

1

$14.93

In stock

92200

WASHER

92200-1615

1
Out of stock

92210

NUT

92210-0337

1
Out of stock
