2024 Kawasaki KX™250X Throttle Diagram

← All diagrams

Find the part on the Throttle diagram for your 2024 Kawasaki KX™250X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

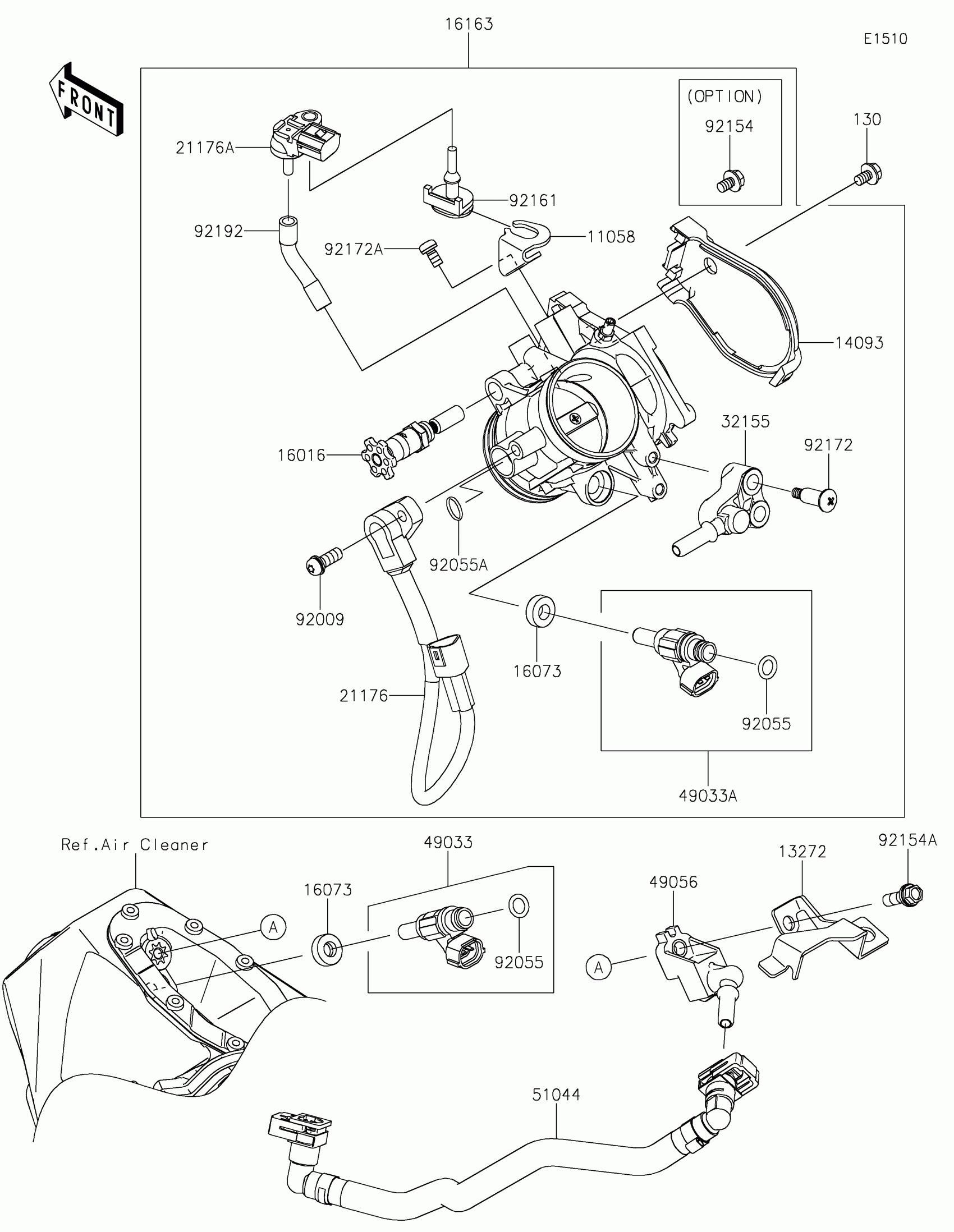

2024 Kawasaki KX™250X Throttle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET

11057-4080

1

$5.47

In stock

14093

COVER,THROTTLE DUST

14093-0431

1

$25.20

In stock

16016

PLUNGER

16016-0027

1

$45.30

In stock

16073

INSULATOR

16073-0129

1

$4.75

In stock

16163

THROTTLE-ASSY

16163-1243

1

$718.42

In stock

21176

1

$192.98

In stock

21176A

SENSOR,PRESSURE

21176-0906

1

$226.99

In stock

32155

PIPE,FUEL

32155-4104

1

$122.11

In stock

49033

NOZZLE-INJECTION

49033-0556

1

$138.26

In stock

49033A

NOZZLE-INJECTION

49033-0565

1

$135.42

In stock

49056

PIPE-INJECTION

49056-0048

1
Out of stock

49056A

PIPE-INJECTION

49056-0567

1

$14.61

In stock

92009

SCREW,THROTTLE SENSOR

92009-1981

1
Out of stock

92055

1

$2.42

In stock

92055A

RING-O

92055-1671

1

$3.29

In stock

92154

BOLT

92154-0133

1

$7.15

In stock

92154A

BOLT,FLANGED,5X8

92154-1021

1

$2.44

In stock

92161

DAMPER

92161-0673

1

$4.85

In stock

92172

1

$2.29

In stock

92172A

SCREW

92172-0393

1

$7.47

In stock

92192

TUBE,3.5X55

92192-2334

1

$23.02

In stock
