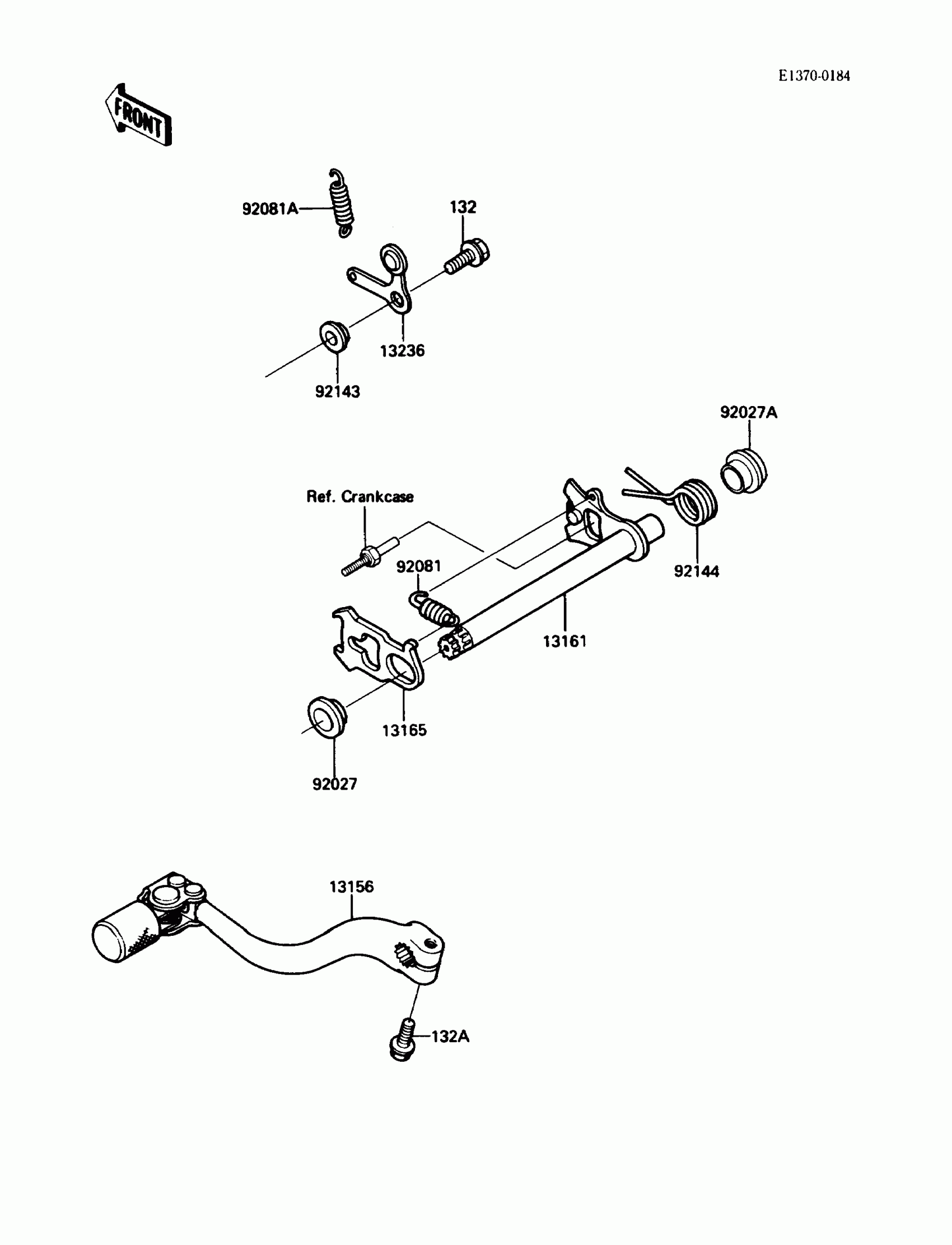

Kawasaki KX™250 Gear Change Mechanism Diagram

Description

Price

13156

LEVER-CHANGE,PEDAL

13156-1240

$131.65

13161

LEVER-COMP-CHANGE SHAFT

13161-1145

Unavailable

13165

PAWL,CHANGE LEVER

13165-1122

Unavailable

13236

LEVER-COMP,POSITION

13236-1155

Unavailable

92027

COLLAR,CHANGE SHAFT,L=5.5

92027-1512

Unavailable

92027A

COLLAR,RETURN SPRING

92027-1682

Unavailable

92081

SPRING,CHANGE LEVER

92081-076

$4.14

92081A

SPRING,CHANGE DRUM LEVER

92083-012

$3.54

92143

COLLAR

92143-1055

$5.61

92144

SPRING,CHANGE SHAFT RETURN

92144-1142

$10.26

132

BOLT-FLANGED-SMALL,6X16

132G0616

Unavailable

132A

BOLT-FLANGED-SMALL

132G0625

Unavailable
