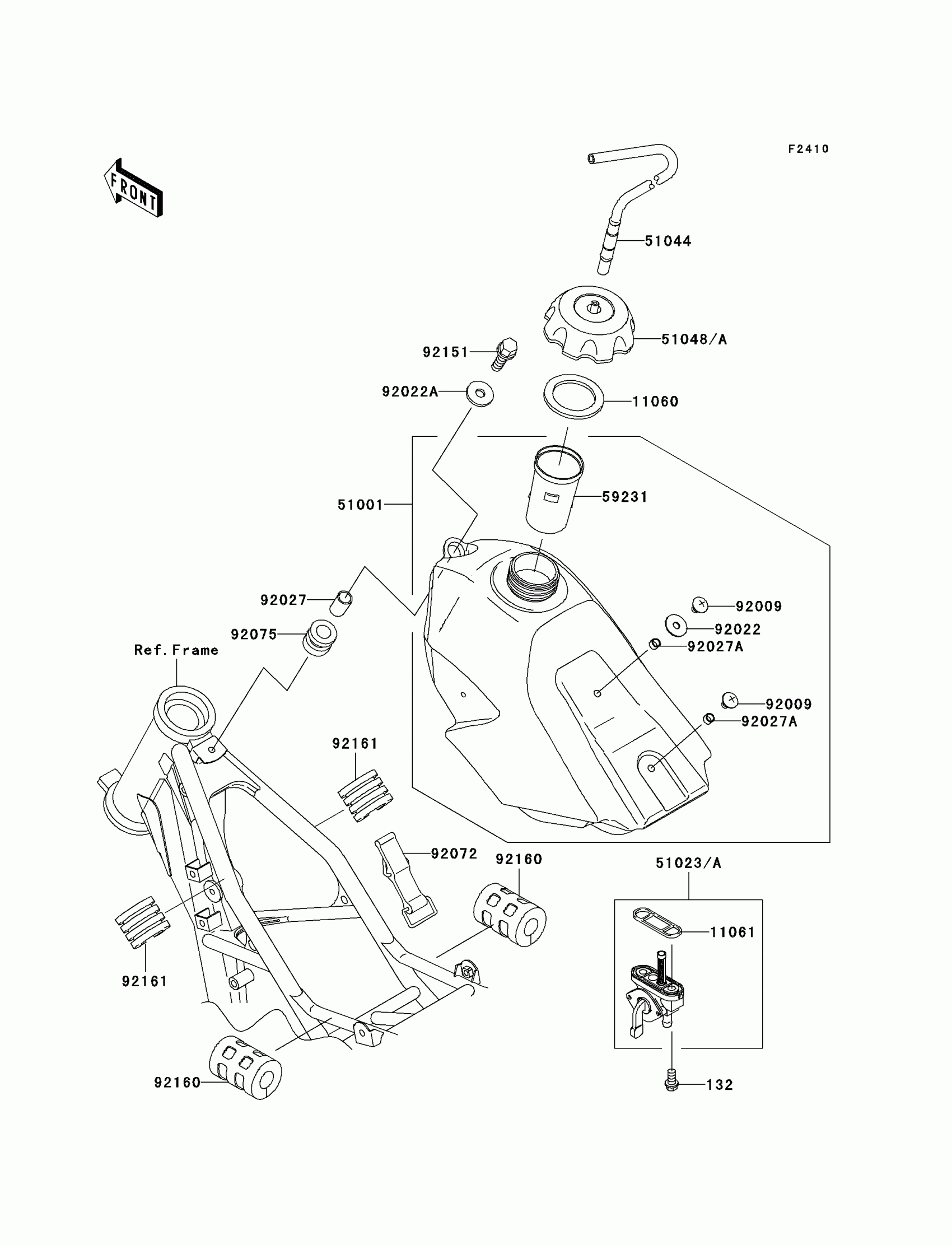

Kawasaki KX™100 Fuel Tank Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$0.97

11060

GASKET,FUEL TANK CAP

11060-1340

$4.64

11061

GASKET,FUEL TAP

11061-0181

$4.75

51001

TANK-COMP-FUEL,F.BLACK

51001-1677-6Z

$545.31

51023A

TAP-ASSY,FUEL

51023-0024

$64.10

51044

TUBE-ASSY

51044-0025

$18.44

51048

CAP-ASSY-TANK,FUEL

51048-0014

$47.94

59231

FILLER

59231-1096

$5.37

92009

SCREW,6X10

92009-1530

$2.99

92022

WASHER,PLAIN,6.5X20X1

92022-165

$3.29

92022A

WASHER,6.5X24X2

92022-1690

$2.99

92027

COLLAR,6.8X10X14

92027-1966

$4.42

92027A

COLLAR,6.2X7.8X5

92027-2096

$0.48

92072

BAND,FUEL TANK

92072-1229

$9.68

92075

DAMPER

92075-1787

$4.93

92151

BOLT,FLANGED-SMALL,6X25

92151-1930

$1.98

92160

DAMPER,FUEL TANK

92160-1236

$16.98

92161

DAMPER,FUEL TANK

92161-1175

$4.98
