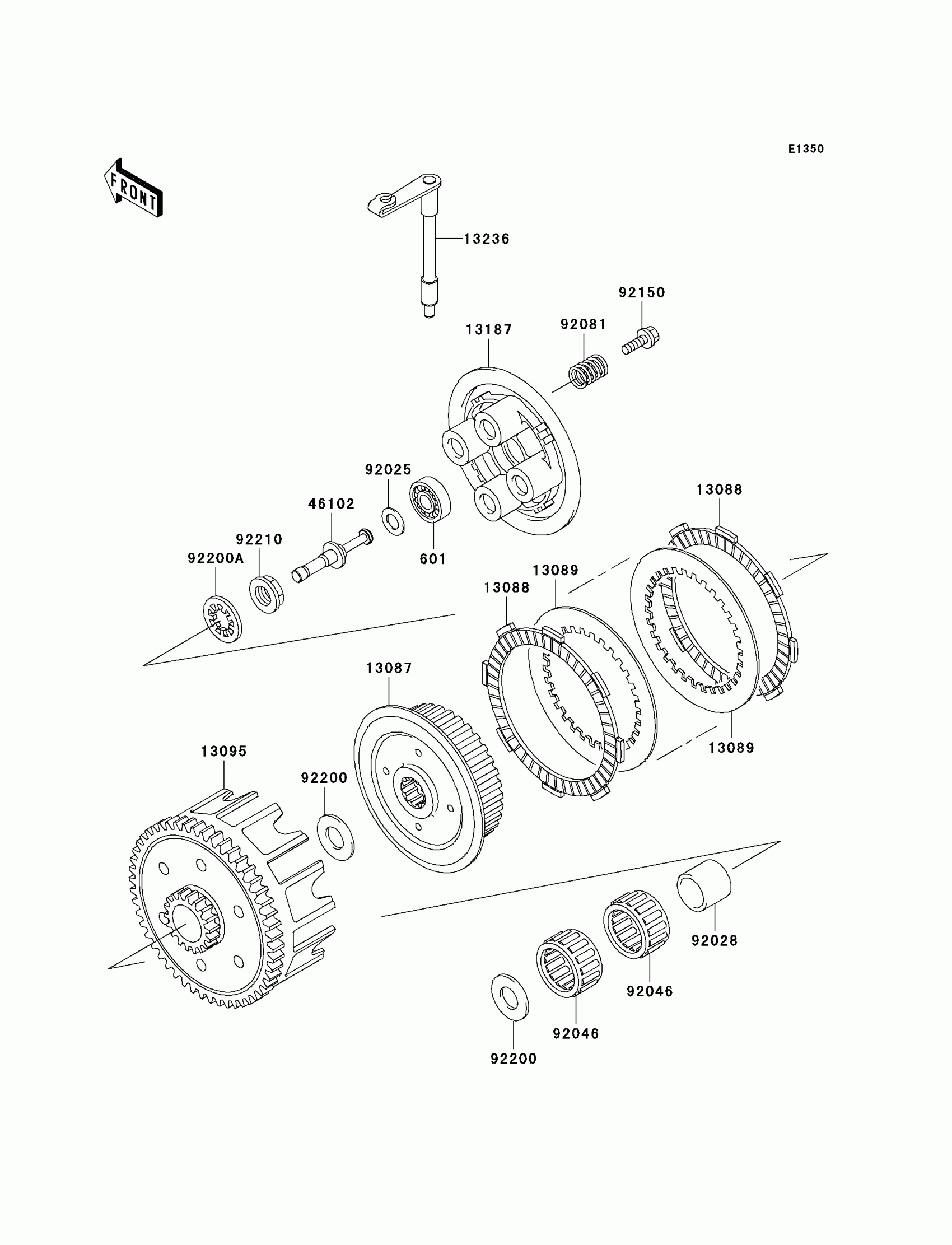

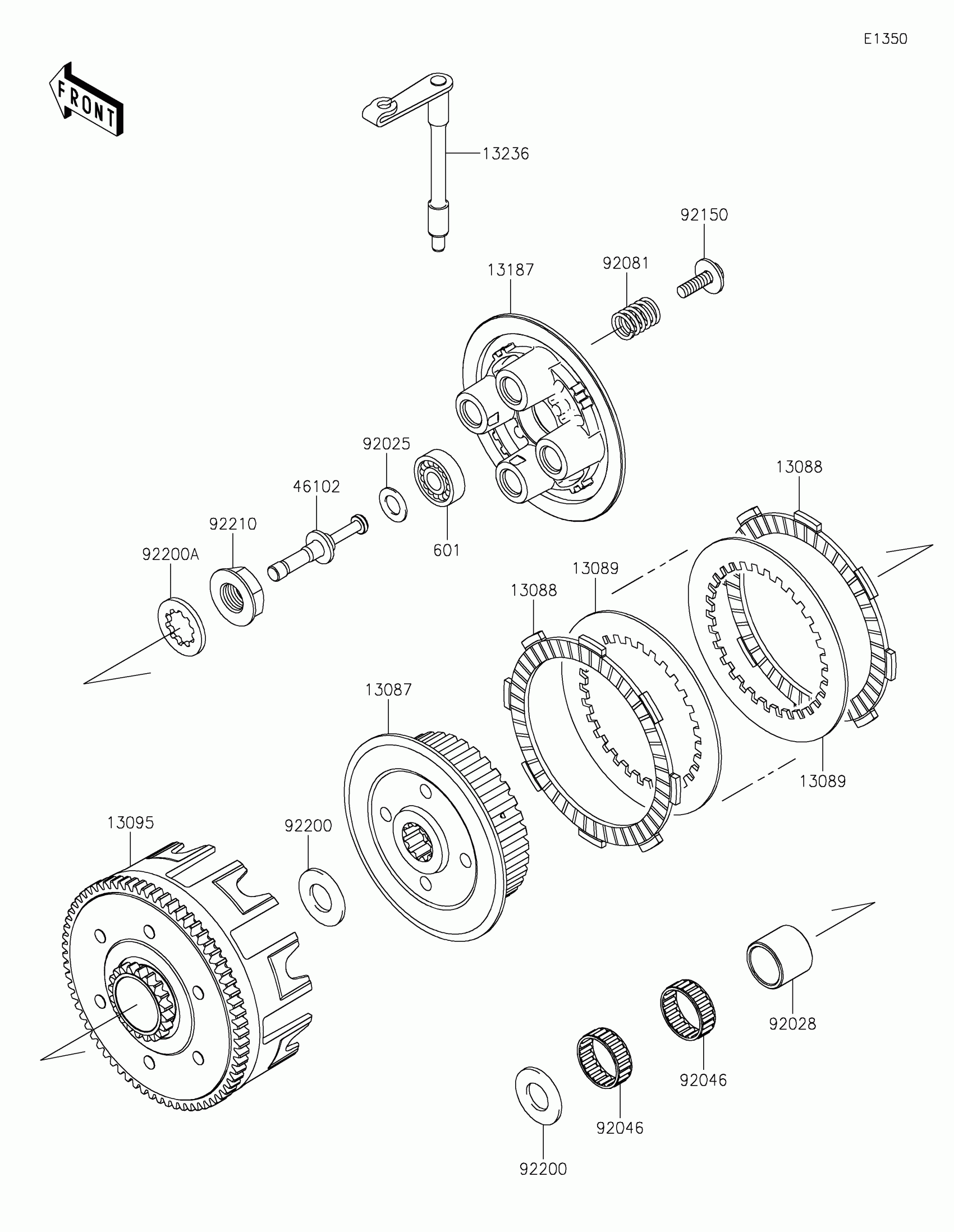

Find the part on the Clutch diagram for your 2009 Kawasaki KX™100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Kawasaki KX™100 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

601

BEARING-BALL

601A6001

1

$9.26

In stock

13087

HUB-CLUTCH

13087-1170

1

$61.36

In stock

13088

PLATE-FRICTION

13088-1016

1

$11.01

In stock

13089

PLATE-CLUTCH

13089-1120

1

$6.62

In stock

13095

HOUSING-COMP-CLUTCH

13095-1406

1

$250.96

In stock

13187

1

$44.43

In stock

13236

LEVER-COMP,RELEASE

13236-1298

1
Out of stock

46102

ROD,CLUTCH RELEASE

46102-1409

1

$18.91

In stock

92025

SHIM

92025-1780

1
Out of stock

92028

BUSHING,20X25X21.1

92028-1811

1

$13.61

In stock

92046

BEARING-NEEDLE,KT252910EG

92046-1254

1
Out of stock

92081

SPRING,CLUTCH

92081-1492

1

$5.88

In stock

92150

BOLT,6X20,WASHER

92150-1715

1

$3.14

In stock

92200

WASHER,20.3X33X2.0

92200-1351

1
Out of stock

92200A

WASHER,20X30X2.6

92200-1352

1
Out of stock

92210

NUT,16MM

92210-1113

1
Out of stock
