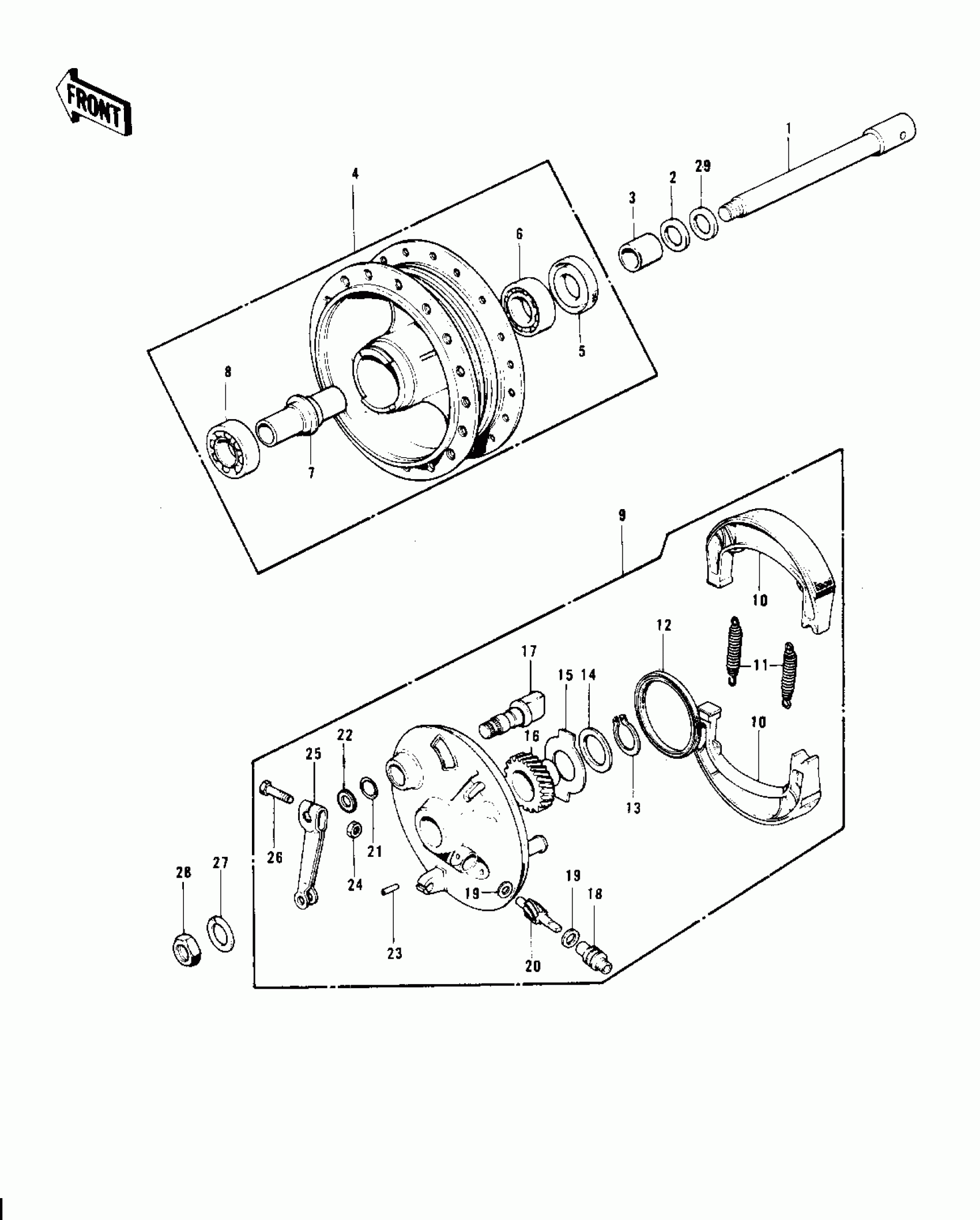

Kawasaki KV100-A7 FRONT HUB/BRAKE ('70-'73) Diagram

#

Description
Price

1

AXLE,FR

41068-039

Unavailable

2

DUST SHIELD FRNT DRUM

41042-002

Unavailable

3

COLLAR FRONT HUB R.H

41069-002

Unavailable

4

DRUM-ASSY,FR BRK

41034-1040

Unavailable

4

DRUM-ASSY,FR BRK

41034-1040

Unavailable

5

OIL SEAL FRONT DRUM

92050-003

Unavailable

6

BEARING BALL #6200

601B6200

$14.07

7

COLLAR,L=51

41039-002

$10.54

8

BEARING BALL #6300Z

601B6300Z

Unavailable

9

PANEL-ASY,FR BRK BUFF

41035-071-80

Unavailable

9

PANEL-ASY,FR BRK BUFF

41035-071-80

Unavailable

10

SHOE-BRAKE

41048-1085

$18.19

11

SPRING,BRAKE SHOE

92081-1766

$6.13

12

SEAL-OIL,BRAKE PANEL

92050-002

$13.88

13

CIRCLIP-TYPE-C,15MM

480J1500

$1.60

14

WASHER SPEED GR THRST

41065-002

$2.80

15

RECIEVER SPEED GEAR

41064-002

$1.85

16

GEAR SPEEDOMETER

41059-006

$18.58

17

CAM-BRAKE

41050-018

$21.98

18

BUSH SPEEDMETER CABLE

41062-001

$10.00

19

WASHER,5.1X9X0.4

41063-001

$4.17

20

GEAR-METER SCREW,8T

41060-004

$20.37

21

RING-O,BRAKE CAM

92055-004

$4.25

22

WASHER BRAKE CAM SHT

41052-001

Unavailable

23

PIN,SPRING

41082-001

$3.53

24

NUT,6MM

41072-007

$2.99

25

LEVER-BRAKE CAM

41053-005

$11.74

26

BOLT-UPSET

112G0630

Unavailable

27

WASHER SPRING 10MM

461F1000

Unavailable

28

NUT,10MM

42045-005

$6.08

29

WASHER-PLAIN,10MM

411B1000

Unavailable
