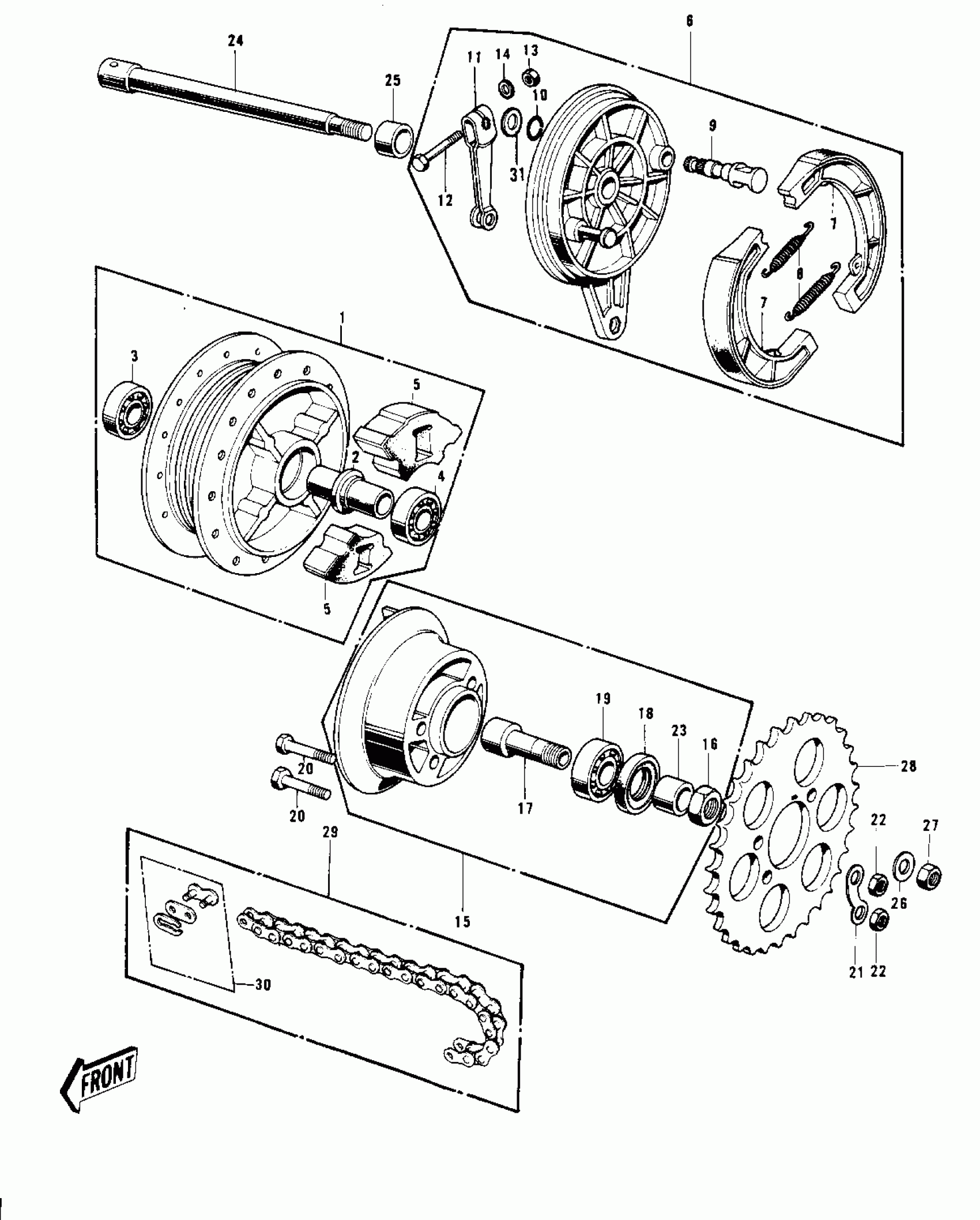

Kawasaki KV100-A7 REAR HUB/BRAKE/CHAIN ('70-'73) Diagram

#

Description
Price

1

DRUM ASSY,RR BRK,BUFF

42005-031-80

$215.31

1

DRUM ASSY,RR BRK,BUFF

42005-031-80

$215.31

2

COLLAR,L=58

42010-005

$12.19

3

BEARING BALL #6301Z

601B6301Z

Unavailable

4

BEARING-BALL,#6201C3

601B6201

$10.56

5

DAMPER,RR HUB SHOCK

42014-016

Unavailable

6

PANEL ASSY-REAR BRAKE

42006-014

$71.37

6

PANEL-ASY,RR BRK,BLK

42006-027-21

$66.32

7

SHOE-BRAKE

41048-1085

$18.19

8

SPRING,BRAKE SHOE

92081-1766

$6.13

9

CAM-BRAKE

41050-018

$21.98

10

RING-O,BRAKE CAM

92055-004

$4.25

11

LEVER,FRONT BRAKE CAM

41053-002

Unavailable

11

LEVER-REAR BRAKE CAM

42029-022

$11.42

12

BOLT-UPSET

112G0630

Unavailable

13

NUT 6MM

311B0600

Unavailable

14

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

15

COUPLING ASSY RR HUB

42033-011

$133.61

16

NUT,16MM

42045-004

$8.39

17

SLEEVE-RR HUB COUPLNG

42036-002

$32.34

18

SEAL-OIL,COUPLING

92052-003

Unavailable

19

BEARING-BALL,#6203C3

601B6203

$10.67

20

BOLT,HUB SPROCKET,10X36

92001-082

$2.42

21

WASHER,LOCK

92088-011

$4.51

22

NUT-HEX-FINE,10MM

315B1000

Unavailable

23

COLLAR,17X25X12.5

42037-003

$13.03

24

AXLE,12X215

41068-1109

$41.39

24

AXLE,12X215

41068-1109

$41.39

25

COLLAR-REAR HUB R.H

42032-002

Unavailable

26

WASHER-PLAIN-SMALL,12MM

410B1200

Unavailable

27

NUT,10MM

42045-005

$6.08

28

REAR SPROCKET 42T

42041-076

Unavailable

28

SPROCKET-HUB,40T

42041-1095

$49.82

29

UNAVAILABLE IN PRICE BOOK

92057-042

Unavailable

30

JOINT-CHAIN

92058-1015

Unavailable

31

WASHER BRAKE CAM SHT

41052-001

Unavailable
