1981 Kawasaki KM100 Kickstarter Mechanism Diagram

← All diagrams

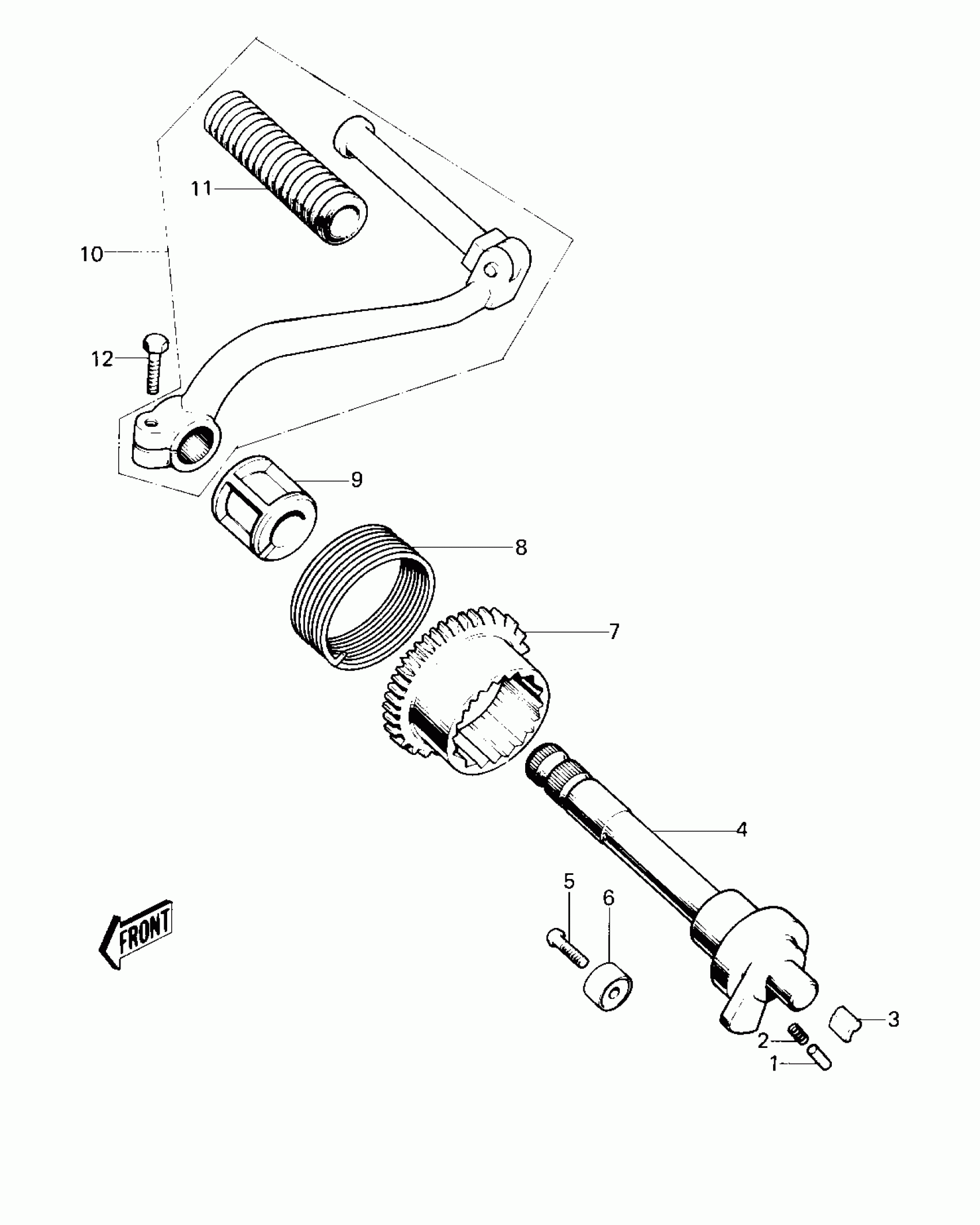

Find the part on the Kickstarter Mechanism diagram for your 1981 Kawasaki KM100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Kawasaki KM100 Kickstarter Mechanism Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PIN,DOWEL,3.9X10.8

92043-013

1

$4.08

In stock

2

SPRING,KICK PAWL

92081-014

1

$4.32

In stock

3

PAWL,KICKSTARTER

13069-005

1

$14.12

In stock

4

SHAFT-KICK

13066-1022

1
Out of stock

4

SHAFT-KICK

13066-1022

1
Out of stock

5

1

$1.98

In stock

6

1

$9.66

In stock

7

1

$79.07

In stock

8

1

$11.58

In stock

9

GUIDE KICK SPRING

13070-003

1
Out of stock

10

PEDAL, KICKSTARTER

13064-007

1
Out of stock

11

DAMPER,PEDAL

13063-002

1

$3.58

In stock

12

BOLT-SMALL-UPSET 8X25

115G0825

1
Out of stock
