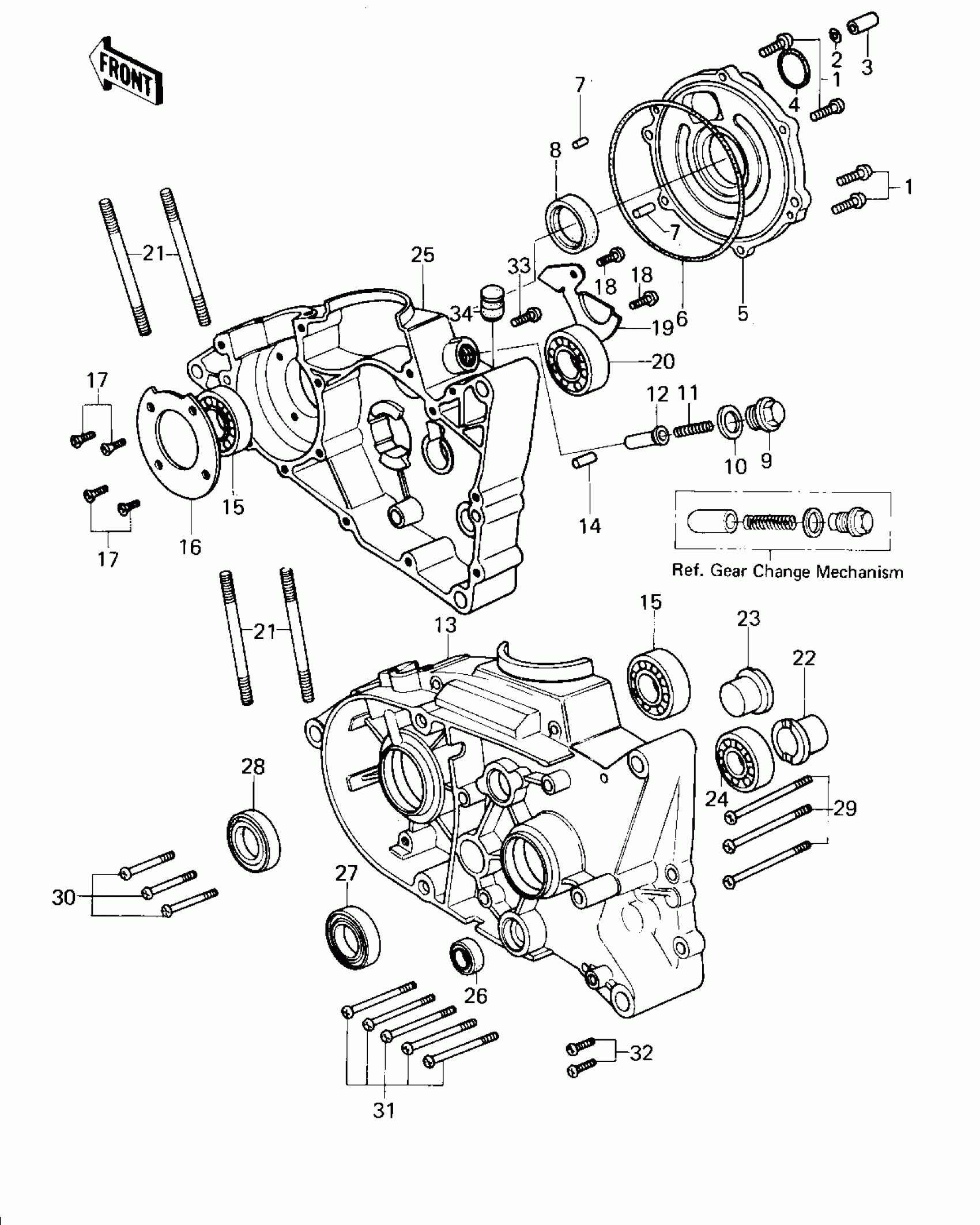

Find the part on the Crankcase diagram for your 1981 Kawasaki KM100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Kawasaki KM100 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$4.61

In stock

2

RING-O,7.8X3.5

92055-029

1

$3.65

In stock

3

PIN,DOWEL,8X16

92042-017

1

$5.10

In stock

4

O RING,26MM

670B3026

1

$4.06

In stock

5

COVER,ROTARY DISC VALVE

14019-056

1
Out of stock

6

RING-O,100MM

92055-010

1

$7.95

In stock

7

ROLLER,5X12

610A0512

1

$4.53

In stock

8

SEAL-OIL

92049-1250

1
Out of stock

9

1

$4.98

In stock

10

GASKET,NEUTRAL

11009-1003

1
Out of stock

11

1

$2.78

In stock

12

PIN

92043-085

1
Out of stock

13

CRANKCASE,L.H.

14002-1072

1
Out of stock

13

CRANKCASE,L.H.

14002-1072

1
Out of stock

14

PIN DOWEL 8X16

551A0816

1

$1.14

In stock

15

1

$10.76

In stock

15

BEARING-BALL,#6204

92045-1032

1

$23.71

In stock

16

PLATE-POSITION

14014-017

1
Out of stock

17

1

$0.63

In stock

18

SCREW PAN HEAD 6X12

220B0612

1
Out of stock

19

PLATE-POSITION

14014-008

1
Out of stock

20

1

$13.33

In stock

21

BOLT-STUD,8X115

172G08115

1
Out of stock

22

BUSHING,L=14

92028-069

1
Out of stock

23

BUSHING,L=23.5

92028-025

1

$40.77

In stock

24

1

$9.84

In stock

25

CRANK CASE,R.H

14002-1017

1
Out of stock

25

CRANKCASE,RH

14002-1205

1
Out of stock

26

SEAL-OIL,SB12205

92049-004

1
Out of stock

27

SEAL-OIL,SC25376

92050-013

1
Out of stock

28

SEAL-OIL

92049-1240

1
Out of stock

29

SCREW PAN HEAD 6X65

220B0665

1
Out of stock

30

SCREW-PAN-CROS,6X60

220B0660

1
Out of stock

31

SCREW PAN HEAD 6X40

220B0640

1
Out of stock

32

SCREW PAN HEAD 6X25

220B0625

1
Out of stock

33

1

$4.61

In stock

14

PLUG,15X19

92074-035

1

$5.97

In stock
