1981 Kawasaki KM100 Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1981 Kawasaki KM100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

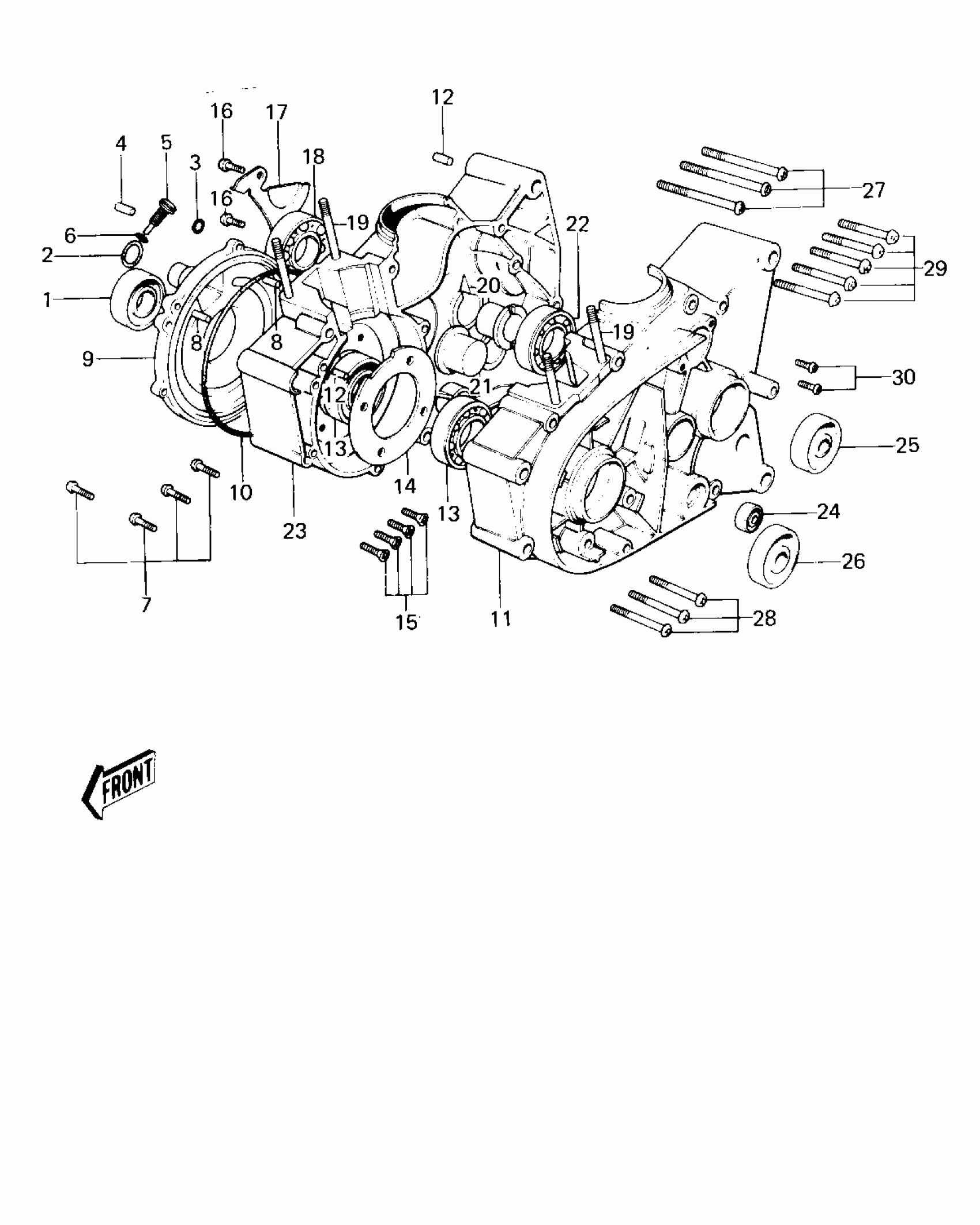

1981 Kawasaki KM100 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAL-OIL

92049-1250

1
Out of stock

2

O RING,26MM

670B3026

1

$4.06

In stock

3

RING-O,7.8X3.5

92055-029

1

$3.65

In stock

4

PIN,DOWEL,8X16

92042-017

1

$5.10

In stock

5

NOZZLE OIL INJECTION

92062-004

1
Out of stock

6

"0" RING,5MM

92055-011

1
Out of stock

7

1

$4.61

In stock

8

ROLLER,5X12

610A0512

1

$4.53

In stock

9

COVER ROTARY DISC VLV

14019-032

1
Out of stock

9

COVER,ROTARY DISC VALVE

14019-056

1
Out of stock

10

RING-O,100MM

92055-010

1

$7.95

In stock

11

CRANKCASE,L.H.

14002-1072

1
Out of stock

12

PIN DOWEL 8X16

551A0816

1

$1.14

In stock

13

1

$10.76

In stock

14

PLATE-POSITION

14014-017

1
Out of stock

15

1

$0.63

In stock

16

SCREW PAN HEAD 6X12

220B0612

1
Out of stock

17

PLATE-POSITION

14014-008

1
Out of stock

18

1

$13.33

In stock

19

BOLT-STUD,8X115

172G08115

1
Out of stock

20

BUSHING,L=14

92028-069

1
Out of stock

21

BUSHING,L=23.5

92028-025

1

$40.77

In stock

22

1

$9.84

In stock

23

CRANKCASE,R.H

14003-063

1
Out of stock

24

SEAL-OIL,SB12205

92049-004

1
Out of stock

25

SEAL-OIL,SC25376

92050-013

1
Out of stock

26

SEAL-OIL

92049-1240

1
Out of stock

27

SCREW PAN HEAD 6X65

220B0665

1
Out of stock

28

SCREW-PAN-CROS,6X60

220B0660

1
Out of stock

29

SCREW PAN HEAD 6X40

220B0640

1
Out of stock

30

SCREW PAN HEAD 6X25

220B0625

1
Out of stock
