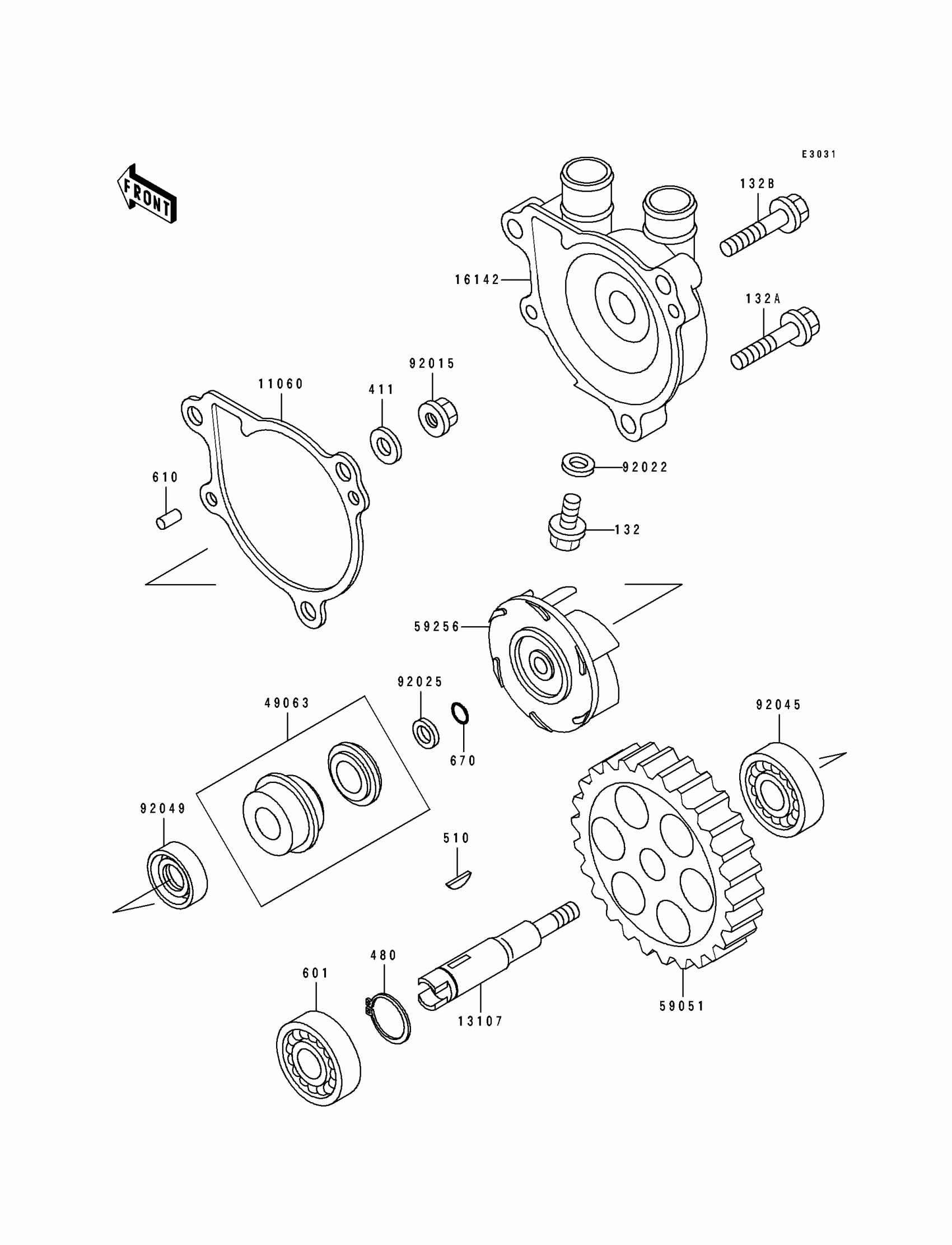

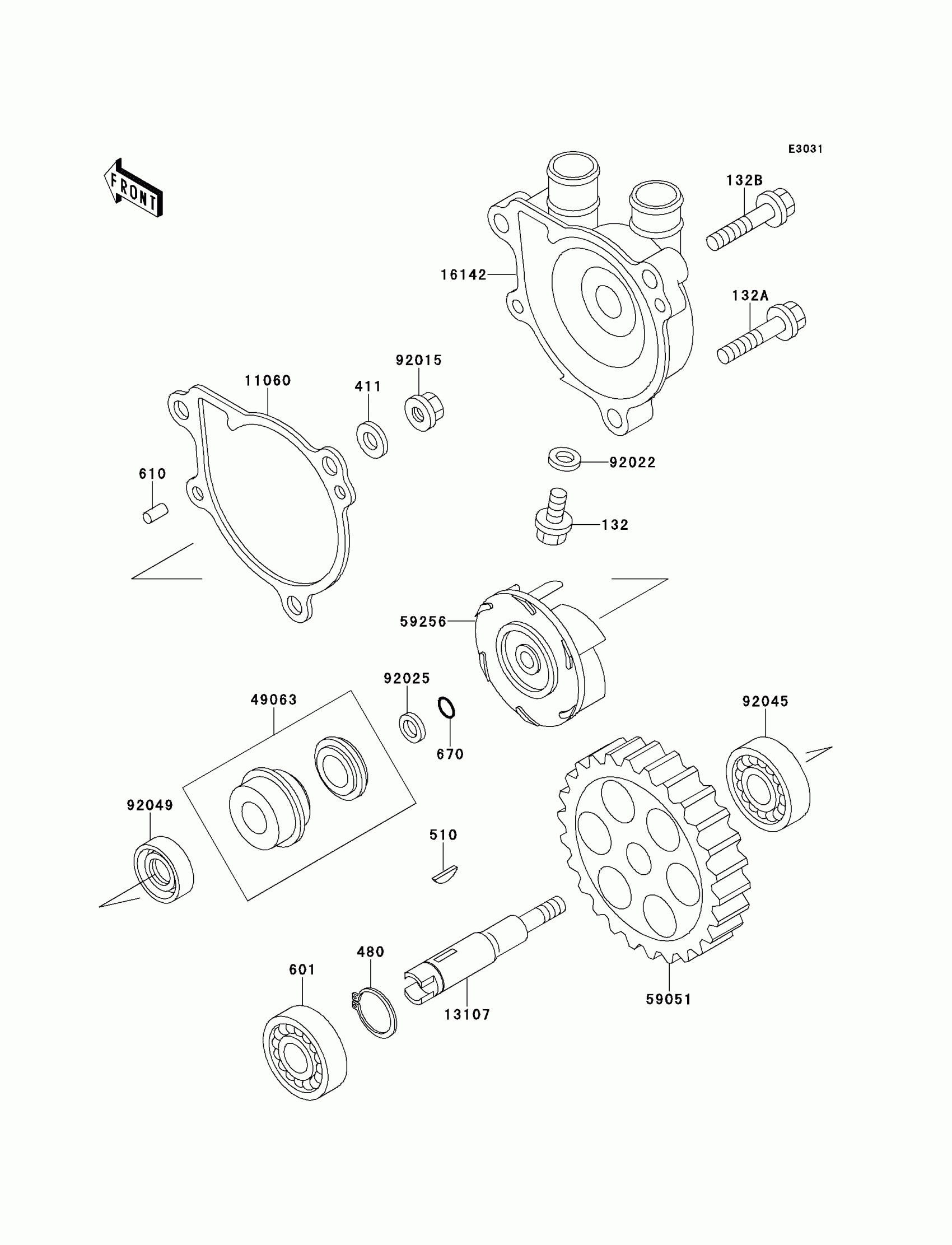

Kawasaki KLX650R Water Pump Diagram

#

Description
Price

11060

GASKET,WATER PUMP COVER

11060-1114

$6.13

13107

SHAFT,WATER PUMP

13107-1305

Unavailable

16142

COVER-PUMP

16142-1122

Unavailable

49063

SEAL-MECHANICAL

49063-1054

$12.56

59051

GEAR-SPUR,37T

59051-1284

Unavailable

59256

IMPELLER

59256-1055

$27.07

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92022

WASHER,6.2X11X1

92022-304

$2.76

92025

SHIM,T=0.8

92025-1503

$2.23

92045

BEARING-BALL,6901

92045-1246

$26.33

92049

SEAL-OIL,SC 12X22X5

92049-1228

$7.08

132

BOLT-FLANGED-SMALL

132Y0608

Unavailable

132A

BOLT-FLANGED-SMALL,6X30

132Y0630

Unavailable

132B

BOLT-FLANGED-SMALL,6X35

132Y0635

Unavailable

411

WASHER PLAIN

411F0600

$0.95

480

CIRCLIP-TYPE-C,12MM

480J1200

$0.59

510

KEY-WOODRUFF

510A3100

$1.87

601

BEARING-BALL

601A6001

$8.88

610

ROLLER,4X8

610A0408

$3.29

670

O RING,6MM

670B1506

$0.98
