1995 Kawasaki KLX650R Air Cleaner Diagram

← All diagrams

Find the part on the Air Cleaner diagram for your 1995 Kawasaki KLX650R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

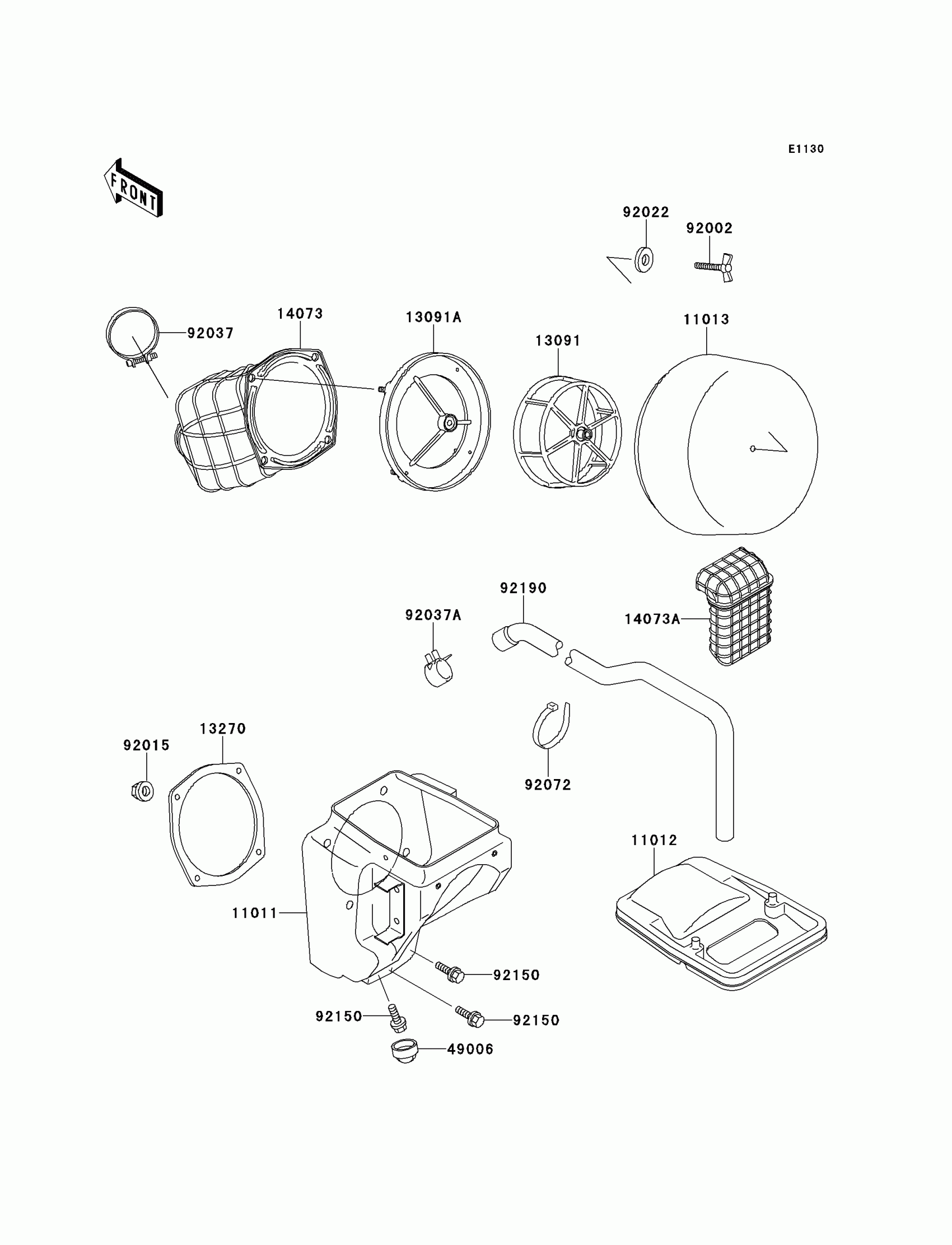

1995 Kawasaki KLX650R Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11011

CASE-AIR FILTER

11011-1421

1
Out of stock

11012

CAP,AIR FILTER

11012-1856

1

$65.00

In stock

11013

ELEMENT-AIR FILTER

11013-1196

1
Out of stock

13091

HOLDER,ELEMENT

13091-1454

1

$46.60

In stock

13091A

HOLDER,ELEMENT

13091-1835

1

$44.52

In stock

13270

PLATE,DUCT FITTING

13270-1284

1
Out of stock

14073

DUCT,AIR FILTER

14073-1527

1
Out of stock

14073A

DUCT,AIR INTAKE

14073-1576

1
Out of stock

49006

BOOT

49006-1248

1
Out of stock

92002

BOLT,WING

92002-1719

1
Out of stock

92015

NUT,FLANGED,5MM

92015-1656

1

$2.59

In stock

92022

WASHER,6.5X20X1.6

92022-125

1

$1.25

In stock

92037

CLAMP

92037-1859

1

$6.88

In stock

92037A

CLAMP

92037-1860

1
Out of stock

92072

BAND,L=365

92072-1197

1

$7.71

In stock

92150

BOLT,FLANGED,6X16

92150-1506

1

$3.97

In stock

92190

TUBE,BREATHER

92190-1386

1
Out of stock
