1995 Kawasaki KLX650R Cylinder/piston Diagram

← All diagrams

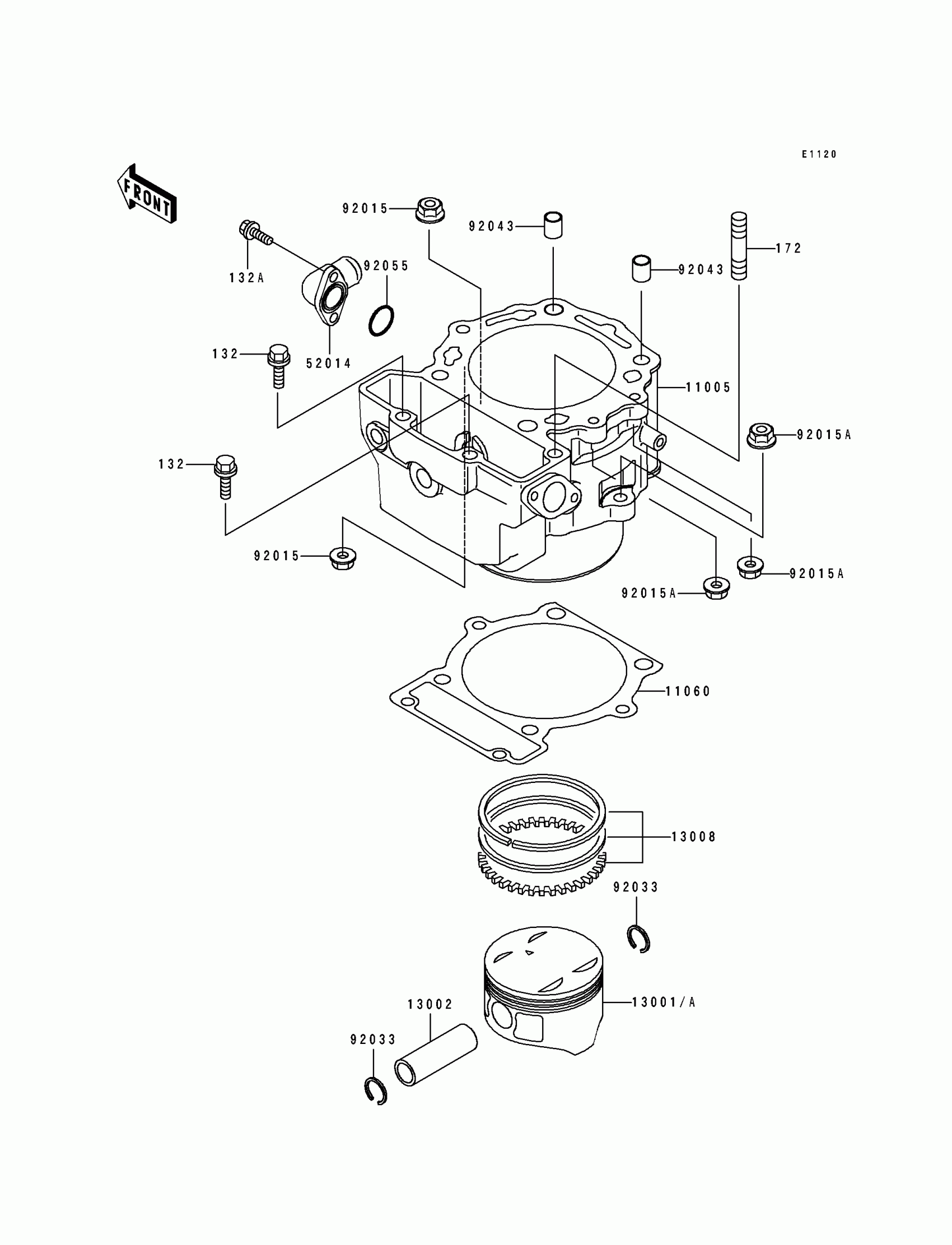

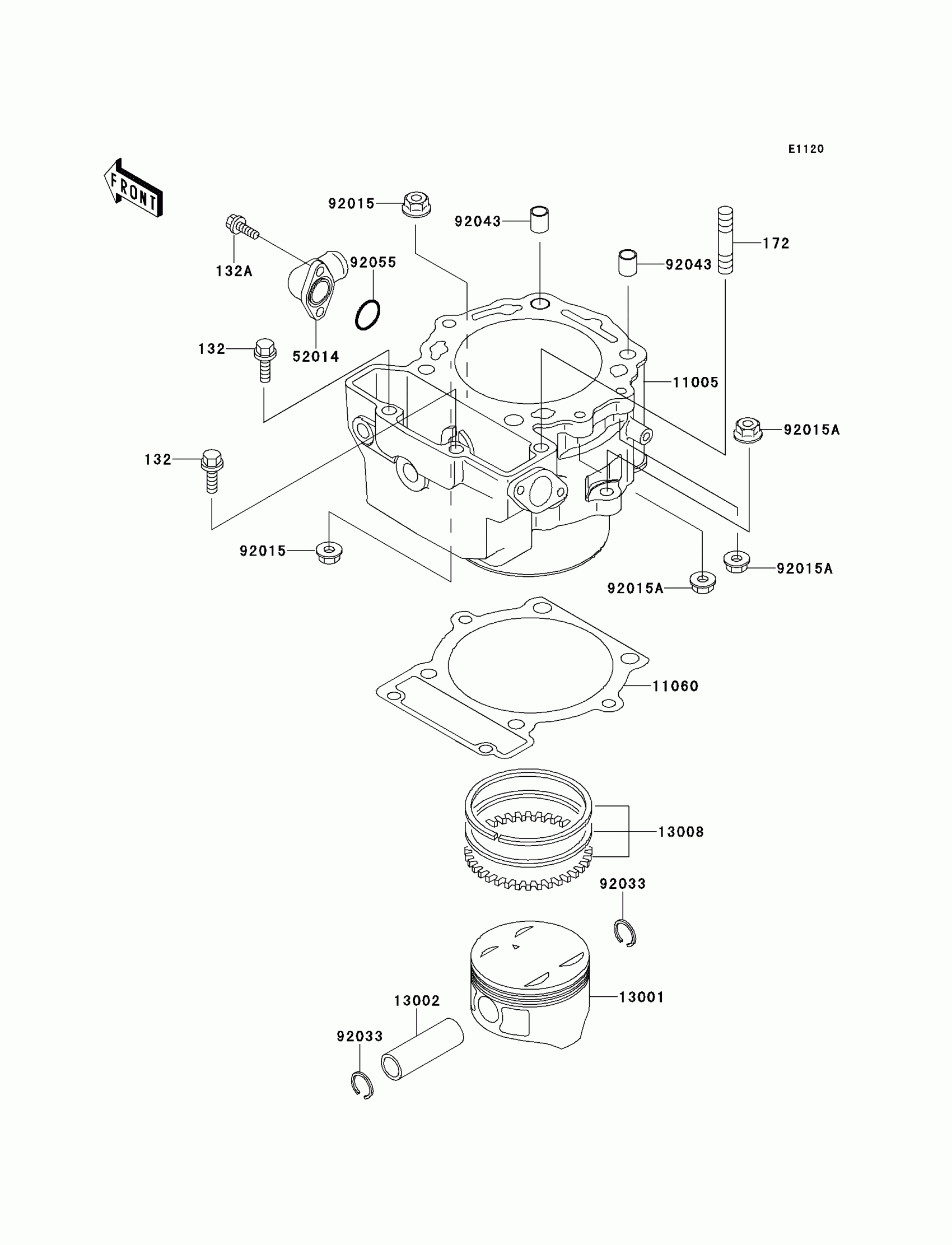

Find the part on the Cylinder/piston diagram for your 1995 Kawasaki KLX650R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Kawasaki KLX650R Cylinder/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11005

CYLINDER-ENGINE

11005-1719

1
Out of stock

11060

GASKET,CYLINDER BASE

11060-1292

1
Out of stock

13001A

PISTON-ENGINE

13001-1438

1
Out of stock

13002

PIN-PISTON

13002-1101

1
Out of stock

13008

RING-SET-PISTON

13008-1156

1
Out of stock

52014

ELBOW

52014-1065

1
Out of stock

92015

NUT,6MM

92015-1365

1
Out of stock

92015A

NUT,8MM

92015-1402

1
Out of stock

92033

RING-SNAP

92033-1226

1
Out of stock

92043

PIN,10.1X12X14

92043-4009

1
Out of stock

92055

RING-O,19.5X1.5

92055-055

1
Out of stock

132

BOLT-FLANGED-SMALL,8X25

132G0825

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X14

132Y0614

1
Out of stock

172

BOLT-STUD,8X20

172G0820

1
Out of stock
